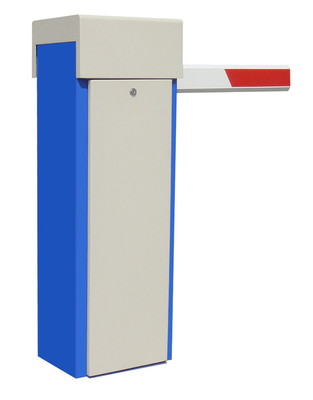

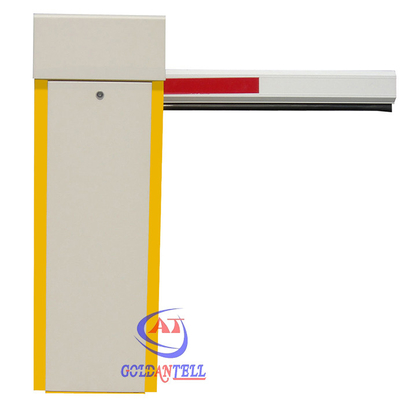

Low Maintenance Heavy Duty Parking Boom Barrier for Airport Shopping Mall





Low Maintenance Heavy Duty Parking Boom Barrier for Airport



Shopping Mall





1 General description



We are specialized in manufacturing integreted intelligent barrier gate. With international advanced



technology, we realize the automatization & intellectualization of barrier gate, which could be operated



safely, conveniently and quickly.





2 Characteristics



a. Speical movement mechanism, with no gear or belt; no need for maintenance; stable performance and



long life-span



b. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.



c．Avoid vibrating caused by boom’s running;



d．Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by



abnormal failures.



e．Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick heat-



radiation;



f．Intelligent over-heat protection system for driving mechanism, to control motor’s temperature and avoid



damaging easily during frequent usage.





3 Technical parameters



a. Power supply:AC220V±10%50HZ AC110V±10%50HZ/60HZ



b. Working temperature:-40℃～85℃



c. Rated power:70W/150W



d. Relative humidity:≥90%



e.size: 340*280*1030mm





4 Safety notes



a. During running, do not open the case-cover or case-door, to avoid accident.



b. Normally, users can not change the wire layout inside barrier gate. Please just connect the gate with



220V power supply.



c. The power supply system should be equipped with leakage breaker (≥10A).



d. During arm going down, do not place anything under the booms; and no body is allowed to standing or



walking under the boom.



e．When power cuts, first, turn off the power connection; then adjust the boom to vertical position by



turning the manual swing manually.



f. Normally, do not increase or decrease the length or weight of the boom, to avoid losing balance. If



necessary, professional staff is required.



g. Normally, do not adjust positions of mechnical limit switch or photoelectrilimit switch.







5 Specification:



Type	Model: GAT-P37
Operation time	1.8s, 3s, 5s, 6s Customized
Arm Type	Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy Folding Arm: 90 or 180 degree folding arm, max 5 meters, aluminum alloy
Material	Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy duty Coated with epoxy paint for weatherproof protection
Size	350*280*1070mm
Spring And Bearing	Heat Treatment: more durable, more than 5 million times through operation testing
Rating Power	80W
Rating Voltage	AC 220V/110V±10%, 50/60HZ
Remote Control Distance	less than 50 meters
Packing Size	430*360*1150mm , strong carton case with cushion inside with air bubble film for protection,outside with a crate package
G.W	60 KG
Delivery	By Sea: big order(more than 100 sets), Cheap, suggested If urgent, can be delivery by Airplane or express
Payment	Sample: full payment Order: usually 30%-40% advance deposite, balance before shipment
Advantages	1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 9 years OEM/ODM experience 3. quick response for handling problems
Application	Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It can also be customized to beused together with any auto-pay ticketing parking or access control system







7 Common problems & solutions



Common problem	Analysis	Solution
When motor running, the boom does not work.	the key-pin of main shaft of motor drops bending-arm of mechanism part breaks-down	1. open the motor and refix the key-pin 2. dismount the mechanism part and replace the bending-arm
The arm vibrates during moving-down or reaching its horizontal position	1. Non-balance caused by weak spring tension; 2. Arm’s screws are loose; 3. The case is not fixed well.	1. replace the spring according to the Matching table of starndard spring or change hanging-hole’s position; or adjust the connection screw-rod of the spring to correct position; 2. fasten arm’s screws; 3. fasten the botls of the case;
The arm stops during movement.	wrong adjustment of limit switches too much spring tension	check the connection of limit switches and correct; (see connection drawing fordetails) replace the spring or change hanging-hole’s position;
Anti-collision fails	ground sensor or IR wire damages or wrong connection	Replace ground sensor or Irparts, correct the connection carefully according to the drawing;
The arm could not reach right position.	Wrong adjustment of limit switches	place the arm in horizontal orveritical position, adjust the photo-barrierto the middle of photoelectric switches till lightis on. Red light for reaching horizontal position; green light is for reaching vertical position;





























































































8 Why Coose Goldantell



1.One year's free servicing is supplied( not including the arm)

2. Lifetiom charged servicing is offered.

3. Technology servicing is supplied

The following situations are charged for servicing (or changing):

a. Broken by wrong installation.

b Broken by improper voltae.

c. The surfaces of the system destroyed by wrong installation our use.

4. Broken by natural disaster.

5. Overdue

6. Servicing items out of our promises.

The upgrade and improvement of the product won't be notified if there is any.

The explaining authority of this product instruction and service article belong to the production factory
