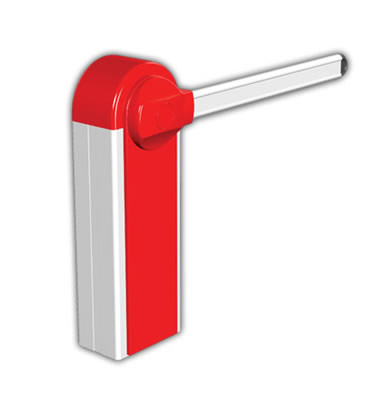

Cold-Rolled Steel Plate Automatic Boom Barrier Gate IP54 with RFID
Remote Control
Introduction of the Automatic Boom Barrier Gate
This equipment is controlled in wireless method, which makes its operation safe & convenient. What you
need to do is to connect the equipment with 220V power supply and earth the exterior case; then the
system could start working without any wire arrangement or matching.
The gate is equipped with multiple communication interfaces. It could be connected with vehicle-detector,
IR co-irradiator or other accessories, to meet the safety requirement; and charging system could also be
connected to realize automaitc management (optional).
Features of Automatic Boom Barrier Gate
1. Arm Material : aluminum alloy
2. Quality Powder coating,Unique surface treatment make the vibrant look,and strong UV resistance to
prevent color fading
3. Torque motor,steady,low noise,long life
4. This automatic barrier gate provides optional boom arm direction as leftward/rightward
5. This type of barrier gate for car parking system could match with direct boom( pole) , fold boom or
fence boom.
Advantages of Our Services
1 ) Products: All of the productions are acquired CE and ISO 9001-2008 Certificate, lifespan over 5 years
guarantee under properly working circumstances. Totally Excellent EXW Price with great after-sale
service.
2 ) Quality Control: All of the productions must go throught a full professional test procedure before the
shipment:
3 ) Powder coating Test > B. 48Hrs High temperature aging Test > C. 48Hrs Low temperature (-50° C),
Humidity aging Test.
The Low-Returning Rate: <1%.
4 ) Warranty: Provide 1 year of warranty, our specialist team do best to help you on the journey.
5 ) Various payment Terms: T/T, Western Union, payal etc.
6 ) Quick & Safe Delivery: Been specializing in this field for years, we have established many reliable
partners, Best freight and good service for the shipping, 24Hrs tracking make sure all the goods arrived
on time & safely.
7 ) Package: Strict package, all the products are in regular export strong package standard.
Specifications Sheet
|
Arm Type
|
Straight Arm
|
|
Arm material
|
aluminum alloy
|
|
Arm length
|
≤ 6.0m
|
|
Rail up or down time
|
3s-6s optional
|
|
Motor power
|
AC220/50Hz
|
|
Frequency
|
50~60Hz
|
|
Protection class
|
IP54
|
|
Operating temperature
|
-40 - 85°C
|
|
Operating humidity
|
≤ 90% non-condensing
|
|
Dimensions
|
345x295x1100mm
|
|
Material
|
1.8mm cold-rolled steel plate with water-proof and rust-proof coating
|
|
Communication Interface
|
Standard RS485
|
|
Communication Range
|
800-1200m
|
|
Functions
|
remote control
|
|
Anti-bumping function to protect cars and pedestrain
|
|
Solid and endurable structure, strong bearing capacity
|
|
Manual operating mode is provided
|
|
In case of electric failure or trouble,
it can manually operate the movable barrier to return to
|
|
the horizontal position
|
|
Certificates
|
CE and ISO 9001-2008
|
