Entrance And Exit Boom Barrier Gate , Cold Steel Intelligent Car Barrier Gate
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-P22 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Entrance And Exit Boom Barrier Gate | Rod Type | Straight/ Foldable/ Connenting / Extendable Rod |
|---|---|---|---|
| Size Of Product | 340*280*1050mm | Package Size | 420*360*1140mm |
| Weight | 58KG | Rail Length | 3- 6 Meter For Option |
| Material | Cold Rolled Mild Steel/stainless Steel | Power Supply | AC220V±10%50HZ AC110V±10%50HZ/60HZ |
| OEM | Size,Material,Logo | ||
| Highlight | retractable barrier gate,car park boom gates |
||
Product Description
Entrance And Exit Boom Barrier Gate , Cold Steel Intelligent Car
Barrier Gate
Specification
|
|
Rail material
|
Aluminum Alloy |
|
Power supply
|
AC220V±10%50 HZ AC110V±10%50 HZ/60 HZ |
|
|
Housing box material
|
cold rolled mild steel/stainless steel | |
|
Working temperature
|
-40℃～85℃ | |
|
size
|
340*280*1050mm | |
|
Rail length
|
1- 6 meter | |
|
Motor speed
|
30 r/min | |
| Control ways |
push button/remote control/access
|
|
| Housing color |
orange / blue/ yellow / red
|
|
| MCBF |
≥5,000,000 times
|
|
| Working environments |
indoor, outdoor
|
|
| Relative humidity |
≤90% no condensing
|
|
|
Rated power
|
70 W/150 W
|
|
| Traffic light |
optional
|
|
| Bumping bounce back |
N/A
|
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Technical Data
Mode (WJDZ): 102-11, 102-13, 102-16
Running time: 1s, 3s, 6s
Boom type: straight
Max Boom length: 3m, 4.5m, 6m
Boom dimension (WxH): 45x80mm
Boom weight: 3kg, 4.5kg, 6kg
Voltage: 220V ± 10%,110V ± 10%
Frequency: 50/60Hz
Motor voltage: 220V
Power: 120W
Working temperature: -20~75
Protection grade: IP54
Use & operation safety notes
1. During arm going down, do not place anything under the booms; and no body is allowed to standing or
walking under the boom.
2. Normally, do not adjust positions of mechanical limit switch or photo electric limit switch.
3. When power cuts, first, turn off the power connection; then adjust the boom to vertical position by
turning the manual swing manually.
4. Normally, users can not change the wire layout inside barrier gate. Please just connect the gate with
220V power supply.
5. The power supply system should be equipped with leakage breaker (≥10A).
6. Normally, do not increase or decrease the length or weight of the boom, to avoid losing balance. If
necessary, professional staff is required.
7. During running, do not open the case-cover or case-door, to avoid accident.
Characteristics
1. Avoid vibrating caused by boom’s running;
2. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal
failures.
3. Special movement mechanism, with no gear or belt; no need for maintenance; stable performance and
long life-span
4. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and avoid
damaging easily during frequent usage.
Our service
1. All items have 24 month quality guarantee.
2. Custom design shape and logo, for large amount, custom logo available for free.
3. Supported by professional engineers.
4. Special discount of our distributors or agents in their area.
5. Packing in standard export carton, suggest you pack it by wooden case to protect the products
6. CE, ROSH available.
7. Friendly and professional customer service people help you in 16 hours.
Project schemes:
1. Except the product, also offer the RFID card reader control system.
2. Only the boom barrier gate, you can use the button or remote controller to control it.
3. We offer a complete set of the tolling parking system, including barrier gate, ballot boxes, vehicle
detector,Entrance control system main board, System special switching power supply, parking lot system
management software with dongle , etc.

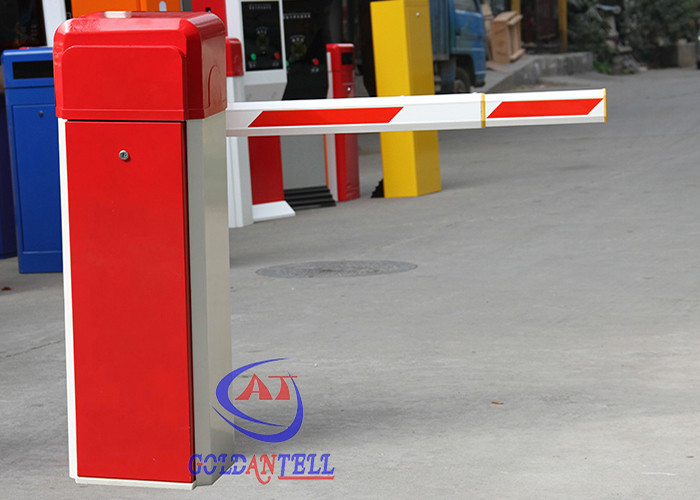

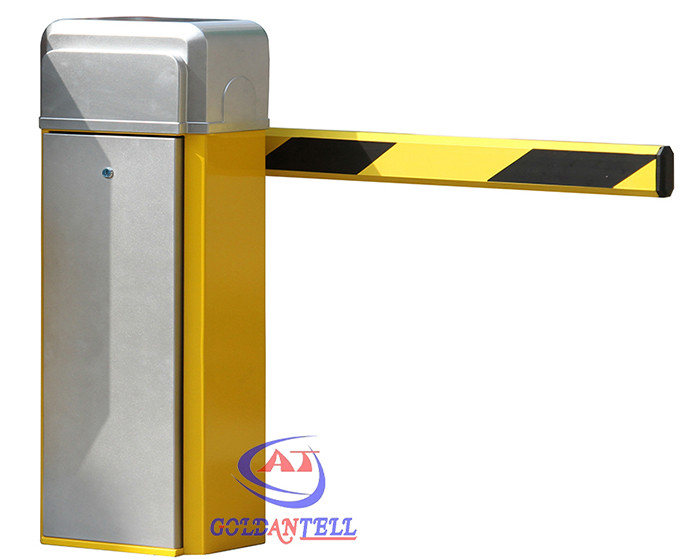

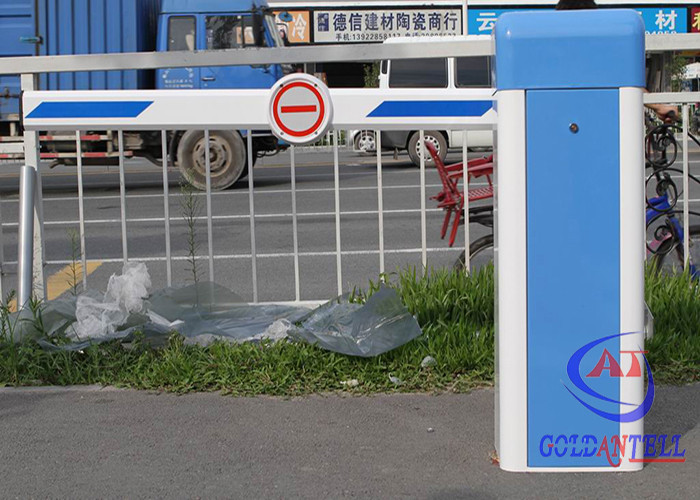

Boom Barrier Gate Pictures (different color for option)
