304 Stainless Steel Semi Automatic Vertical Tripod Turnstile With Mifare Card Reader
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-309 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Inside carton outside wooden case or crate Package |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Portable Tripod Turnstile | Size | 430*280*990mm |
|---|---|---|---|
| Material | 304 Stainless Steel | Gross Weight | 48KG |
| Power Supply | 220~240 V(AC) | Direction | Single Or Double Direction For Optional |
| Shipping Way | By Sea,by Air,by Express | Type | Full Automatic , Semi Automatic , Manual For Option |
| OEM | Size , Logo , Color , Package | ||
| Highlight | tripod access system,tripod barrier |
||
Product Description
304 Stainless Steel Semi Automatic Vertical Tripod Turnstile With Mifare
Card Reader
Portable Tripod Turnstile Technical Parameters
|
Housing material: domestic standard 304# stainless steel
|
|
Working voltage: AC220±10%V 50±10%HZ
|
|
Working movement: DC24V solenoid valve
|
|
Size: 1200mm (L) * 280mm (W) * 980mm (H)
|
|
Arm width: 510 mm
|
|
Support force of arm: 60kg
|
|
Passage width: ≤600 mm
|
|
Direction: single or bi-directional (optional)
|
|
LED light: direction arrow
|
|
Working environment: indoor/outdoor (with a tent over) -10℃～70℃ Relative humidity: ≤90% coagulation free
|
|
Time of opening: 0.2 second
|
|
Pass speed: 30 persons/min
|
|
Emergence: When power off, arm open automatically
|
|
Normal running life: 3 million
|
|
Communication interface: standard RS485 interface, distance ≤1200m
|
|
Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
|
Portable Tripod Turnstile Brief Introduction
This portable tripod turnstile is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.
Made of 304 /316 stainless steel,Goldantell portable tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
Portable tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,the semiautomatic is the most widely used,below is the comparation for the 3 kinds of versions:
|
Goldantell Tripod Turnstile Standard Functions & Features
|
||||||
|
Tripod turnstile function & Features |
Fully automatic |
Semi automatic |
Manual operation
|
|||
|
1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.
|
√ |
× |
× |
|||
|
2. Turnstile can setting the working condition by press the button of main control board.
|
√ |
√ |
× |
|||
|
3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.
|
Auto-drop-arm |
Auto-drop-arm |
NO action |
|||
|
4. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.
|
Auto-lift-arm |
manual- lift –arm |
NO action |
|||
|
5. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
|
√ |
√ |
× |
|||
|
6. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you)
|
√ |
√ |
× |
|||
|
7. LED indicator light
|
√ |
√ |
× |
|||
|
8. Once an open signal is give, the arms will rotate automatically to a certain angle, and prompt the pedestrian to pass the gate.
|
√ |
√ |
× |
|||
|
9. When pedestrian pass the turnstile, what should they do? |
Automatic-rotation |
manual push the arm |
manual push the arm |
|||
|
10. The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile)
|
√ |
√ |
× |
|||
|
12. LED counting function
|
√ |
√ |
× |
|||
|
11. Can manager and long-range control the turnstile directly by managing the computer.
|
√ |
√ |
× |
|||
Appearance, Dimension, Material & Surface Finish
Appearance: customized according to customer’s requirement.
Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking fini
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Application
Subway Station , Airports , Hoverport , Terminal , Tourism Sports, Exhibition, Hotel,Factory,Bank, Prison ,
Hospital , School , Library ,Theater , Canteen,Swimming Hall , Fitness Gym , Residence Area , Gateway
Gu yard , Toll Management ,Special Access Control , Bus Station , Enterprise’s Entrance
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Itegrate with ticketing system
P

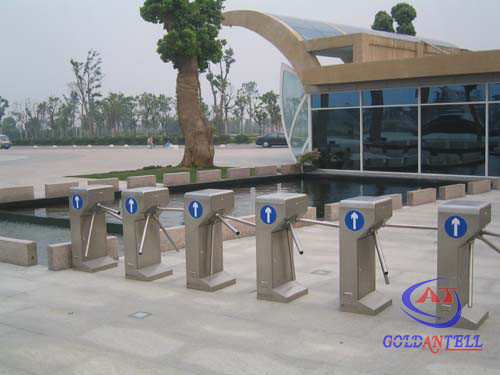

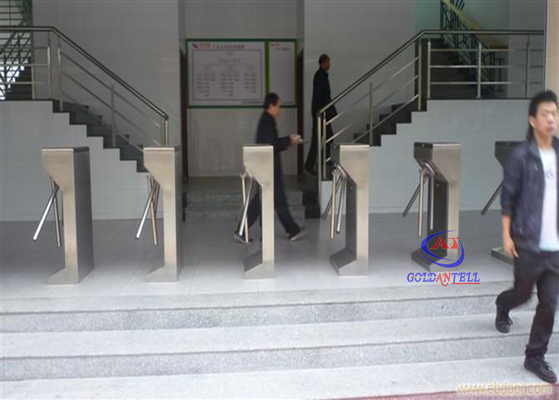

P Portable Tripod Turnstile Pictures
