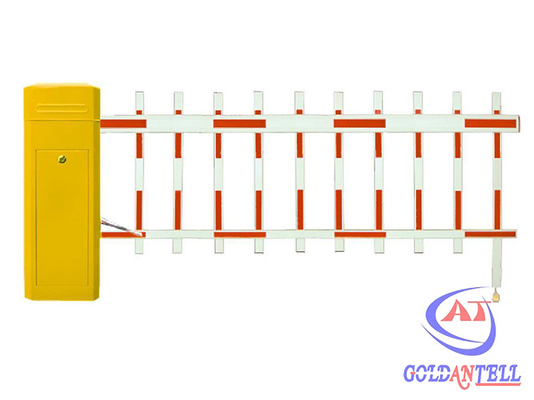

Stable Working Barrier Gate Full Automatic Gate Barrier In the Intelligent Parking Spot

Firm Structure And Stable Working Parking Barrier Gate And Full Automatic Gate Barrier

Brief introduction:

We are specialized in manufacturing integreted intelligent barrier gate.

With international advanced technology, we realize the automatization & intellectualization of barrier gate, which could be operated safely, conveniently and quickly.

Please note: this item has two pieces of the fence.

Specifications:

Package Instruction:
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.
Packed in carton firstly, and then reinforced with export wooden case or crate for outer packing.
3. One parking barrier with two package:

• the housing box is packed with crate
• the rail when length exceeding 2m need to be made to the expansion link and then it will be packed separately .

Competitive Advantage:

1. We can provide not only product, but also system software management.Save your time and cost.
2. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear an
fee.
3. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
4. Friendly and professional customer service people help you in 16 hours.

Standard accessories introduction:

Functions & features:

1. Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered.
2. Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered.
3. Safety--- Anti-hit by IR photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
4. Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.
5. Anti-collision protects boom arm (optional)
Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once boom arm was collided by a vehicle.
6. Safety--- Anti-hit by pressure resistance bounce
While moving down,arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.
7. Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.
8. Closing Priority
While arm moving up, the arm will immediately go down once a close command is given.
9. Automatically close after the given time
Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open.

Details show:

Project show:
