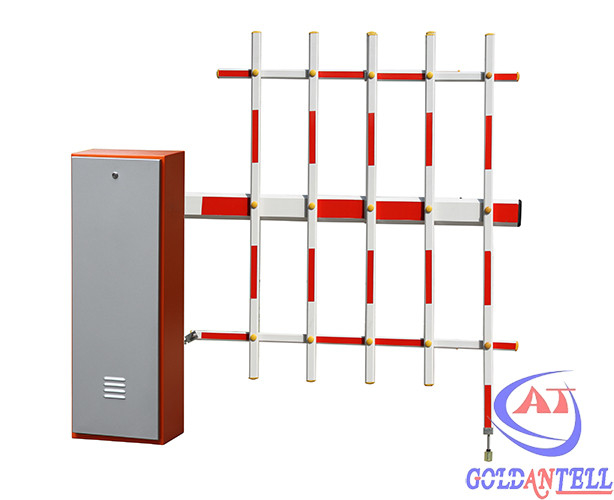

Easy Installation Security Barrier Gate , Multiple Communication Interface Vehicle Barrier

  • Easy Installation Security Barrier Gate , Multiple Communication Interface Vehicle Barrier
  • Easy Installation Security Barrier Gate , Multiple Communication Interface Vehicle Barrier
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-P8
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month
Product Details
Power Supply AC220V±10%50HZ AC110V±10%50HZ/60HZ Net Weight 50KG
Gross Weight 56KG Material Cold Rolled Mild Steel/stainless Steel
Rising Time 3- 6 Second Communication Port RS485 ,TCP/IP
Rail Length 1- 4 Meter Product Name Fence Parking Barrier Gate
Highlight

retractable barrier gate

,

car park boom gates
Leave a Message
Product Description
Easy Installation Security Barrier Gate with Multiple Communication Interfaces

This parking barrier gate features multiple communication interfaces and easy installation/use, making it ideal for security sensor barrier applications.

Standard Accessories
  • 3 meter rail *1
  • Remote Control *2
  • Button *1
  • Supporting rod bracket *1
  • Double deck honeycomb packaging *1
Technical Specifications
Specification Details
Rail length 1-4 meter
Housing Size 340*280*1000mm
Control methods Push button/remote control/access control system (RFID card reader)
Rail lifting time 3S (fast) / 6S (ordinary)
Housing color Orange / blue/ yellow / red
Housing box material Cold rolled mild steel/stainless steel
Rail material Aluminum Alloy
Motor speed 30r/min
MCBF ≥5,000,000 times
Working environments Indoor, outdoor
Relative humidity ≤90% no condensing
Traffic light Optional
Bumping bounce back N/A
Key Features & Functions
1. Automatic Close by Loop Detector (Optional): Barrier automatically closes after vehicle passes when loop input is triggered.
2. Automatic Open by Loop Detector (Optional): Barrier immediately opens when loop input is detected.
3. IR Photocell Safety: Arm returns to vertical position if infrared beam is blocked during descent.
4. Opening Priority Safety: Arm immediately returns vertical if vehicle approaches during descent.
5. Anti-collision Protection (Optional): Protects boom arm from vehicle collision damage.
6. Pressure Resistance Bounce: Arm returns vertical when obstructed, with adjustable sensitivity.
7. Loop Detector Safety: Arm returns vertical if vehicle detected on ground induction coil during descent.
8. Closing Priority: Arm immediately descends when close command is given during ascent.
9. Timed Auto-Close: Barrier closes after adjustable 1-90 seconds if no vehicle passes.
10. Manual Control: Gear mechanism allows manual operation during power outages with position locking capability.
Packaging Options
  • With access control system: Closed wooden case packing
  • Without access control system: Choice of crate or closed wooden box
  • Carton packaging with reinforced export wooden case or crate
  • Separate packaging for housing box (crate) and rail (expansion link for lengths exceeding 2m)
Project Solutions

Complete toll parking system packages available including:

  • Barrier gate, ballot boxes, vehicle detector
  • Entrance control system main board
  • System special switching power supply
  • Parking lot system management software with dongle
Easy Installation Security Barrier Gate , Multiple Communication Interface Vehicle Barrier 0

Additional options include RFID card reader control systems or standalone barrier gate operation with button/remote control.

Competitive Advantages
  • Complete product and system software solutions to save time and costs
  • Special repair service: Video-based technical support with free spare parts replacement within 1 year
  • 10+ years ODM/OEM experience with custom design, logo, and packaging options
  • 16-hour professional customer service support
