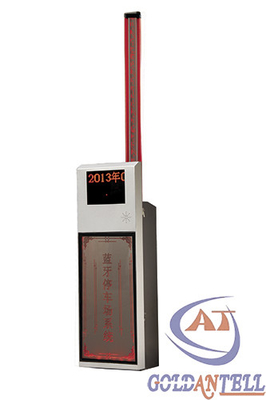

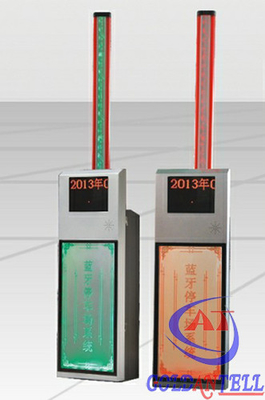

Bluetooth Remote Control Automatic Boom Barriers 3~6 Meter Optional Boom And IP 54 Security
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-P45 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Foldable Boom Barrier Gate | Rod Type | Straight/ Foldable/ Connenting / Extendable Rod |
|---|---|---|---|
| Size Of Product | 340*280*1000 Mm | Package Size | 420*360*1080 Mm |
| Type | Straight Arm Barrier Gate | Power Supply | AC220V±10%50HZ AC110V±10%50HZ/60HZ |
| Rail Length | 1- 6 Meter | Material | Cold Rolled Mild Steel/stainless Steel |
| Gross Weight | 56KG | ||
| Highlight | retractable barrier gate,car park boom gates |
||
Product Description
Bluetooth Remote Control Automatic Boom Barriers
3-6 Meter Optional Boom with IP54 Security
Intelligent parking barrier gate with special motor main controller offering multiple running modes. Features advanced anti-aging waterproof construction with durable, fade-resistant colors (yellow, green, blue optional). Designed with a rational structure for lane management, available in straight pole, fold pole, and fence rod types.
Technical Specifications
| Rail material | Aluminum Alloy |
|---|---|
| Motor speed | 30 r/min |
| Power supply | AC220V±10%50 HZ AC110V±10%50 HZ/60 HZ |
| Housing box material | Cold rolled mild steel/stainless steel |
| Working temperature | -40℃～85℃ |
| Size | 340*280*1000 MM |
| Rail length | 1-6 meter |
| Control methods | Push button/remote control/access control system (charging system or RFID card reader) |
| Housing color | Orange/blue/yellow/red |
| MCBF | ≥5,000,000 times |
| Working environments | Indoor, outdoor |
| Relative humidity | ≤90%, no condensing |
| Rated power | 70 W/150 W |
| Traffic light | Optional |
Standard Functions & Features
- Anti-collision protection: Optional mechanism protects boom arm from vehicle collisions
- Pressure resistance bounce: Boom returns to vertical position when obstructed during descent (adjustable sensitivity)
- Loop detector safety: Optional feature detects vehicles and prevents boom closure
- IR photocell safety: Optional infrared system stops boom when obstruction detected
- Opening priority: Boom immediately opens when vehicle approaches during closure
- Closing priority: Boom immediately closes when commanded during opening
- Auto-close timer: Adjustable 1-90 second delay before automatic closure
- Manual override: Gear mechanism allows manual operation during power failure
- Power failure response: Automatic full closure/opening depending on boom position
- Cold climate operation: Low power consumption prevents motor freezing
- Protected control board: Transparent waterproof cover prevents dust and water damage
Key Characteristics
- Vibration-free operation during boom movement
- 90-degree running limit prevents 360-degree failures
- Maintenance-free movement mechanism with no gears or belts
- Specially balanced mechanism for smooth acceleration/deceleration
- Low-noise aluminum-casing motor with integrated gearbox
- Intelligent overheat protection for frequent use
Our Service
- 24-month quality guarantee
- Custom designs and logos available (free for bulk orders)
- Professional engineering support
- Special distributor/agent discounts
- Standard export packaging (wooden case recommended)
- CE and ROHS certified
- 16-hour professional customer service
Project Solutions
- Complete RFID card reader control systems
- Standalone boom barriers with button/remote control
- Complete toll parking systems including barrier gates, ballot boxes, vehicle detectors, and management software
Safety Instructions
- Never place objects or stand under descending boom
- Do not adjust mechanical or photoelectric limit switches
- During power failure, manually adjust boom to vertical position
- Do not modify internal wiring - connect only to 220V power
- Install ≥10A leakage breaker in power supply
- Do not modify boom length/weight without professional assistance
- Keep case closed during operation
