Double Lanes Full Height Turnstile 304 / 202 Stainless Steel Automatic Revolving
Goldantell Full Height Turnstile Introduction&Specification
Goldantell full height turnstile is s a high-tech product which mainly provides intelligent management to passageway.
This full height turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Very comfortable space for passage.
Prevent illegal in and out.Arms off in emergency case..
This product is finely processed with complete functions and high level, suitable for stadium,prison,office building,govement, Confidentiality center,etc.,
Classified into two kinds:
single-access and dual-access. |

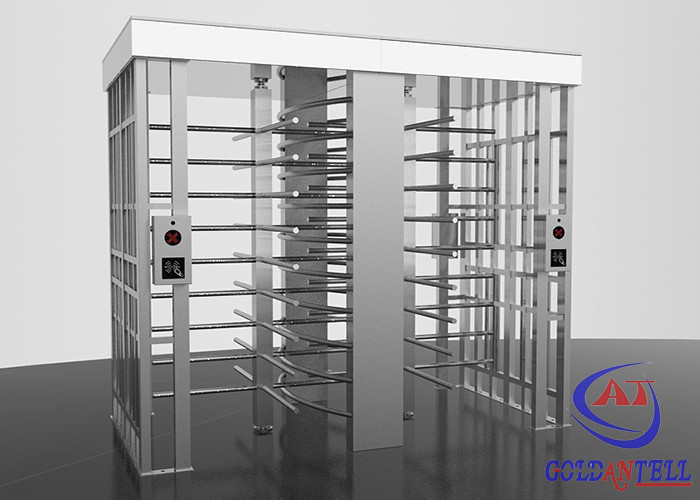

Goldantell product picture | Technical parameters |
| Housing material: domestic standard 304# stainless steel |
Working voltage: AC220±10%V 50±10%HZ |
Operation Voltage:DC24V |
Size:2600L*1350W*2350H(MM) |
Drive motor: DC24V brush motor |
Passage width: ≤600mm |
Working environment: indoor/outdoor (with a tent over) -10℃～70℃
Relative humidity: ≤90% coagulation free |
Time of opening/closing: 0.2 second |
Pass speed: 30 persons/min |
Time to work after power on: 3 seconds |
Reset time after break down: 10 seconds |
Normal running life: 3.5 million |
Communication interface: standard RS485 interface, distance ≤1200m |
Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Standard Functions&Features
1. Unique two-way anti-reverse function.
2, Programmable device's operating status through the built-in small press plate on control board,
3, Anti-rushing function .
4, The center rotor will be set free (default) or locked (optional) automatically when the power is off.
5, Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you
didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is
1~60s you can adjust it what time is suit for you)
6, Can be unidirectional or bidirectional control of personnel access.
7, Can manager and long-range control the turnstile directly by managing the computer.
Appearance, Dimension, Material & Surface Finish
1) Appearance: customized according to customer’s requirement .
steel thickness of the cabinet: customized within 1.2~2.0mm.
2) Material of the cabinet: 304 / 316 grade stainless steel.
3) Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating /
baking finish
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer
Integrate with visitor management system
Integrate with ticketing system
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Application
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,
Hotel,Factory,Bank,Prison,Hospital,School,Gateway Guard,
Competitive Advantage
1. More than 10 years experience in ODM/OEM ,can make product shape design,custom logo,custom
package.
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional Salesman will help you solve your every problems .

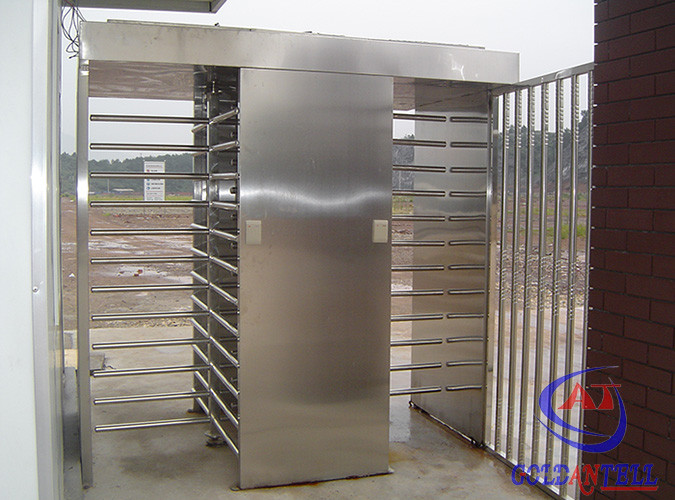

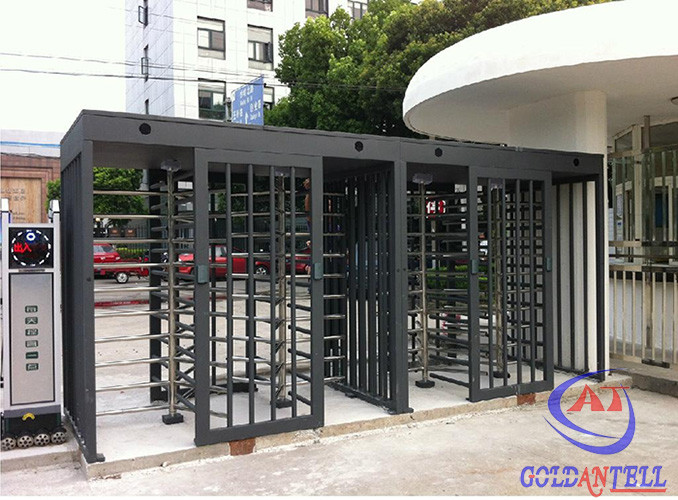

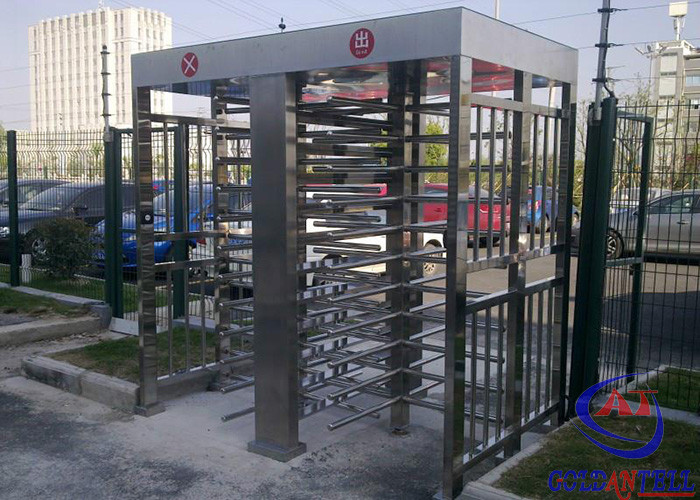

Goldantell Technology Full HeightTurnstile Project Picture
