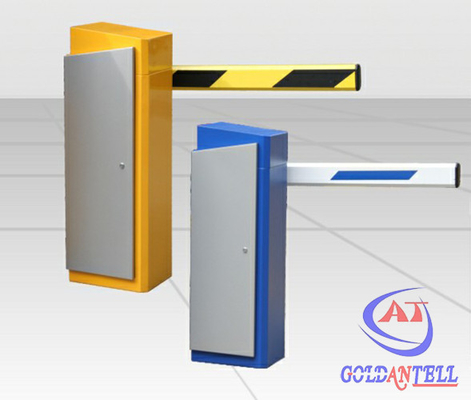

Stainless Steel Automatic Boom Barrier Gate Custom Color And Standard Shape Size
Brief Introduction:
We are specialized in manufacturing integreted intelligent barrier gate. With international advanced
technology, we realize the automatization & intellectualization of barrier gate, which could be operated safely, conveniently and quickly.
Specification:
| Rail material |
Aluminum Alloy |
| Housing box material |
cold rolled mild steel/stainless steel |
| size |
344*284*1050 MM |
| Rail length |
1- 6 meter |
| Motor speed |
30 r/min |
| Control ways |
push button/remote control/access control system like charging system or RFID card reader
|
| Housing color |
orange / blue/ yellow / red |
| MCBF |
≥5,000,000 times |
| Working environments |
indoor, outdoor |
| Working temperature |
-40℃～85℃ |
| Relative humidity |
≤90% no condensing |
| Power supply |
AC220V±10%50 HZ
AC110V±10%50 HZ/60 HZ
|
| Rated power |
70 W/150 W |
| Traffic light |
optional |
| Bumping bounce back |
N/A |
Characteristics:
1. Avoid vibrating caused by boom’s running;
2. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by
abnormal failures.
3. Special movement mechanism, with no gear or belt; no need for maintenance; stable performance and
long life-span
4. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and avoid
damaging easily during frequent usage.
Standard functions & features:
1. Intelligent over-heat protection system for driving mechanism, to control motor’s temperature and avoid damaging easily during frequent usage.
2. Special movement mechanism, with no gear or belt; no need for maintenance;stable performance and long life-span.
3. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal failures.
4. This equipment is controlled in wireless method, which makes its operation safe & convenient. What you need to do is to connect the equipment with 220 V power supply and earth the exterior case; then the system could start working without any wire arrangement or matching.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
7. Avoid vibrating caused by boom’s running.
8. The gate is equipped with multiple communication interfaces. It could be connected with vehicle-detector, IR co-irradiator or other accessories, to meet the safety requirement; and charging system could also be connected to realize automatic management (optional).
Package show:
Competitive Advantage:
1. Offer the ODM/OEM service,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management. Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Our product with CE approved and with good feedback in the Europe.
5. Friendly and professional customer service people help you in 16 hours.
Use & operation safety notes:
1. Normally, users can not change the wire layout inside barrier gate. Please just connect the gate with
220V power supply.
2. The power supply system should be equipped with leakage breaker (≥10A).
3. During arm going down, do not place anything under the booms; and no body is allowed to standing or
walking under the boom.
4. Normally, do not adjust positions of mechanical limit switch or photo electric limit switch.
5. When power cuts, first, turn off the power connection; then adjust the boom to vertical position by
turning the manual swing manually.
6. Normally, do not increase or decrease the length or weight of the boom, to avoid losing balance. If
necessary, professional staff is required.
7. During running, do not open the case-cover or case-door, to avoid accident.
Project schemes:
1. Except the product, also offer the RFID card reader control system.
2. Only the boom barrier gate, you can use the button or remote controller to control it.
3. We offer a complete set of the tolling parking system, including barrier gate, ballot boxes, vehicle
detector, Entrance control system main board, System special switching power supply, parking lot system
management software with dongle , etc.
