Intelligent DC 24V Access Control Security Swing Gate , Airport Swing Gates

  • Intelligent DC 24V Access Control Security Swing Gate , Airport Swing Gates
  • Intelligent DC 24V Access Control Security Swing Gate , Airport Swing Gates
  • Intelligent DC 24V Access Control Security Swing Gate , Airport Swing Gates
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-623
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Inside carton outside wooden case or crate Package
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Access Control Turnstile Size 1200*280*1000mm
Material 304 Stainless Steel Compatible RFID/Fingerprint/Coin/QRcode/Barcode/ESD Tester
Pass Speed 30-40 Persons/min Interface RS485, TCP/IP
Gross Weight 70KG
Highlight

swing gate turnstile

,

security swing gate
Leave a Message
Product Description

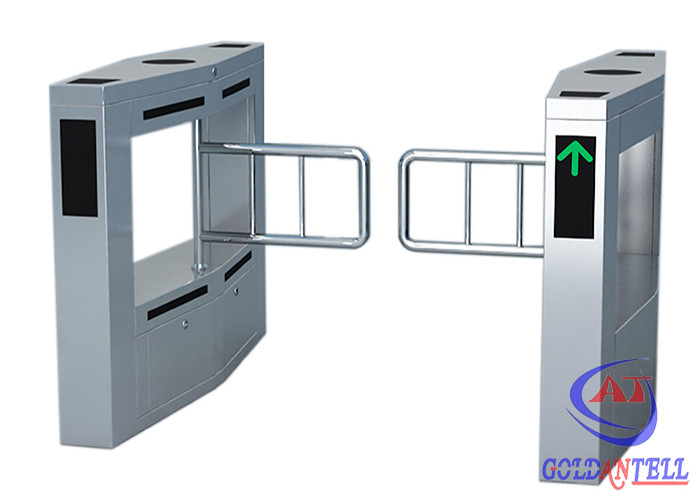

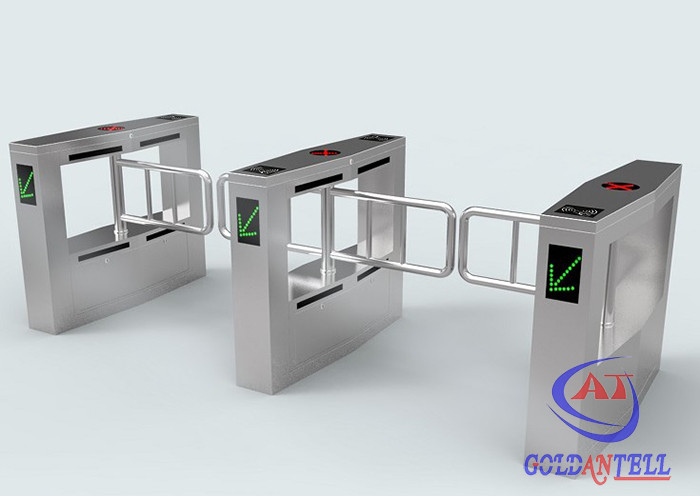

Intelligent DC 24V Access Control Security Swing Gate , Airport Swing Gates









Technical parameters



Housing material: domestic standard 304# stainless steel



Working voltage: AC220±10%V 50±10%HZ



Driving motor: DC24V brush motor



Size: 1200mm (L) *280mm (W) *1000mm (H)



Passage width: 530-830mm



Swing arm angle: 180 degree



Direction: single or bi-directional (optional)



Working environment: indoor/outdoor (with a tent over) -10℃～70℃



Relative humidity: ≤90% coagulation free



Time of opening/closing: 1 second



Pass speed: 40 persons/min (open), 25-30 persons/min (closed)



Time to work after power on: 3 seconds



Reset time after break down: 10 seconds



Normal running life: 3 million



Communication interface: standard RS485 interface, distance ≤1200m



Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA











































































Swing Barrier Gate Features



1. Alarm function:when arms are pushed by force illegally, alarm will be triggered



automatically and arms will be set locked.



2. Turnstile can setting the working condition by press the button of main control board.



3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions



4. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into



negative direction gate.



5. Before received the open signal, the turnstile will lock automatically



6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision,



the arm will open to protect the Transmission of inner machine.



7. Automatic Reset Functions



8. Infrared reset function (Optional:4 pairs or 6 pairs Infrared)



9. Infrared induction clamp function (4 pairs Infrared)



10. The turnstile can work with door access control system/ consumption system /biometric recognition



system/ ESD system and so on



11. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)



12. Can manager and long-range control the turnstile directly by managing the computer.





Appearance, Dimension, Material



Appearance: customized according to customer’s requirement.



Ma   Material of the cabinet: 304 / 316 grade stainless steel.





System Integration



Integrate with access control system required by customers, and built-in reader appointed by customer.



Integrate with visitor management system.



Integrate with ticketing system.





Application



Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,



Toll Management,Special Access Control ,Subway Station, Bus Station,Airports, Hoverport,



Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym,.





Competitive Advantage



1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom



package.



2. Ticket ,Barcode,ESD,Fingerprint,RFID,we all can do it !!



3. 2 years Guarantee,and during one year if the parts have any artifical damage ,we will send to you the



parts for free let you fix it .



4. Nice service and after sales service.

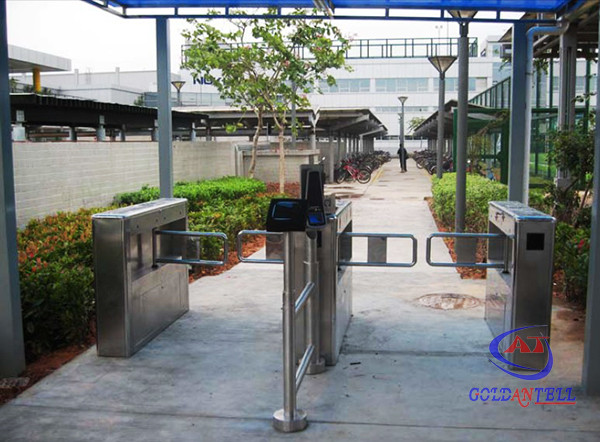

Project Showing



Intelligent DC 24V Access Control Security Swing Gate , Airport Swing Gates 0
