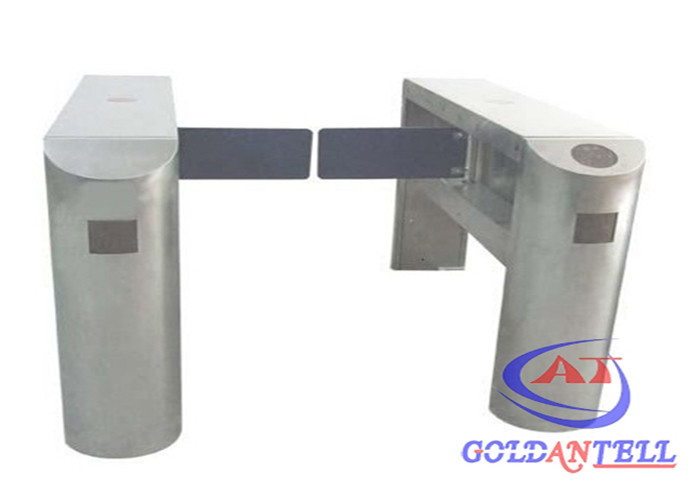

Passage Controlled Swing Barrier Gate With Mifare Card Reader And Software

  • Passage Controlled Swing Barrier Gate With Mifare Card Reader And Software
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-617
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Swing Barrier Gate With Mifare Card Reader Application Indoor&outdoor
Size Of Product 1200*280*1000mm Net Weight 130KG/pair
Package Size 1280*370*1090mm Gross Weight 140KG/pair
Communication Port RS485 ,RS232/TCP/IP Work Voltage AC220V±10% V/50±10%HZ
Arm Drive Direction Single Direction Or Bi-Direction
Highlight

swing gate turnstile

,

waist high turnstiles
Leave a Message
Product Description



Passage Controlled Swing Barrier Gate With Mifare Card Reader And



Software







Quick Details



​Fully automatic access control swing turnstile for handicap lane



Channel width:600-900mm



3 pairs of infrared sensor



Control panel with counting function,LED display function (optional).



Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products



Product Descriptions

  1. Waterproof, sunscreen, anti-temperature, anti-cold.​
  2. Access Prompt function:Red and green light prompt the passing information.
  3. Can set a one-way or two-way control
  4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
  5. Small button into the main control panel ,can be set state of equipment.
  6. Anti-pinch, anti bumps function
  7. Scour protection function ,when the gate signal is not received, arms keep closed
  8. With automatic reset function,if does not pass in the set time,turnstile will get back
  9. Normally open or closed can be freely adjusted
  10. can be used with a variety of reading devices, work when it receive relay switch signal
  11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically





Technical Parameters



Material 304/316 stainless seel (optional)
Fishing Brushed surface (standard) / Polishing surface
Dimension 1400*280*1000mm
Swing arm length 600 - 900mm
Drive motor Brushless DC motor (24V)
Power supply AC220 (110) ± 10%V,50Hz
Working life 3,000,000 times
Communication Interface RS485 / RS232,Ethernet
Transit Speed 20 - 35 passage / minute
Work Environment Indoor / Outdoor (Shelter)
Use Place Station,park,apartment,school,factory,bank,building






Customized Features

  1. Alternative Materials, Finishes and Custom Design
  2. Access Control System Integration
  3. Ticket System Integration
  4. Camera System Integration
  5. Thermostat System Integration
  6. Remote-Controlled Button
  7. Usage Counters
  8. Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
  9. SDK and technical support will be provided for Secondary development of software
