Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
Product Details:
Payment & Shipping Terms:
|
Product Name: | Electronic Swing Barrier Gate | Application: | Indoor&outdoor |
---|---|---|---|
Size Of Product: | 1200*280*1000mm | Net Weight: | 130KG/pair |
Package Size: | 1280*370*1090mm | Gross Weight: | 140KG/pair |
Communication Port: | RS485 ,RS232/TCP/IP | Housing Material: | AC220V±10% V/50±10%HZ |
Work Voltage: | RFID Reader&fingerprint Reader ,coin Acess,qr Code Reader,bar Code System,esd Tester Access Control, Remote Button | Arm Drive Direction: | Single Direction Or Bi-Direction |
Highlight: | swing gate turnstile,waist high turnstiles |

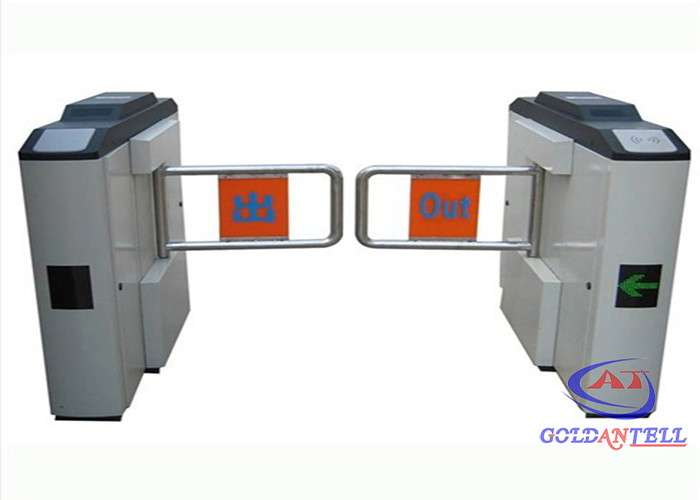

RFID Biometric Controlled Access Turnstiles With Self-checking Alarm
, Swing Barrier
Biometric Acess Swing Turnstile Features
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no
reading; One direction card reading and another freely. And single direction photocell controlled passing
and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set
in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height
turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back
from the flap barrier and then take a valid card to be read for passing.
7. Flap barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Stable running with little noise.
Functions
Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader
&Coin Machine&Barcode System&ESD Tester Access Control(If you have access control system,you can
only purchase our turnstiles,if not, our side will install the access control system for you),except acess
system,also can use remote
Biometric Acess Swing Turnstile Specification
1
|
Power |
AC220C±10V,50HZ |
2
|
Operating temperature
|
-15°C--75°C |
3
|
Relative Humidity |
≤95%, No Condensation |
4 |
Arm length
|
60~90cm adjustable |
5 |
Passing Speed
|
30~40 persons/min(IC/ID Card) |
6 |
Motor
|
0.5NM/24V(Fully Automatic) |
7 |
Input Connection
|
+12V Level Signal or Pulse Wide>100ms DC12V |
8 |
Communication Connection
|
RS485 Communication Module Standard. |
9 |
Material
|
SUS304,thickness is no less than 1.3mm |
10 |
Protection Grade
|
IP54 |
11 |
Colour
|
SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
12 |
Operation Place
|
Hoverport ,Tourism Sports , Exhibition , Swimming Hall , Residence Area , Enterprise’s Entrance and Exit Attendance , Gateway Guard , Charge Management , Special Access Control , Subway Station
|
Extendable functions
Counter (optional)
The length of the housing (length 1.2m, 1.4m, or 1.6m are optional)
The material of flap arm (organic glass, resin, PVC etc. optional)
The color of the flap arm (red, blue, yellow, colorless, etc.)
FAQ
1 Can you install RFID card reader on the turnstile?
Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd
system,etc.
2 How about the guarantee and after sale service?
We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who
can speak fluent English language
3 How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer
4 How about the payment terms?
TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order
security.
5 How do you send the product to me,how long?
For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.
6 Can you do OEM service?
We offer below OEM services:
1) We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.
2) Can print your logo on turnstiles, can customize the retail box packing and other things.
