Product Details:
Payment & Shipping Terms:
|
| Material: | 304 Stainless Steel/316 Stainless Steel | Type: | Bridge Intelligent Swing Barrier Gate |
|---|---|---|---|
| Passage Width: | 530mm-830mm | OEM: | OEM Arm Length,custom Logo,custom Size |
| Communication Port: | RS485 ,TCP/IP | Net Weight: | 45KG/set |
| Gross Weight: | 50KG/set | Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Size Of Product: | Diameter: Main Pole: Φ168mm Height: 1000mm | ||
| Highlight: | security swing gate,waist high turnstiles |
||

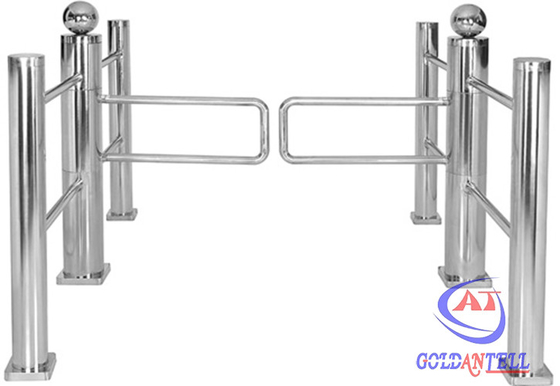

Full Automatic Swing Barrier Gate Access With Sound / Light Alarm To Preventing Illegal Intruder
Application:
| Business Organizations | Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance |
| Public Places | Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices, Commercial buildings. |
|
Entertainment Places |
Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, |
Description:
Goldantell intelligent swing gate is well designed to be rustproof, durable and able to resist external destroy. The machine is available for any area which needs a high level of security without persons to monitor.
Swing Turnsitle arm rotates 180 degrees per time, and it offers a comfortable space for users.
Swing Turnstile is normally designed to be Semi-Automatic Type/ Manual Type/ All- automatic Type.
Classified into these kinds:
Single motor and Double motor:single motor (suitable for single passageway and multiple passageway);
double motors (suitable for multiple passageways).
Specifications:
| Size | diameter: main pole: Φ168mm height: 1000mm |
| Control ways | Push button, RFID card, fingerprint recognition etc. |
| Normal running life | 3 million |
| Time of opening/closing | 1 second |
| Working voltage | AC220±10%V 50±10%HZ |
| Passage width | 530 mm - 830 mm |
| Swing arm angle | 180 degree |
| Direction | single or bi-directional (optional) |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Working environment |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Driving motor | DC 24 V brush motor |
Standard Function:
1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
2. Infrared induction clamp function (4 pairs Infrared).
3. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
4. Before received the open signal, the turnstile will lock automatically
5. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
6. Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. turnstile can check by itself when it is have problem, it is good for customer to maintain and use.
7. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
8. Turnstile can setting the working condition by press the button of main control board.
9. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed).
10. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
11. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
12. Can manager and long-range control the turnstile directly by managing the computer.
13. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
Project instruction:
|
Application picture |
Detail pictures |
 |
|
|
1. With 4 pairs Infrared. |
|
Package details:
Competitive Advantage:
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear anyfee.
