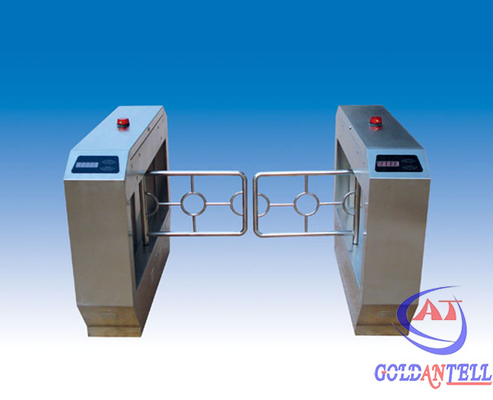

Normally 40 Person / Min Pass Rate Swing Barrier Gate , Easy Operation Security Turnstile

Normally 40 Person / Min Pass Rate Swing Barrier Gate , Easy Operation Security Turnstile

Brief Introduction:

Swing Turnstile is normally designed to be Semi-Automatic Type/ Manual Type/ All- automatic Type.

Swing Turnstile arm rotates 180 degrees per time, and it offers a comfortable space for users.

Swing Turnstile usually classified into these kinds: Bridge shape ( this item is the bridge shape ); Vertical shape; Pillar shape; Single motor and Double motor:single motor (suitable for single

passageway and multiple passageway); double motors (suitable for multiple passageways).

Specifications:

Standard Function:

1. Before received the open signal, the turnstile will lock automatically
2. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

3. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
4. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
5. Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. turnstile can check by itself when it is have problem, it is good for customer to maintain and use.
6. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
7. Infrared induction clamp function (4 pairs Infrared).

8. Turnstile can setting the working condition by press the button of main control board.
9. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed).
10. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
11. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
12. Can manager and long-range control the turnstile directly by managing the computer.
13. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.

Application:

Details:

1. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely ;And single direction photocell controlled passing and close

2. Working ways can be set in the control panel.

3. When power off, arm open automatically and power on again, arm will be held automatically.

4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

5. passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
6. Swing barrier is with standard electrical interface for the integration of various readers and writers.
7. Card-reading with memory or without memory function.

8. Stable running with little noise.

Package details:

1.One pair needs two packages, the one needs a package.   2. With access control system, need the closed wooden case packing.   3. Without the access control system, two ways for your choice: crate and closed wooden box.

System Integration:

1. This equipment is subtly integrated with machine, electronics, micro- processor control and ID

identification, provides convenience for the use of card reader identification equipment, such as IC card,

ID card, bar code and fingerprint.

2. It can carry out intelligent control and management to the passageway through choosing various

identification equipment and adopting fair, reliable security protection, alarming equipment and direction

indicating equipment.
