Superior Quality Swing Barrier Gate , Resistant To External Damage Automatic Bidirectional Gate

  • Superior Quality Swing Barrier Gate , Resistant To External Damage Automatic Bidirectional Gate
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-636
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Size Of Product 1200mm (L) *280mm (W) *1000mm (H)
Material 304 Stainless Steel/316 Stainless Steel Type Bridge Intelligent Swing Barrier Gate
Passage Width 530mm-830mm OEM OEM Arm Length,custom Logo,custom Size
Communication Port RS485 ,TCP/IP Net Weight 45KG/set
Gross Weight 50KG/set
Highlight

swing gate turnstile

,

waist high turnstiles
Leave a Message
Product Description

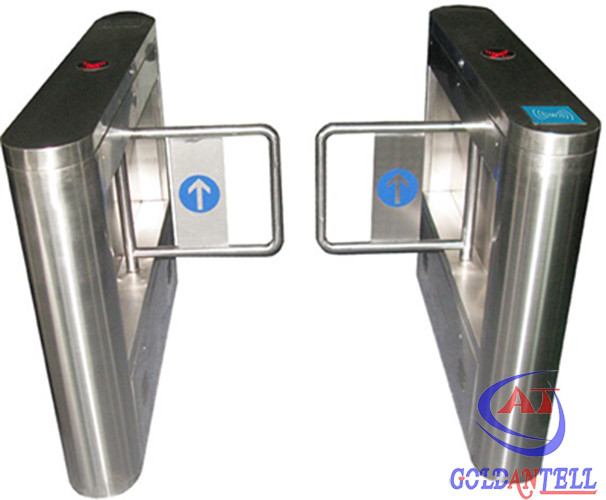

Superior Quality Swing Barrier Gate Resistant To External Damage Automatic Bidirectional Gate
Goldantell intelligent swing gate provides high-level security without requiring constant monitoring. Designed to be rustproof, durable, and resistant to external damage, it's ideal for various security applications.
Product Types
  • Swing Turnstile available in Semi-Automatic, Manual, or Fully Automatic versions
  • 180-degree arm rotation provides comfortable user passage
  • Available in Vertical, Bridge (this model), and Pillar shapes
  • Single motor (for single/multiple passageways) or Double motor (for multiple passageways)
Technical Specifications
Control Methods Push button, RFID card, fingerprint recognition
Operating Life 3 million cycles
Opening/Closing Time 1 second
Power Supply AC220±10%V 50±10%HZ
Dimensions 1200mm (L) × 280mm (W) × 1000mm (H)
Passage Width 530mm - 830mm
Swing Angle 180 degrees
Direction Single or bi-directional (optional)
Throughput 40 persons/min (open), 25-30 persons/min (closed)
Operating Environment Indoor/outdoor (with cover), -10℃ to 70℃
Motor DC 24V brush motor
Standard Features
  • Automatic locking when idle
  • Collision avoidance protection
  • Adjustable automatic reset function (1-60s)
  • Optional infrared reset (4 or 6 pairs)
  • Force alarm and lock system
  • Anti-tailgating protection
  • Infrared induction clamp function
  • Main control board configuration
  • Mechanical/infrared anti-pinch protection
  • Compatible with access control, biometric, and ESD systems
  • Bidirectional operation
  • Remote computer management
  • Diagnostic flashing light indicators
Applications
Business Organizations Hotels, Factories, Banks, Prisons, Hospitals, Schools, Corporate Entrances
Entertainment Venues Movie theaters, Fitness clubs, Country clubs, Fairgrounds, Nightclubs, Swimming pools, Gyms
Public Spaces Subways, Airports, Train stations, Libraries, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Apartments, Office buildings
Competitive Advantages
  • 16-hour professional customer support
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system software management solutions
  • Remote troubleshooting and free spare parts replacement within warranty
Packaging Options
  • Single pair requires two packages
  • With access control system: closed wooden case
  • Without access control system: choice of crate or closed wooden box
Superior Quality Swing Barrier Gate , Resistant To External Damage Automatic Bidirectional Gate 0
System Integration
This equipment integrates mechanical, electronic, and microprocessor controls with ID identification systems. Compatible with IC cards, ID cards, barcodes, and fingerprint readers, it provides intelligent access management with reliable security protection, alarm systems, and directional indicators.
Superior Quality Swing Barrier Gate , Resistant To External Damage Automatic Bidirectional Gate 1
