Manual / Automatic System Control Swing Arm Barrier Under Rapid Speed / Direction Reminder

  • Manual / Automatic System Control Swing Arm Barrier Under Rapid Speed / Direction Reminder
  • Manual / Automatic System Control Swing Arm Barrier Under Rapid Speed / Direction Reminder
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-618
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Net Weight 45KG/set Gross Weight 50KG/set
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Size Of Product 1200mm (L) *280mm (W) *1000mm (H)
Material 304 Stainless Steel/316 Stainless Steel Type Bridge Intelligent Swing Barrier Gate
Passage Width 530mm-830mm OEM OEM Arm Length,custom Logo,custom Size
Communication Port RS485 ,TCP/IP
Highlight

swing gate turnstile

,

waist high turnstiles
Leave a Message
Product Description
Manual / Automatic System Control Swing Arm Barrier
High-Speed Security Turnstile with Direction Control
The Goldantell intelligent swing gate provides high-level security for areas requiring automated access control. Designed for durability, the system features rustproof construction and resistance to external damage. Available in Semi-Automatic, Manual, or Fully Automatic configurations with 90°/180° arm rotation for comfortable user passage.
Technical Specifications
Control Methods Push button, RFID card, fingerprint recognition
Working Voltage AC220±10%V 50±10%HZ
Dimensions 1200mm (L) * 280mm (W) * 1000mm (H)
Passage Width 530mm - 830mm
Swing Arm Angle 180°
Direction Single or bi-directional (optional)
Operation Speed 1 second open/close time
40 persons/min (open)
25-30 persons/min (closed)
Service Life 3 million cycles
Operating Environment Indoor/outdoor (with shelter)
-10℃ to 70℃
Drive Motor DC 24V brush motor
Configuration Options
  • Vertical, Bridge (standard), or Pillar shapes
  • Single motor (single/multiple passageways) or Double motor (multiple passageways)
Advanced Features
  • Multiple access modes: bi-directional card reading, mixed modes, or photocell control
  • Configurable via control panel
  • Automatic arm release during power failure
  • Adjustable closing delay (1-60 seconds)
  • Intrusion alarm system with auto-lock
  • Standard electrical interfaces for system integration
  • Memory/non-memory card reading options
  • Quiet, stable operation
Standard Functions
  • Automatic reset (1-60s adjustable)
  • Optional 4-6 pair infrared detection
  • Forced entry alarm with mechanical lock
  • Automatic door locking system
  • Collision avoidance protection
  • Anti-pinch function (mechanical/infrared)
  • Compatibility with access control, biometric, and ESD systems
  • Bidirectional operation capability
  • Remote computer management
  • Diagnostic light indicators
Product Variations

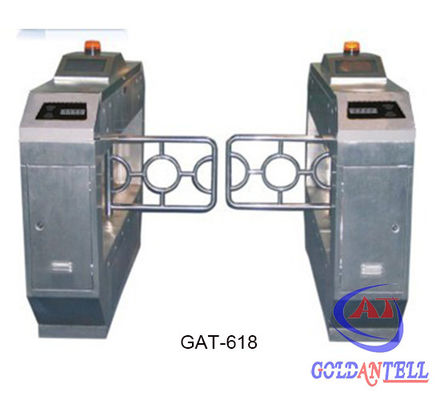

Manual / Automatic System Control Swing Arm Barrier Under Rapid Speed / Direction Reminder 0
Applications
  • Public Spaces: Transportation hubs, cultural venues, residential areas
  • Entertainment: Theaters, clubs, sports facilities
  • Institutional: Hospitals, schools, corporate facilities
Packaging Options
  • Single unit requires one package, pairs require two
  • Access control system included: sealed wooden case
  • Basic system: choice of crate or wooden box
Customization Options
Manual / Automatic System Control Swing Arm Barrier Under Rapid Speed / Direction Reminder 1
  • Custom appearance designs available
  • Stainless steel thickness: 1.2-2.0mm
  • Material options: 304/316 grade stainless steel
  • Surface finishes: satin, polished, anti-fingerprint, frosted, electroplated, or baked
Competitive Advantages
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system solutions including management software
  • Remote technical support with video diagnostics
  • 1-year warranty with free replacement parts
  • 16-hour professional customer service
