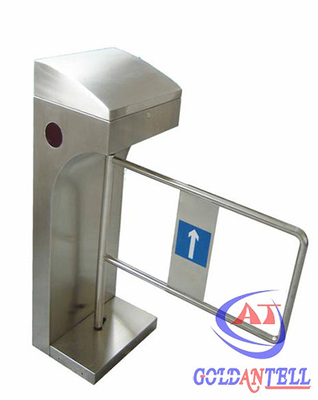

Arm Length 60 - 90 mm Automatic Supermarket Swing Gate / Bidirectional Passage Barrier Door

Arm Length 60 - 90 mm Automatic Supermarket Swing Gate / Bidirectional Passage Barrier Door

Description:

1. Standard features: Made of 304 /316 stainless steel,Goldantell tripod turnstile with nice and elegant

shape,anti- rust,durable, Resistant to external damage.

2. Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to

people. Prevent illegal in and out.Arms off in emergency case.

3. Application place: This item is widely suitable for high- level neighborhoods, intelligent buildings, hotel

subway, port and club, etc.

4. System Integration: This equipment is subtly integrated with machine, electronics, micro- processor

control and ID identification, provides convenience for the use of card reader identification equipment,

such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security

protection, alarming equipment and direction indicating equipment.

Specifications:

	Working voltage	AC220±10%V 50±10%HZ
	Size	380(L)*280(W)*1000(H) (MM)
	Passage width	530 mm - 830 mm
	Swing arm angle	180 degree
	Direction	single or bi-directional (optional)
	Time of opening/closing	1 second
	Control ways	Push button, RFID card, fingerprint recognition etc.
	Pass speed	40 persons/min (open), 25-30 persons/min (closed)
	Normal running life	3 million
	Working environment	indoor/outdoor (with a tent over) -10℃～70℃
	Driving motor	DC 24 V brush motor

Classification:

1. Vertical shape ( this item is the bridge shape ).

2. Bridge shape

3. Pillar shape

4. Single motor and Double motor:

single motor (suitable for single passageway and multiple passageway); Double motors (suitable for

multiple passageways)

Standard Function:

1.Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. turnstile can check by itself when it is have problem, it is good for customer to maintain and use.
2. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
3. Before received the open signal, the turnstile will lock automatically
4. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
6. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
7. Infrared induction clamp function (4 pairs Infrared).

8. Turnstile can setting the working condition by press the button of main control board.
9. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed).
10. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
11. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
12. Can manager and long-range control the turnstile directly by managing the computer.
13. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.

Extended function:

1.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared) Voice Prompt Function.
2. Normally open or closed can be adjust to meet the requirements of the different place.
Sound and light alarm prompt functions
3. Voice Prompt Function
4. Sound and light alarm prompt functions

5.LED counting function
6.Box house can lengthen, swing arm lengthen

Application:

Competitive Advantage:

1.All items have 24 month quality guarantee.
2.Custom design shape and logo ,for large amount, custom logo available for free.
3.Fast delivery.
4.Supported by professional engineers.
5.Special discount of our distributors or agents in their area.
6.Packing in standard export carton, suggest you pack it by wooden case to protect the products.
7. CE, ROSH available.

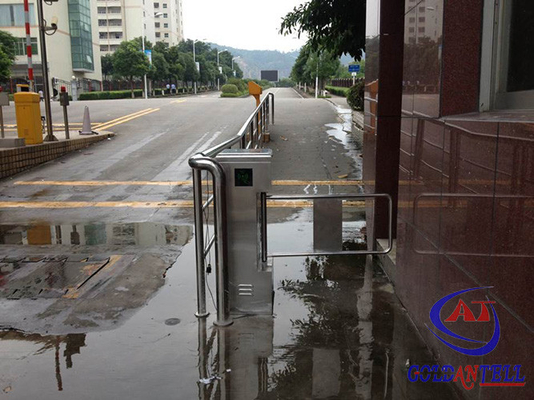

Project cases introductions:

• Used separately

Application:

1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,

Museums,Apartments,Residence Area, Offices,Commercial buildings.

2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,

Fitness Gym.

3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit

Attendance.

Appearance, Dimension, Material & Surface Finish

1. Appearance: customized according to customer’s requirement.
2. stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
3. Material of the cabinet: 304 / 316 grade stainless steel.
4. Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating /

baking finish.
