Dual-core Movement / Passage Indicator Swing Turnstile Gate Under IC / ID Card , Ticket System Control
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-606 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304 Stainless Steel/316 Stainless Steel | Type | Bridge Automatic Swing Barrier Gate |
|---|---|---|---|
| OEM | OEM Arm Length,custom Logo,custom Size | Net Weight | 45KG/set |
| Gross Weight | 50KG/set | Communication Port | RS485 ,TCP/IP |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Size Of Product | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Highlight | swing gate turnstile,waist high turnstiles |
||
Product Description

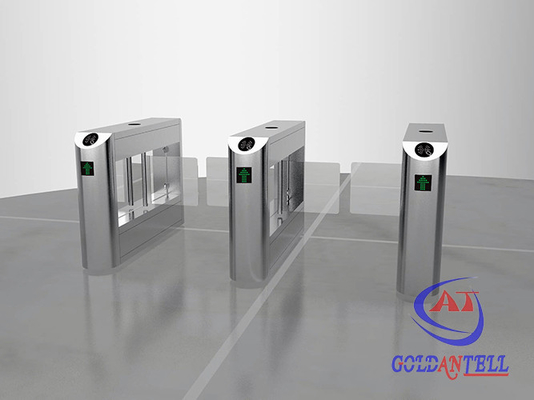

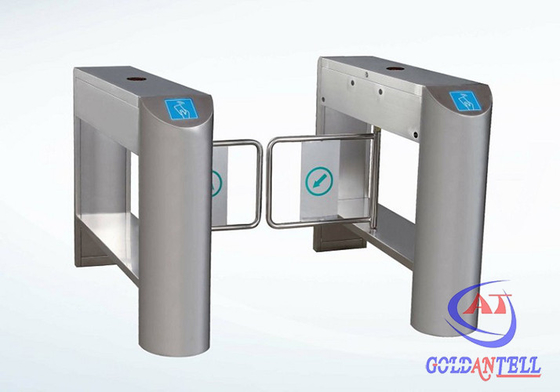

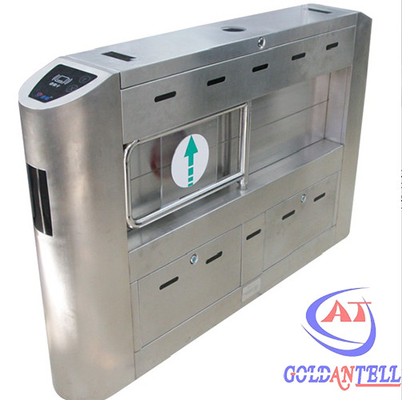

Dual-core Movement / Passage Indicator Swing Turnstile Gate
IC/ID Card & Ticket System Controlled Access Solution
Goldantell swing turnstile integrates with various access control systems including RFID readers, fingerprint scanners, coin machines, QR/barcode systems, and ESD testers. Can be controlled remotely or through existing access control infrastructure.
Technical Specifications
| Parameter | Value |
|---|---|
| Working voltage | AC220±10%V 50±10%HZ |
| Dimensions | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Passage width | 530mm - 830mm |
| Swing arm angle | 180 degrees |
| Direction | Single or bi-directional (optional) |
| Opening/closing time | 1 second |
| Control methods | Push button, RFID card, fingerprint recognition |
| Throughput capacity | 40 persons/min (open), 25-30 persons/min (closed) |
| Operational lifespan | 3 million cycles |
| Operating environment | Indoor/outdoor (with cover), -10℃ to 70℃ |
| Drive motor | DC 24V brush motor |
Design Configurations
- Bridge shape (current model)
- Vertical shape
- Pillar shape
- Single motor or double motor options
Standard Features
- Force alarm: Triggers when arms are forcibly pushed, locking mechanism activates
- Self-diagnostic capability for easy maintenance
- Configurable operation modes via control panel
- Dual anti-pinch protection: Mechanical and infrared sensing
- Illegal entry detection: Blocks tailgating and reverse entry attempts
- Auto-locking when no open signal is received
- Collision avoidance: Arms open upon impact to protect internal mechanisms
- Automatic reset: Cancels access authority after 10s (adjustable 1-60s)
- Optional infrared reset (4 or 6 pairs)
- Infrared anti-pinch (4 pairs standard)
- Compatibility with access control, biometric, and ESD systems
- Bidirectional operation capability
- Remote management via computer
- Visual status indicators for troubleshooting
Optional Enhancements
- LED people counting display
- Customizable housing and arm lengths
- Advanced infrared logic (8 or 10 pairs)
- Voice prompt system
- Audible/visual alarm indicators
- Adjustable open/closed modes for different environments
Industry Applications
| Environment | Use Cases |
|---|---|
| Entertainment Venues | Movie theaters, fitness clubs, swimming pools, amusement parks |
| Public Spaces | Transit hubs, airports, libraries, museums, parks, office buildings |
| Commercial Facilities | Hotels, factories, banks, hospitals, schools, corporate campuses |
Product Advantages
- 24-month quality guarantee
- Custom designs and branding available
- Rapid delivery timelines
- Engineering support team
- Regional distributor discounts
- Export-grade packaging (wooden crate recommended)
- CE and RoHS compliance

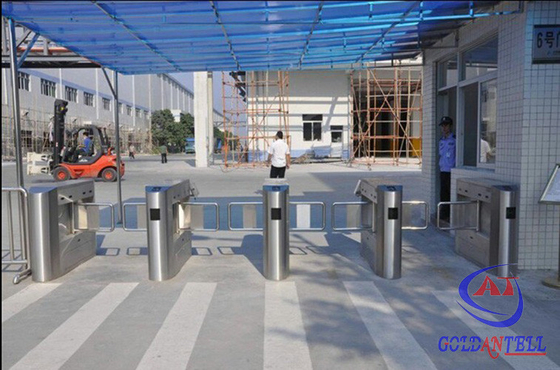

Project Examples
Construction Details
- Customizable appearance
- Stainless steel cabinet thickness: 1.2-2.0mm
- Material options: 304/316 grade stainless steel
- Finish options: Satin, polished, anti-fingerprint, frosted, electroplated, or baked
Packaging Options
- With access control: Sealed wooden crate required
- Without access control: Choice of crate or wooden box
- Pair units ship in two separate packages
