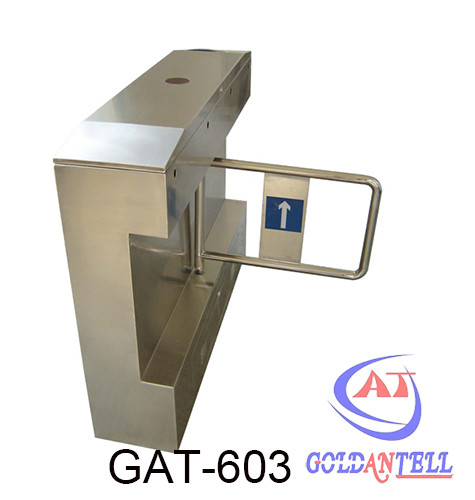

CE Approved 180 Degree Angle Swing Arm Barrier / Automatic Pedestrian Swing Barrier

CE Approved 180 Degree Angle Swing Arm Barrier  / Automatic Pedestrian Swing Barrier
CE Approved 180 Degree Angle Swing Arm Barrier  / Automatic Pedestrian Swing Barrier

Large Image :  CE Approved 180 Degree Angle Swing Arm Barrier / Automatic Pedestrian Swing Barrier

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-603
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Size Of Product: 1200mm (L) * 280mm (W) * 1000mm (H) Material: 304 Stainless Steel/316 Stainless Steel
Type: Bridge Automatic Swing Barrier Gate OEM: OEM Arm Length,custom Logo,custom Size
Net Weight: 45KG/set Gross Weight: 50KG/set
Communication Port: RS485 ,TCP/IP Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Highlight:

swing gate turnstile

,

security swing gate

CE Approved 180 Degree Angle Swing Arm Barrier / Automatic Pedestrian Swing Barrier

Description:


Goldantell swing turnstile is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies, It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment.



Classification:

  • Bridge shape ( this item is the bridge shape ).
  • Vertical shape
  • Pillar shape



Standard Function:


1. Pillar can heighten , telescopic arm lengthen, can choose materials.
2. Infrared reset function & Infrared induction clamp function.
3. Sound and light alarm prompt functions.
4. Normally open or closed can be adjust to meet the requirements of the different place
5. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
6. Turnstile can setting the working condition by press the button of main control board.
7. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet
the hinder during the reset time, the electrical machine closed work automatically in specified time, the
turnstile will default the delayed and reset again till reset succeed).
8. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate. 9. Before received the open signal, the turnstile will lock automatically.
10. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
11. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if

you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset

time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
12. The turnstile can work with door access control system/ consumption system /biometric recognition
system/ ESD system and so on.
13. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
14. Can manager and long-range control the turnstile directly by managing the computer.





Specifications:



Working voltage AC220±10%V 50±10%HZ
Size 1200 mm (L) * 280 mm (W) * 1000 mm (H)
Passage width 530 mm - 830 mm
Swing arm angle 180 degree
Direction single or bi-directional (optional)
Time of opening/closing 1 second
Control ways

Push button, RFID card, fingerprint
recognition etc.

Pass speed

40 persons/min (open),

25-30 persons/min (closed)

Normal running life 3 million
Working environment

indoor/outdoor (with a tent over)  -10℃~70℃

Driving motor DC 24 V brush motor





Competitive Advantage:


1. All items have 24 month quality guarantee.
2. Custom design shape and logo ,for large amount, custom logo available for free.

3. Fast delivery.
4. Supported by professional engineers.
5. Special discount of our distributors or agents in their area.
6. Packing in standard export carton, suggest you pack it by wooden case to protect the products.
7. CE, ROSH available.





Project cases introductions:



CE Approved 180 Degree Angle Swing Arm Barrier  / Automatic Pedestrian Swing Barrier 0




Application:



1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,

Museums,Apartments,Residence Area, Offices,Commercial buildings.

2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,

Fitness Gym.

3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit

Attendance.





Appearance, Dimension, Material & Surface Finish


1. Appearance: customized according to customer’s requirement.
2. stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
3. Material of the cabinet: 304 / 316 grade stainless steel.
4. Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating /

baking finish.





Details show:



CE Approved 180 Degree Angle Swing Arm Barrier  / Automatic Pedestrian Swing Barrier 1
