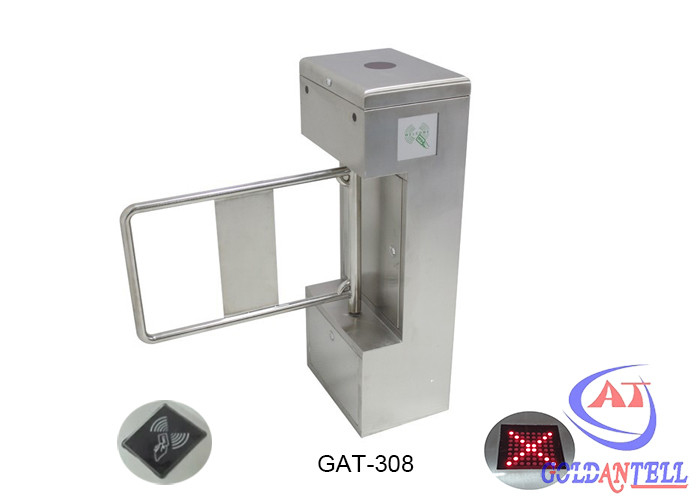

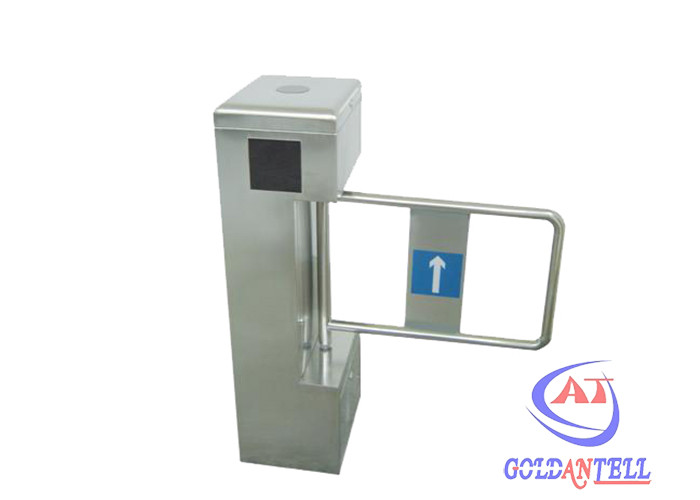

Durable Stainless Steel Swing Barrier Gate RS485 Port Turnstile Barrier Gate

Durable Stainless Steel Swing Barrier Gate RS485 Port Turnstile Barrier Gate

Description:

Goldantell swing turnstile is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies, It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment.



Classification:

• Bridge shape
• Vertical shape ( this item is the bridge shape ).
• Pillar shape

Specifications:

	Working voltage	AC220±10%V 50±10%HZ
	Size	380 (L) *280 (W) * 1000 (H)(MM)
	Passage width	530 mm - 830 mm
	Swing arm angle	180 degree
	Direction	single or bi-directional (optional)
	Time of opening/closing	1 second
	Control ways	Push button, RFID card, fingerprint recognition etc.
	Pass speed	40 persons/min (open), 25-30 persons/min (closed)
	Normal running life	3 million
	Working environment	indoor/outdoor (with a tent over) -10℃～70℃
	Driving motor	DC 24 V brush motor

Standard Function:

1. Pillar can heighten , telescopic arm lengthen, can choose materials.
2. Infrared reset function & Infrared induction clamp function.
3. Sound and light alarm prompt functions.
4. Normally open or closed can be adjust to meet the requirements of the different place
5. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
6. Turnstile can setting the working condition by press the button of main control board.
7. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet
the hinder during the reset time, the electrical machine closed work automatically in specified time, the
turnstile will default the delayed and reset again till reset succeed).
8. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction

gate.

9. Before received the open signal, the turnstile will lock automatically.
10. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision,
the arm will open to protect the Transmission of inner machine.
11. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if

you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset

time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
12. The turnstile can work with door access control system/ consumption system /biometric recognition
system/ ESD system and so on.
13. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
14. Can manager and long-range control the turnstile directly by managing the computer.



Application:

1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,

Museums,Apartments,Residence Area, Offices,Commercial buildings.

2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,

Fitness Gym.

3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit

Attendance.





Package:



1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.

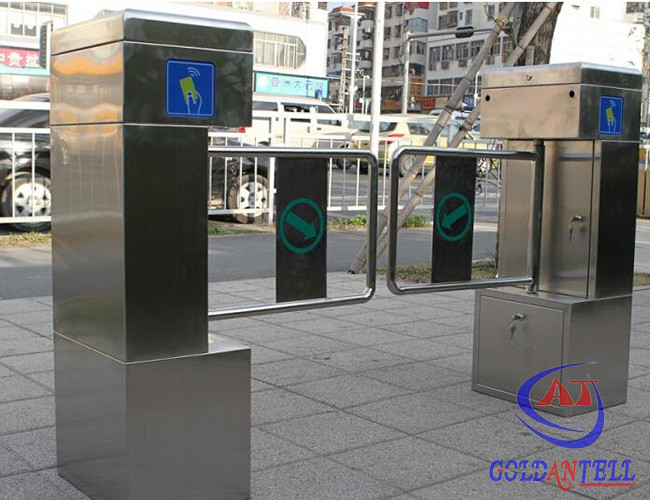

Project show:

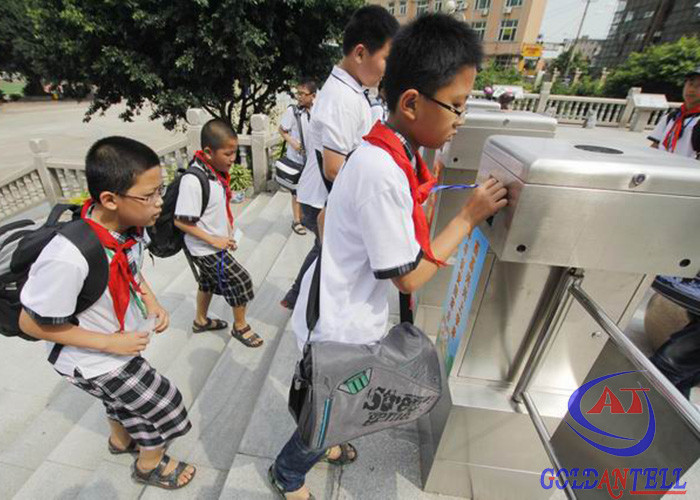

• Used at the entrance of the School, Apartments,Residence Area





Competitive Advantage:

1.All items have 24 month quality guarantee.
2.Custom design shape and logo ,for large amount, custom logo available for free.
3.Fast delivery.
4.Supported by professional engineers.
5.Special discount of our distributors or agents in their area.
6.Packing in standard export carton, suggest you pack it by wooden case to protect the products.
7. CE, ROSH available.

Appearance, Dimension, Material & Surface Finish

1. Appearance: customized according to customer’s requirement.
2. stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
3. Material of the cabinet: 304 / 316 grade stainless steel.
4. Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating /

baking finish.
