Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Size Of Product: | Diameter: Main Pole: Φ168mm Height: 1000mm | Material: | 304 Stainless Steel/316 Stainless Steel |
|---|---|---|---|
| Type: | Pillars Automatic Swing Barrier Gate | Communication Port: | RS485 ,TCP/IP |
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | OEM: | OEM Arm Length,custom Logo,custom Size |
| Net Weight: | 85KG/set | Gross Weight: | 90KG/set |
| Highlight: | swing gate turnstile,waist high turnstiles |
||

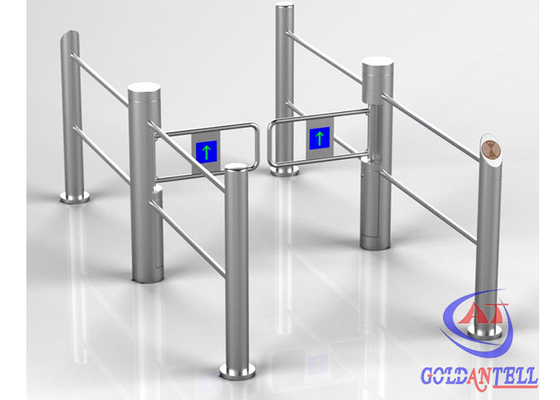

Automatic Flexible Running Swing Turnstile Durable Stainless Steel for Stores , Supermarket
Describtion:
Goldantell swing turnstile is a high tech product which mainly provides intelligent management to
passageway. This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies, It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments.
Specifications:
| Control ways | Push button, RFID card, fingerprint recognition etc. |
| Working voltage | AC220±10%V 50±10%HZ |
| Size | diameter: main pole: Φ168mm height: 1000mm |
| Passage width | 450-850mm |
| Swing arm angle | 180 degree |
| Direction | single or bi-directional (optional) |
| Time of opening/closing | 1 second |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Normal running life | 3 million |
| Working environment | indoor/outdoor (with a tent over) -10℃～70℃ |
| Driving motor | DC24V brush motor |
Standard Function:
1. Pillar can heighten , telescopic arm lengthen, can choose materials.
2. Infrared reset function & Infrared induction clamp function.
3. Sound and light alarm prompt functions.
4. Normally open or closed can be adjust to meet the requirements of the different place
5. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
6. Turnstile can setting the working condition by press the button of main control board.
7. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet
the hinder during the reset time, the electrical machine closed work automatically in specified time, the
turnstile will default the delayed and reset again till reset succeed).
8. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate. 9. Before received the open signal, the turnstile will lock automatically.
10. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision,
the arm will open to protect the Transmission of inner machine.
11. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you
didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time
is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
12. The turnstile can work with door access control system/ consumption system /biometric recognition
system/ ESD system and so on.
13. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
14. Can manager and long-range control the turnstile directly by managing the computer.
Application:
|
Public Places |
Supermarket, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices,Commercial buildings. |
|
Entertainment Places |
Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, |
|
Business Organizations |
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance |

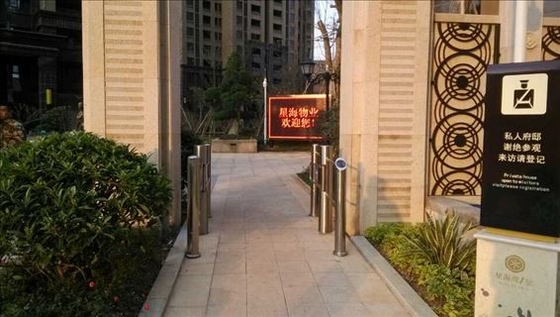

Project show:
Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
3. Material of the cabinet: 304 / 316 grade stainless steel.
4. Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.
