Anti Tail Security Airport Biometric Turnstile Barrier Led Display For School / Hotel

Name

Bridge Type Tripod Turnstile

Item Number

GAT-312

Brief Introduction

Goldantell tripod turnstile made of 304 /316 stainless steel,with nice and elegant shape,antirust,durable, Resistant to external damage

Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case .

Goldantell tripod turnstile divided into 3 kinds:

1)full automatic

2)semi-automatic

3)manual,

4)the semi-automatic is the most widely used.

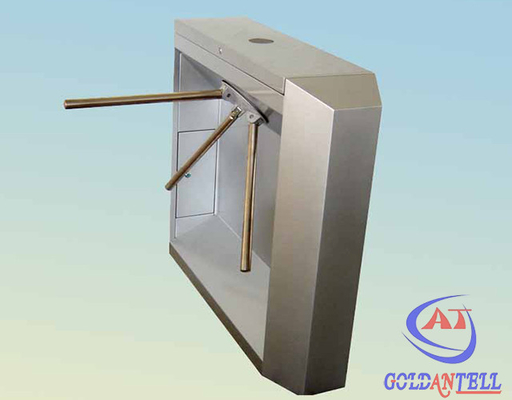

Goldantell Product Picture

Technical Parameters

Housing material: domestic standard 304# stainless steel

Working voltage: AC220±10%V 50±10%HZ

Working movement: DC24V solenoid valve

Size: 1200mm (L) * 280mm (W) * 980mm (H)

Arm width: 510 mm

Support force of arm: 60kg

Passage width: ≤600 mm

Direction: single or bi-directional (optional)

LED light: direction arrow

Working environment: indoor/outdoor (with a tent over) -10℃～70℃

Relative humidity: ≤90% coagulation free

Time of opening: 0.2 second

Pass speed: 30 persons/min

Emergence: When power off, arm open automatically

Normal running life: 3 million

Communication interface: standard RS485 interface, distance ≤1200m

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Goldantell Tripod Turnstile Standard Functions & Features

Tripod turnstile function & Features

Fully automatic

Semi automatic

Manual operation

1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.

√

×

×

2. Turnstile can setting the working condition by press the button of main control board.

√

√

×

3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.

Auto-drop-arm

Auto-drop-arm

NO action

4. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.

Auto-lift-arm

manual- lift –arm

NO action

5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you)

√

√

×

6. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

√

√

×

7. Once an open signal is give, the arms will rotate automatically to a certain angle, and prompt the pedestrian to pass the gate.

√

√

×

8. LED indicator light

√

√

×

9. When pedestrian pass the turnstile, what should they do?

Automatic-rotation

manual push the arm

manual push the arm

10. The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile)

√

√

×

11. Can manager and long-range control the turnstile directly by managing the computer.

√

√

×

12. LED counting function

√

√

×
