Product Details:
Payment & Shipping Terms:
|
Product Name: | Tripiod Turnstile | Size: | 1200*280*980mm |
---|---|---|---|
Material: | 304 Stainless Steel | Transmission: | All-electric Mechanical |
Power Supply: | 220~240 V(AC) | Compatible: | RFID/Fingerprint/Coin/QRcode/Barcode/ESD Tester |
Arm Width: | 500 Mm | Passage Width: | ≤600 Mm |
Highlight: | tripod barrier,tripod barrier gate |
Barcode System RFID Card Reader Access Control turnstile For Tourism / Sports
Goldantell Tripod Turnstile Introduction&Specification
Name |
Bridge Type Slope Tripod Turnstile |
Item Number |
GAT-301 |
|||
Brief Introduction |
||||||
Goldantell tripod turnstile made of 304 /316 stainless steel,with nice and elegant shape,antirust,durable, Resistant to external damage
Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case .
This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.
Goldantell tripod turnstile divided into 3 kinds: 1)full automatic 2)semi-automatic 3)manual,the semi-automatic is the most widely used. |
||||||

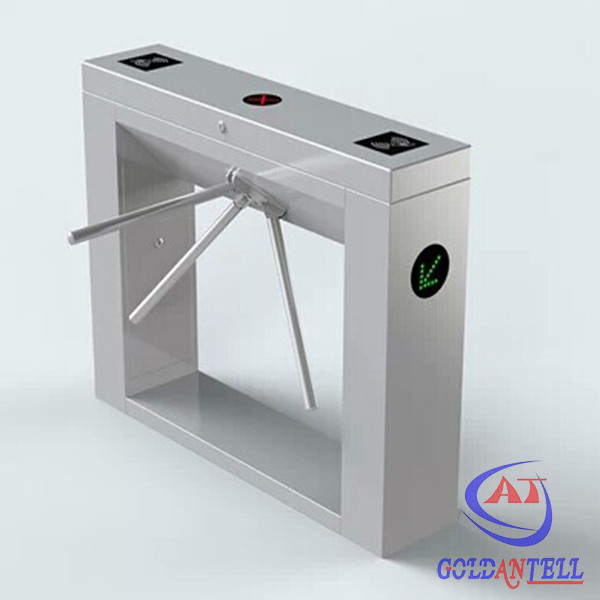

Goldantell Product Picture |
Technical Parameters |
|||||
|
Housing material: domestic standard 304# stainless steel |
|||||
Working voltage: AC220±10%V 50±10%HZ |
||||||
Working movement: DC24V solenoid valve |
||||||
Size: 1200mm (L) * 280mm (W) * 980mm (H) |
||||||
Arm width: 510 mm |
||||||
Support force of arm: 60kg |
||||||
Passage width: ≤600 mm |
||||||
Direction: single or bi-directional (optional) |
||||||
LED light: direction arrow |
||||||
Working environment: indoor/outdoor (with a tent over) -10℃~70℃ Relative humidity: ≤90% coagulation free |
||||||
Time of opening: 0.2 second |
||||||
Pass speed: 30 persons/min |
||||||
Emergence: When power off, arm open automatically |
||||||
Normal running life: 3 million |
||||||
Communication interface: standard RS485 interface, distance ≤1200m |
||||||
Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
||||||
Goldantell Tripod Turnstile Standard Functions & Features |
||||||
Tripod turnstile function & Features |
Fully automatic |
Semi automatic |
Manual operation |
|||
1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. |
√ |
× |
× |
|||
2. Turnstile can setting the working condition by press the button of main control board. |
√ |
√ |
× |
|||
3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again. |
Auto-drop-arm |
Auto-drop-arm |
NO action |
|||
4. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off. |
Auto-lift-arm |
manual- lift –arm |
NO action |
|||
5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you) |
√ |
√ |
× |
|||
6. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on |
√ |
√ |
× |
|||
7. Once an open signal is give, the arms will rotate automatically to a certain angle, and prompt the pedestrian to pass the gate. |
√ |
√ |
× |
|||
8. LED indicator light |
√ |
√ |
× |
|||
9. When pedestrian pass the turnstile, what should they do? |
Automatic-rotation |
manual push the arm |
manual push the arm |
|||
10. The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile) |
√ |
√ |
× |
|||
11. Can manager and long-range control the turnstile directly by managing the computer. |
√ |
√ |
× |
|||
12. LED counting function |
√ |
√ |
× |
System Integration
Integrate with visitor management system.
Integrate with ticketing system.
Integrate with access control system required by customers, and built-in reader appointed by customer.
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Application
Subway Station, Bus Station,Airports, Hoverport, Tourism Sports,Exhibition, Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package
2. we can provide not only product, but also system software management.Save your time and cost
3. Special service from Goldantell
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee
4. Friendly and professional salesman or sales girl
Tripod Turnstile Project
