Product Details:
Payment & Shipping Terms:
|
| Product Name: | Swing Barrier Gate | Size: | 1200*280*1000mm |
|---|---|---|---|
| Material: | 304 Stainless Steel | Compatible: | RFID/Fingerprint/Coin/QRcode/Barcode/ESD Tester |
| Pass Speed: | 30-40 Persons/min | Interface: | RS485, TCP/IP |
| Gross Weight: | 90KG | Warranty: | 2 Years |
| Package Size: | 1280*370*1070mm | ||
| Highlight: | swing gate turnstile,security swing gate |
||
Half Height Multiple Read Write Device Swing Gate Turnstile Remote
Controlled Button
Goldantell Swing Turnstile Introduction&Specification:
|
Name |
Bridge type swing turnstile |
Item number GAT-632 |
|
|
Goldantell Product Brief Introduction |
|||
|
Goldantell swing turnstile is a high-tech product which mainly provides intelligent management to passageway.This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
Classified into two kinds: single motor (suitable for single passageway and multiple passageway.) Double motors (suitable for multiple passageways) |
|||
|

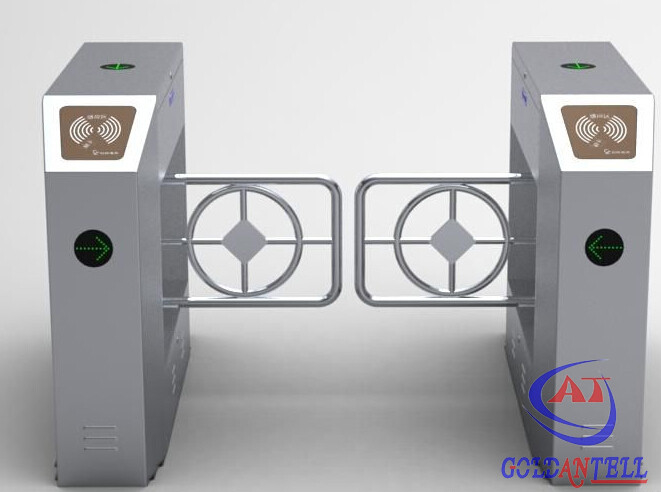

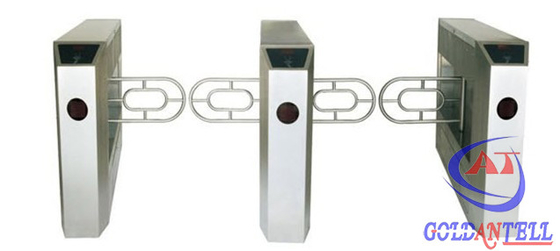

Goldanell Product Picture |
Technical parameters |
||
|
|
Housing material: domestic standard 304# stainless steel |
||
|
Working voltage: AC220±10%V 50±10%HZ |
|||
|
Driving motor: DC24V brush motor |
|||
|
Size: 1200mm (L) *280mm (W) *1000mm (H) |
|||
|
Passage width: 530-830mm |
|||
|
Swing arm angle: 180 degree |
|||
|
Direction: single or bi-directional (optional) |
|||
|
Working environment: indoor/outdoor (with a tent over) -10℃～70℃ Relative humidity: ≤90% coagulation free |
|||
|
Time of opening/closing: 1 second |
|||
|
Pass speed: 40 persons/min (open), 25-30 persons/min (closed) |
|||
|
Time to work after power on: 3 seconds |
|||
|
Reset time after break down: 10 seconds |
|||
|
Normal running life: 3 million |
|||
|
Communication interface: standard RS485 interface, distance ≤1200m |
|||
|
Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
|||
Swing Barrier Gate Features:
1. Turnstile can setting the working condition by press the button of main control board.
2. Can manager and long-range control the turnstile directly by managing the computer.
3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions
4. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
5. Before received the open signal, the turnstile will lock automatically
6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine .
Appearance, Dimension, Material
Appearance: customized according to customer’s requirement.
Material of the cabinet: 304 / 316 grade stainless steel.
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system ; ticketing system.
Application
Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,
Toll Management,Special Access Control ,Subway Station, Bus Station,Airports, Hoverport,
Hotel,Factory,Bank,Prison,Hospital,School,Library,
Theater,Canteen,Swimming Hall,Fitness Gym,.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. Ticket ,Barcode,ESD,Fingerprint,RFID,we all can do it !!
3. 3 years Guarantee,and during one year if the parts have any artifical damage ,we will send to you the
parts for free let you fix it .
4. Nice service and after sales service.
