Anti Hitting And Preventing Clipping Swing Barrier Gate IP54 Automatic

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

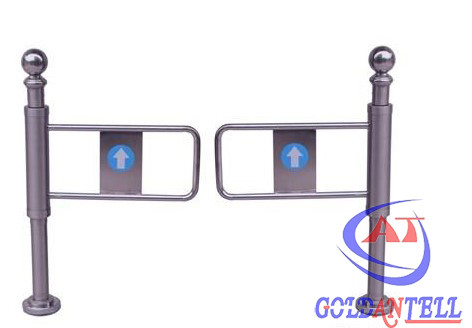

Anti Hitting And Preventing Clipping Swing Barrier Gate IP54 Automatic

Anti Hitting And Preventing Clipping Swing Barrier Gate IP54 Automatic
Anti Hitting And Preventing Clipping Swing Barrier Gate IP54 Automatic

Large Image :  Anti Hitting And Preventing Clipping Swing Barrier Gate IP54 Automatic

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/SGS/IS9001
Model Number: GAT-613
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Inside carton outside wooden case or crate Package
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Swing Barrier Gate Size: 168mm
Material: 304 Stainless Steel Compatible: RFID/Fingerprint/Coin/QRcode/Barcode/ESD Tester
Pass Speed: 30-40 Persons/min Interface: RS485, TCP/IP
Gross Weight: 50KG Net Weight: 40KG
OEM: OEM Arm Length,custom Logo,custom Size Shipping Terms: By Sea/Air/Express
Highlight:

security swing gate

,

waist high turnstiles



Anti Hitting And Preventing Clipping Swing Barrier Gate IP54

Automatic



Goldantell Swing Turnstile Introduction&Specification

Name

Pillars type swing turnstile

Item number GAT-613

Goldantell Product Brief Introduction

Goldantell swing turnstile is a high-tech product which mainly provides intelligent management to passageway.This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.



Classified into two kinds:

single motor (suitable for single passageway and multiple passageway.)

Double motors (suitable for multiple passageways)

Goldanell Product Picture

Technical parameters

Anti Hitting And Preventing Clipping Swing Barrier Gate IP54 Automatic 0







Housing material: domestic standard 304# stainless steel

Working voltage: AC220±10%V 50±10%HZ

Driving motor: DC24V brush motor

Size: 168mm

Passage width: 530-830mm

Swing arm angle: 180 degree

Direction: single or bi-directional (optional)

Working environment: indoor/outdoor (with a tent over) -10℃~70℃

Relative humidity: ≤90% coagulation free

Time of opening/closing: 1 second

Pass speed: 40 persons/min (open), 25-30 persons/min (closed)

Time to work after power on: 3 seconds

Reset time after break down: 10 seconds

Normal running life: 3 million

Communication interface: standard RS485 interface, distance ≤1200m

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA









































































Swing Barrier Gate Features

1 . Alarm function:when arms are pushed by force illegally, alarm will be triggered

automatically and arms will be set locked.

2 . Turnstile can setting the working condition by press the button of main control board.

3 . Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions

4 . The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into

negative direction gate.

5 . Before received the open signal, the turnstile will lock automatically

6 . The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision,

the arm will open to protect the Transmission of inner machine.

7 . Infrared induction clamp function (4 pairs Infrared)

8 . Infrared reset function (Optional:4 pairs or 6 pairs Infrared)

9 . Automatic Reset Functions



Appearance, Dimension, Material

Appearance: customized according to customer’s requirement.

       Material of the cabinet: 304 / 316 grade stainless steel.



System Integration

Integrate with access control system required by customers, and built-in reader appointed by customer.

Integrate with visitor management system ,



Application

Residence Area,Enterprise’s Entrance and Exit Attendance,

Gateway Guard,Toll Management,Special Access Control ,Subway Station,

Bus Station,Airports, Hoverport,

Hotel,Factory,Bank,Prison,Hospital,School,Library,

Theater,Canteen,Swimming Hall,Fitness Gym,.



Competitive Advantage

1 . More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom

package

2 . Ticket ,Barcode,ESD,Fingerprint,RFID,we all can do it !!

3 . 3 years Guarantee,and during one year if the parts have any artifical damage ,we will send to you the

parts for free let you fix it

4 . Nice service and after sales service



Project Showing

Anti Hitting And Preventing Clipping Swing Barrier Gate IP54 Automatic 1
