Column Manual Single Direction Swing Barrier Gate , Supermarket Arm Barrier

Column Manual Single Direction Swing Barrier Gate , Supermarket Arm Barrier
Column Manual Single Direction Swing Barrier Gate , Supermarket Arm Barrier Column Manual Single Direction Swing Barrier Gate , Supermarket Arm Barrier

Large Image :  Column Manual Single Direction Swing Barrier Gate , Supermarket Arm Barrier

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/SGS/IS9001
Model Number: GAT-611
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Inside carton outside wooden case or crate Package
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Swing Barrier Gate Size: 168mm
Material: 304 Stainless Steel Compatible: RFID/Fingerprint/Coin/QRcode/Barcode/ESD Tester
Pass Speed: 30-40 Persons/min Interface: RS485, TCP/IP
Gross Weight: 50KG/pair Net Weight: 40KG/pair
Highlight:

swing gate turnstile

,

security swing gate



Column Manual Single Direction Swing Barrier Gate , Supermarket Arm Barrier



Goldantell Swing Turnstile Introduction&Specification:

Name

Pillars type swing turnstile

Item number GAT-611

Goldantell Product Brief Introduction

Goldantell swing turnstile is a high-tech product which mainly provides intelligent management

to passageway.This product is finely processed with complete functions and high level, suitable

for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.



Classified into two kinds:

single motor (suitable for single passageway and multiple passageway.)

Double motors (suitable for multiple passageways)

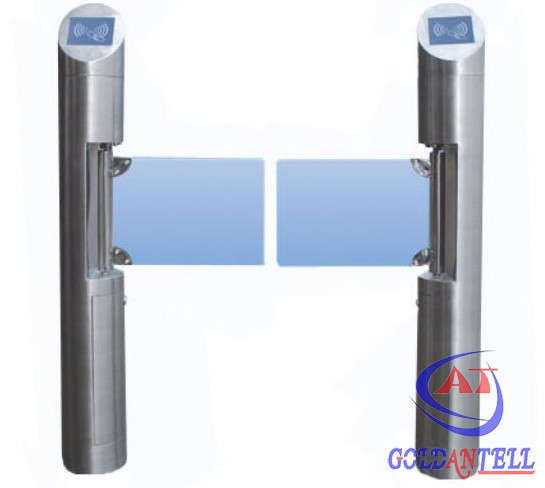

Goldanell Product Picture

Technical parameters

Column Manual Single Direction Swing Barrier Gate , Supermarket Arm Barrier 0







Housing material: domestic standard 304# stainless steel

Working voltage: AC220±10%V 50±10%HZ

Driving motor: DC24V brush motor

Size: 168mm

Passage width: 530-830mm

Swing arm angle: 180 degree

Direction: single or bi-directional (optional)

Working environment: indoor/outdoor (with a tent over) -10℃~70℃

Relative humidity: ≤90% coagulation free

Time of opening/closing: 1 second

Pass speed: 40 persons/min (open), 25-30 persons/min (closed)

Time to work after power on: 3 seconds

Reset time after break down: 10 seconds

Normal running life: 3 million

Communication interface: standard RS485 interface, distance ≤1200m

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA







































































Swing Barrier Gate Features:

1. Alarm function:when arms are pushed by force illegally, alarm will be triggered

automatically and arms will be set locked.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions

4. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into

negative direction gate.

5. Before received the open signal, the turnstile will lock automatically

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision,

the arm will open to protect the Transmission of inner machine.

7. Infrared induction clamp function (4 pairs Infrared)

8. Infrared reset function (Optional:4 pairs or 6 pairs Infrared)

9. Automatic Reset Functions

10. The turnstile can work with door access control system/ consumption system /biometric recognition

system/ ESD system and so on .



Appearance, Dimension, Material

Appearance: customized according to customer’s requirement.

       Material of the cabinet: 304 / 316 grade stainless steel.



System Integration

Integrate with access control system required by customers, and built-in reader appointed by customer.

Integrate with visitor management system



Application

Residence Area,Enterprise’s Entrance and Exit Attendance,

Gateway Guard,Toll Management,Special Access Control ,Subway Station,

Bus Station,Airports, Hoverport,

Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym,.



Competitive Advantage

1.More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom

package.

2. Ticket ,Barcode,ESD,Fingerprint,RFID,we all can do it !!

3. 3 years Guarantee,and during one year if the parts have any artifical damage ,we will send to you the

parts for free let you fix it .

4.Nice service and after sales service.

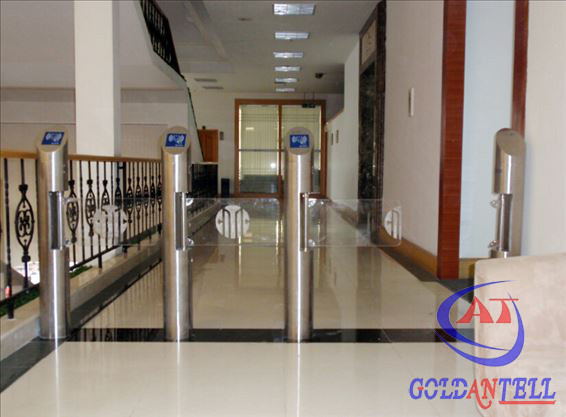

Project Showing

Column Manual Single Direction Swing Barrier Gate , Supermarket Arm Barrier 1
