Product Details:
Payment & Shipping Terms:
|
| Material: | 304 Stainless Steel/316 Stainless Steel | Type: | Three Arm / Rail Turnstile |
|---|---|---|---|
| Size Of Product: | 1200*280*1000mm | Package Size: | 1280*370*1080mm |
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Communication Port: | RS485 ,TCP/IP |
| Application: | Pulic Toilelt, Park, Office Building, Club, Etc. | Net Weight: | 65KG |
| Gross Weight: | 70KG | Product Name: | 304 SUS Automatic Tripiod Turnstile |
| High Light: | tripod access system,tripod barrier |
||

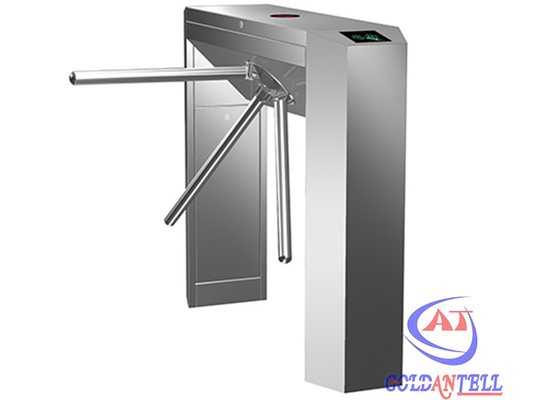

Bidirectional Pedestrian Tripod Turnstile Gate With Access Control System / LED Indicator Lamp / Alarm Light
Application:
1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.
Specifications:
| Item Number |
GAT-305 |
| Technical Parameters | |
| Housing material |
domestic standard 304# stainless steel |
| Size |
1200mm (L) * 280mm (W) * 1000mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: |
When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Description:
1. Standard features: Made of 304 /316 stainless steel,Goldantell tripod turnstile with nice and elegant
shape, anti- rust,durable, Resistant to external damage.
2. Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to
people. Prevent illegal in and out.Arms off in emergency case.
3. Application place: This item is widely used in station,pier,subway,factory,office building,intelligent
community, hotel, clubs, enterprise, etc.
4. System Integration: This equipment is integrated with mechanism,electric and micro- controller and
various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to
provide intelligent control and management to flow control.
5. Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.
Comparison of three kinds of tripod turnstiles:
| Tripod turnstile function & Features |
Fully |
Semi |
Manual |
|
1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.
|
√ | × | × |
|
2. Turnstile can setting the working condition by press the button |
√ | √ | × |
|
3. Auto-lift-arm function: the arm can lift automatically with alert |
Auto-lift-arm |
manual- |
NO action |
|
4. Auto-drop-arm function: the arm can drop down automatically
|
Auto- drop-arm |
Auto- |
NO action |
|
5. Automatic Reset Functions: after you swap the card, during |
√ | √ | × |
|
6. The turnstile can work with door access control system/ |
√ | √ | × |
|
7. Once an open signal is give, the arms will rotate |
√ | √ | × |
|
8. LED indicator light |
√ | √ | × |
| 9. When pedestrian pass the turnstile, what should they do? | Automatic-rotation |
manual |
manual |
|
10. The turnstile is bidirectional (pedestrian can enter and |
√ | √ | × |
|
11. Can manager and long-range control the |
√ | √ | × |
| 12. LED counting function | √ | √ | × |
Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. Material of the cabinet: 304 / 316 grade stainless steel.
3. Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
4. Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating /
baking finish.
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear
any fee.
System Integration:
1. we can offer the access control system: fingerprint recognition/ card reader / QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
