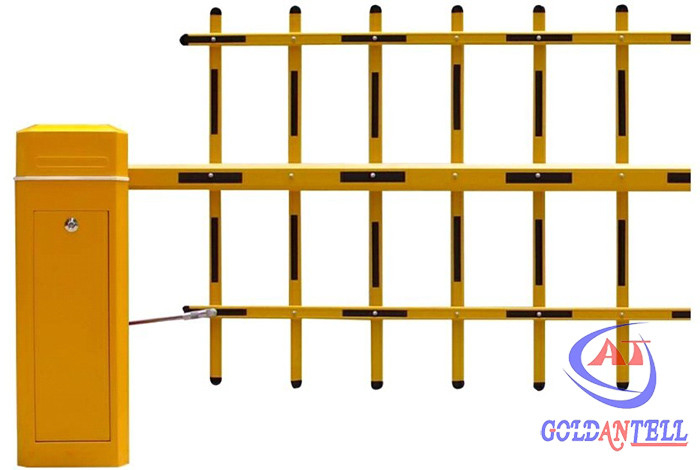

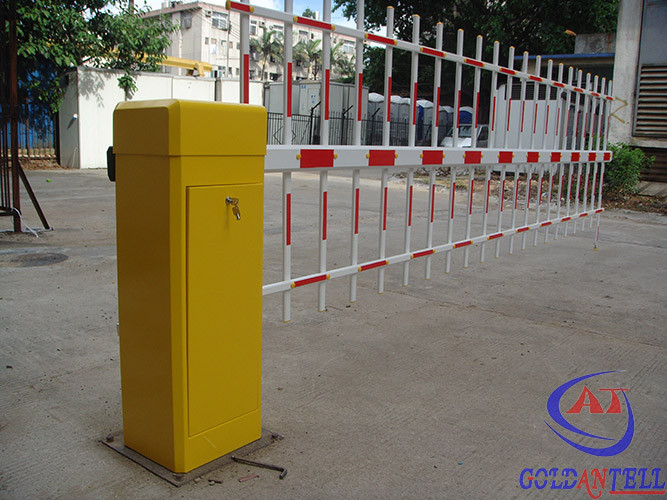

RFID Automated Parking Barrier Gate Retractable Barrier Gate System ODM / OEM

RFID Automated Parking Barrier Gate For Retractable Parking Barrier

Description:
1. We are specialized in manufacturing integrated intelligent barrier gate.
2. With international advanced technology, we realize the automatization & intellectualization of barrier gate, which could be operated safely, conveniently and quickly.
3. Please note: this item has three pieces of the fence.


Specifications

Functions & features:
1. Safety--- Anti-hit by IR photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
2. Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.
3. Anti-collision protects boom arm (optional)
Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once boom arm was collided by a vehicle.
4. Safety--- Anti-hit by pressure resistance bounce
While moving down,arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.
5. Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.


Project schemes:
1. We offer a complete set of the tolling parking system, including barrier gate, ballot boxes, vehicle detector, Entrance control system main board, System special switching power supply, parking lot system management software with dongle , etc.
2. Except the product, also offer the RFID card reader control system.
3. Only the boom barrier gate, you can use the button or remote controller to control it.



Factory Display:

Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4. Friendly and professional customer service people help you in 16 hours.

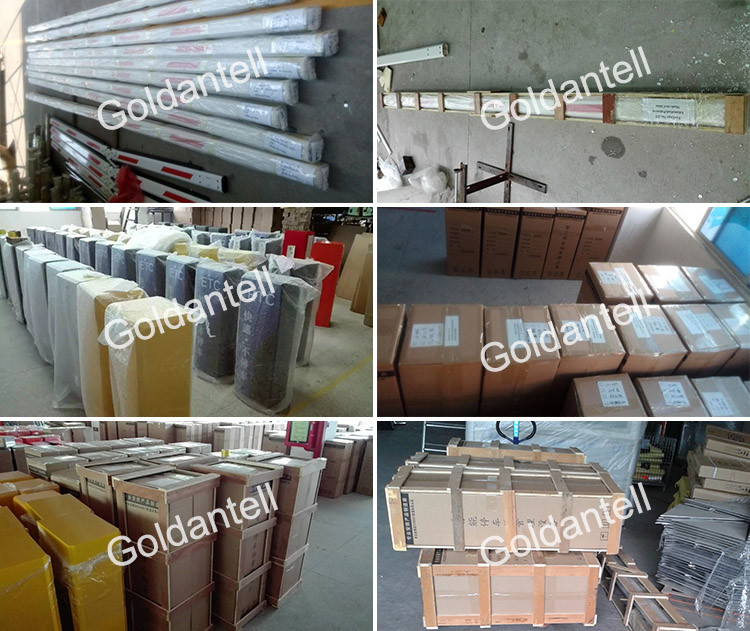

Package Instruction:
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box. Packed in carton firstly, and then reinforced with export wooden case or crate for outer packing.
