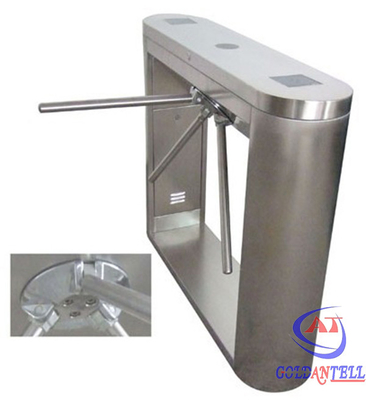

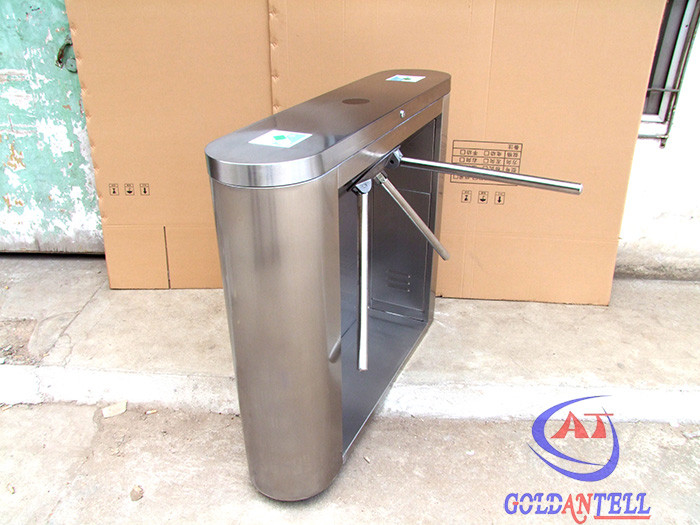

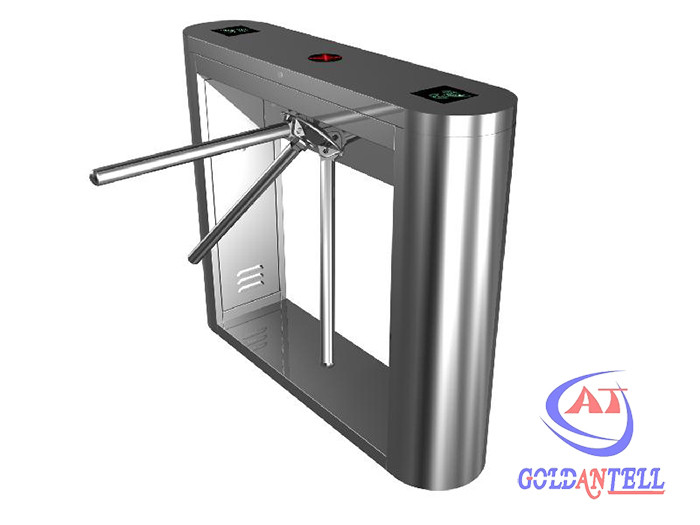

Intelligent Security Tripod Turnstile Gate 220V / 110V Working Power
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-302 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 304 SUS Tripiod Turnstile | Material | 304 Stainless Steel/316 Stainless Steel |
|---|---|---|---|
| Type | Three Arm / Rail Turnstile | Size Of Product | 1200*280*1000mm |
| Package Size | 1310*370*1080mm | Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Communication Port | RS485 ,TCP/IP | Application | Pulic Toilelt, Park, Office Building, Club, Etc. |
| Net Weight | 65KG | Gross Weight | 70KG |
| Highlight | tripod access system,tripod barrier gate |
||
Product Description
Intelligent Security Tripod Turnstile Gate 220V / 110V Working Power
Product Specifications
| Item Number | GAT-302 Full automatic; Semi-automatic; Manual |
|---|---|
| Housing material | Domestic standard 304# stainless steel |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Arm width | 510 mm |
| Support force of arm | 60kg |
| Passage width | ≤600 mm |
| Time of opening | 0.2 second |
| Pass speed | 30 persons/min |
| Emergence | When power off, arm open automatically |
| Normal running life | 3 million |
| LED light | Direction arrow |
| Direction | Single or bi-directional (optional) |
| Working environment | Indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity | ≤90% coagulation free |
| Communication interface | Standard RS485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Appearance, Dimension, Material & Surface Finish
- Appearance: customized according to customer's requirement
- Material of the cabinet: 304 / 316 grade stainless steel
- Stainless steel thickness of the cabinet: customized within 1.2~2.0mm
- Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish
Product Features
Standard features: Made of 304 /316 stainless steel, Goldantell tripod turnstile with nice and elegant shape, anti-rust, durable, resistant to external damage.
Standard Functions: Rectangular box and brake lever to be a passage, provide orderly passage to people. Prevent illegal in and out. Arms off in emergency case.
Application Places
This item is widely used in station, pier, subway, factory, office building, intelligent community, hotel, clubs, enterprise, etc.
System Integration
This equipment is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on, to provide intelligent control and management to flow control.
Classification
- Full automatic
- Semi-automatic (most widely used)
- Manual
Comparison of Three Kinds of Tripod Turnstiles
| Tripod turnstile function & Features | Fully automatic | Semi automatic | Manual operation |
|---|---|---|---|
| Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. | √ | * | * |
| Turnstile can setting the working condition by press the button of main control board. | √ | √ | * |
| Auto-lift-arm function: the arm can lift automatically with alert when the power is on again. | Auto-drop-arm | Auto-drop-arm | NO action |
| Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off. | Auto-lift-arm | Manual-lift-arm | NO action |
| Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn't pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). | √ | √ | * |
| The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on. | √ | √ | * |
| Once an open signal is give, the arms will rotate automatically to a certain angle,and prompt the pedestrian to pass the gate. | √ | √ | * |
| LED indicator light | √ | √ | * |
| When pedestrian pass the turnstile, what should they do? | Automatic-rotation | Manual push the arm | Manual push the arm |
| The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile). | √ | √ | * |
| Can manager and long-range control the turnstile directly by managing the computer. | √ | √ | * |
| LED counting function | √ | √ | * |
Commonly Used Control Methods & Cases
| Control ways | Pictures | Application place |
|---|---|---|
| Coin operation | |
Restroom, park |
| Fingerprint recognition | Gym, sport club, buildings, office | |
| RFID card reader | Office | |
| Manual Button with counter | Buildings entrance |
Competitive Advantages
- More than 10 years powerful ODM/OEM ability, could make product shape design, custom logo, custom package.
- We can provide not only product, but also system software management. Save your time and cost.
- Special service from Goldantell: For repairing, no need you return back product, only need you take a video, our engineer will instruct you, if spare parts was damaged in 1 year, we will send you spare parts by fastest express, you no need bear any fee.
- Friendly and professional customer service people help you in 16 hours.
