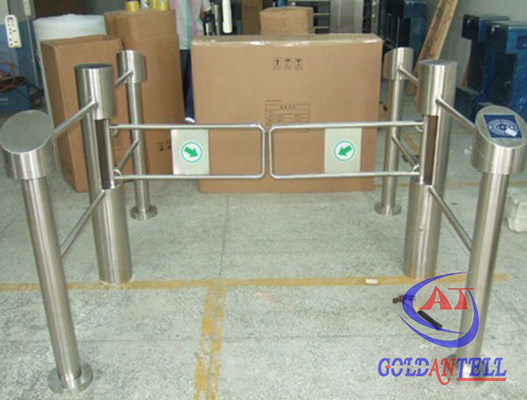

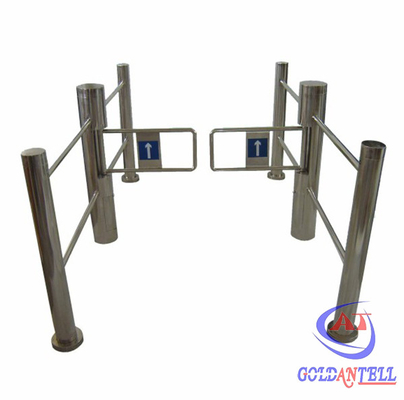

Full Automatic Bi-directional Swing Barrier Gate Security For Supermarket 120 - 160 mm Width

Full Automatic Bi-directional Swing Barrier Gate Security For Supermarket 120 - 160 mm Width

Appearance, Dimension, Material & Surface Finish

1. Appearance: customized according to customer’s requirement.

2. stainless steel thickness of the cabinet: customized within 1.2~2.0mm.

3. Material of the cabinet: 304 / 316 grade stainless steel.

4. Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.

Specifications:

Project cases introductions

Different applications	pictures	Details introductions
1. be used individually		1. Can be controlled with button or access control system llike RFID card reader.   2. The rail length can be custom, 600~900 mm.
2. Be used in pairs		1. Can be controlled with button or access control system like RFID card reader.   2. The passage width can be custom, 120~160 mm.
3. Be used with guardrail		1. Usually used in the supermarket.   2. The guardrail with Infrared reset function & Infrared induction clamp function.   3. The quantity of the guardrails can be custom according to your requirements.

Standard Function:

1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet

the hinder during the reset time, the electrical machine closed work automatically in specified time, the

turnstile will default the delayed and reset again till reset succeed).

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. Before received the open signal, the turnstile will lock automatically.

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you

didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time

is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.

8.The turnstile can work with door access control system/ consumption system /biometric recognition

system/ ESD system and so on.

9. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).

10. Can manager and long-range control the turnstile directly by managing the computer.

Extensible function:

1. Pillar can heighten , telescopic arm lengthen, can choose materials.

2. Infrared reset function & Infrared induction clamp function.

3. Sound and light alarm prompt functions.

4. Normally open or closed can be adjust to meet the requirements of the different place.
