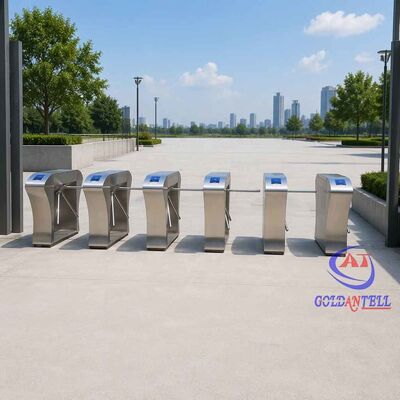

Brushless Fingerprint Tripod Turnstile Dual RFID Reader Access Control for Business Center and Coworking Space CE
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-341 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Product Details
| Net Weight | 65KG | Material | 304 Stainless Steel/316 Stainless Steel |
|---|---|---|---|
| Product Size | 1200mm (L) * 280mm (W) * 1000mm (H) | Communication Port | RS485 ,TCP/IP |
| Working Voltage | AC220±10%V 50±10%HZ | Arm Width | 510 Mm |
| Pass Speed | 30 Persons/min | Working Environment | Indoor/outdoor (with A Tent Over) -10℃～70℃ |
| Highlight | Brushless fingerprint tripod turnstile,Dual RFID reader access control,CE certified tripod turnstile gate |
||
Product Description
Brushless Fingerprint Tripod Turnstile Dual RFID Reader Access Control
Professional access control system designed for business centers and coworking spaces. CE certified for quality assurance.
Access Control System Options
- Multiple authentication methods: fingerprint, face recognition, card reader, QR code, barcode ticket system
- Special functions: counter operation, coin operation
- ESD tester system and function integration
Technical Specifications
| Size | 1200 mm (L) × 280 mm (W) × 980 mm (H) |
| Working Voltage | AC220±10%V 50±10%HZ |
| Arm Width | 510 mm |
| Support Force of Arm | 60 kg |
| Passage Width | ≤600 mm |
| Opening Time | 0.2 second |
| Pass Speed | 30 persons/min |
| Emergency Feature | Automatic arm opening when power fails |
| Normal Running Life | 3 million cycles |
| LED Light | Direction arrow indicator |
| Direction | Single or bi-directional (optional) |
| Working Environment | Indoor/outdoor (with tent) -10℃～70℃ |
| Relative Humidity | ≤90% coagulation free |
| Communication Interface | Standard RS 485 interface, distance ≤1200m |
| Housing Material | Domestic standard 304# stainless steel |
| Working Movement | DC 24V solenoid valve |
| Input Interface | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
Applications
- Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym
- Public Places: Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadium, Museums, Apartments, Residence Area, Offices, Commercial buildings
- Business Organizations: Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance
Features & Functions
- Security: Active arm drops clear in emergencies, arms cannot be removed without special tools, mechanism cannot be forced
- Flexibility: Removable end covers for easy integration, numerous configurations for all pedestrian access control cases
- Economic: Inactive arms don't hinder passage, simple installation process
Product Description
- Integrated mechanism, electric and micro-controller with various identification technologies
- Compatible with IC, ID, barcode, fingerprint reader and more
- Made of 304/316 stainless steel with elegant, anti-rust, durable design
- Standard functions include rectangular box and brake lever for orderly passage control
- Available in full automatic, semi-automatic, and manual configurations
- Widely used in stations, piers, subway, factories, office buildings, intelligent communities, hotels, clubs, and enterprises
Project Cases
| Access Control System | Real Pictures |
|---|---|
| Coin Operation |
Real coin operation system
Design diagram for coin operation
|
| Fingerprint Recognition |
Fingerprint recognition system
|
Customization Options
- Appearance: Customized according to customer requirements
- Cabinet Material: 304/316 grade stainless steel
- Stainless Steel Thickness: Customized within 1.2~2.0mm
- Surface Finish: Satin finish, polishing, anti-fingerprint, frosted finish, electroplating, baking finish
Packaging Options
- With access control system: Closed wooden case packing
- Without access control system: Choice of crate or closed wooden box
Competitive Advantages
- Over 10 years of ODM/OEM capability with custom product design, logo, and packaging
- Friendly professional customer service available within 16 hours
- Complete product and system software management solutions
- Special repair service: Video-based technical support with free spare parts replacement within 1 year
