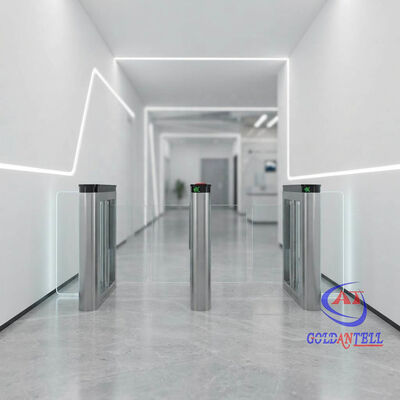

ADA Compliant Wide Lane Swing Turnstile AI Anti-tailgating Speed Gate for Wheelchair and High-Security Public Entrance CE

  • ADA Compliant Wide Lane Swing Turnstile AI Anti-tailgating Speed Gate for Wheelchair and High-Security Public Entrance CE
Place of Origin Guangdong, China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-686
Document 1-CE Certificate For Intell...te.pdf
Minimum Order Quantity 1
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month
Product Details
Barrier Open Time 0.2 S Barrier Motor Brushless Motor
Power Supply AC 100-240Volt Access Control Type RFID Card, QR Code
Lane Width 60cm, 90cm (custom 90~120cm) Protection Level IP54
Dimension 1400 * 200 * 1000 Mm Working Temperature -10℃ ~ 70℃
Highlight

ADA compliant swing turnstile

,

wide lane speed gate wheelchair

,

AI anti-tailgating security turnstile
Leave a Message
Product Description
ADA Compliant Wide Lane Swing Turnstile AI Anti-tailgating Speed Gate

Designed for wheelchair accessibility and high-security public entrances with CE certification.

Applications

Access Width: Within 900mm space, providing comfortable passage for pedestrians.

  • Public Places: Lobby entry, subway, airports, stations, library, bookstores, parks, exhibition halls, stadium, museums, apartments, residence areas, offices, commercial buildings
  • Entertainment Places: Movie theaters, fitness halls, country clubs, fairgrounds, clubs, swimming halls, fitness gyms
  • Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, enterprise entrance and exit attendance
ADA Compliant Swing Turnstile in public setting Wide lane turnstile installation
Dimension Drawing

Compatible with access control systems including ticket systems (bar code/QR code/2D code) and RFID cards control.

Turnstile dimension drawing and specifications
Goldantell Turnstile Performance

Intelligent series of turnstile gates with excellent design and performance, utilizing innovative technology and high-quality materials.

  • Standard features: Made of 304 stainless steel; IP54 waterproof rating with elegant, anti-rust, durable design
  • CE Certified
  • Default system setting: Free open for passing during power failure
  • System Integration: Compatible with RFID/fingerprint/QR or barcode/ESD access control systems
Functions and Characteristics
  • Self-examination and alarm function for convenient maintenance
  • Programmable running status via main board keyboard
  • Anti-pinch protection to prevent injuries
  • Light and sound alarm for illegal entry and tailgating
  • Automatic door locking until opening signal received
  • Adjustable door synchronization
  • Automatic reset function with adjustable passing time
  • Optional information display (LCD screen)
  • Audible sound prompts
Specifications
Type High speed gate & full automatic Swing Turnstile
Product Model GAT-686
Product Size 1400*200*1000mm
Path width Within 900mm (for one pair)
Direction Single or bi-directional (optional)
Time of opening/closing 0.6 second
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down 10 seconds
Normal running life 3 million cycles
Working environment Indoor/outdoor (with tent) -10℃~70℃
Drive motor DC24V brush motor
Product Display
Detailed product display of swing turnstile
Customized OEM/ODM Service
  • Company logo printing for elegant branding
  • Customized design: Adjustable length, width, and shape
  • Optional LED indicators and LCD display screens

Special LED light indicator in the front of gate: Green color for entry

Customized LED light indicator for entry

Elegant design, high operation performance, economic cost

Goldantell Application Projects

Our service: Proper turnstile type recommendations based on installation location to save cost and time.

Goldantell turnstile application projects showcase
Company & Factory Brief Info

Shenzhen Goldantell Technologies Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with over 8 years of experience.

Main products include intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control and parking systems. Exported to over 50 countries with long-term client partnerships.

Shenzhen Goldantell Technologies factory and facilities
CE Certification

All turnstiles are CE certified for quality and safety standards.

CE Certification documentation for turnstile products
