Customer Flow Guidance Barrier SUS304 Swing Gate for Hypermarket and Grocery Shop Entry Contactless ID Integration CE

  • Customer Flow Guidance Barrier SUS304 Swing Gate for Hypermarket and Grocery Shop Entry Contactless ID Integration CE
  • Customer Flow Guidance Barrier SUS304 Swing Gate for Hypermarket and Grocery Shop Entry Contactless ID Integration CE
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-612
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C
Supply Ability 2,000pcs per month
Product Details
Type Half Height Swing Turnstile Communication Port RS485, TCP/IP
Material 304 Stainless Steel/316 Stainless Steel Net Weight 85KG/set
Gross Weight 90KG/set Size Diameter: Main Pole: Φ168mm Height: 1000mm
Working Voltage AC220±10%V 50±10%HZ Passage Width 450-850mm
Highlight

SUS304 swing gate for hypermarket

,

contactless ID integration security turnstile

,

CE certified grocery shop entry barrier
Leave a Message
Product Description
Product Overview

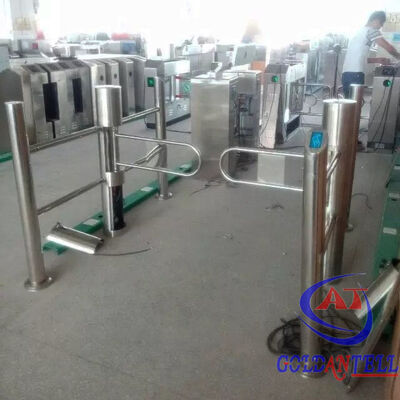

The SUS304 Swing Gate is a customer flow guidance barrier engineered for hypermarket and grocery shop entry management. It supports contactless ID integration and CE compliance, delivering reliable, high-throughput pedestrian control for retail environments.

Appearance, Dimensions, Material & Surface Finish
  • Appearance: Customized according to customer requirements.
  • Cabinet stainless steel thickness: Customizable within 1.2–2.0 mm.
  • Cabinet material: 304 or 316 grade stainless steel.
  • Cabinet surface finish: Satin finish, polishing, anti-fingerprint, frosted finish, electroplating, or baking finish.
Technical Specifications
Working Voltage AC220±10%V, 50±10%Hz
Size Main pole diameter: Φ168 mm; height: 1000 mm
Passage Width 450–850 mm
Swing Arm Angle 180 degrees
Direction Single or bi-directional (optional)
Opening / Closing Time 1 second
Pass Speed 40 persons/min (open); 25–30 persons/min (closed)
Normal Running Life 3 million cycles
Working Environment Indoor / outdoor (with a tent over), −10°C to 70°C
Driving Motor DC24V brush motor
Control Ways Push button, RFID card, fingerprint recognition, etc.
Project Case Applications
Application Reference Image Details
Used individually Single SUS304 swing gate installed for individual pedestrian entry control
  1. Can be controlled with a push button or an access control system such as an RFID card reader.
  2. Rail length is customizable, 600–900 mm.
Used in pairs Pair of SUS304 swing gates configured for dual-lane pedestrian passage
  1. Can be controlled with a push button or an access control system such as an RFID card reader.
  2. Passage width is customizable, 120–160 mm.
Used with guardrail SUS304 swing gate combined with guardrail for supermarket customer flow guidance
  1. Typically used in supermarkets.
  2. Guardrail features infrared reset and infrared induction clamp functions.
  3. Guardrail quantity is customizable to meet specific requirements.
Standard Functions
  1. The gate is bidirectional, using infrared sensing to manage entry and exit through the passageways.
  2. The turnstile working condition can be configured via the main control board button.
  3. Anti-pinch function: Mechanical and infrared induction anti-pinch protection. If an obstruction is detected during reset, the motor automatically stops for a specified time, then the turnstile defaults to a delayed reset and retries until the reset succeeds.
  4. The turnstile locks when an illegal entry, tailgating, or negative-direction break-in is detected.
  5. Before receiving an open signal, the turnstile locks automatically.
  6. Collision avoidance: When the arm is closed and subjected to a collision, the arm opens to protect the internal transmission mechanism.
  7. Automatic reset: After card swiping, if the user does not pass within the specified time (system default 10 s), authority is automatically cancelled. Reset time is adjustable from 1–60 s to suit individual requirements and fully meet fire protection needs.
  8. Compatible with door access control systems, consumption systems, biometric recognition systems, ESD systems, and more.
  9. Bidirectional operation — pedestrians can enter and exit from one pair of turnstiles.
  10. Direct management and long-range control of the turnstile via a managing computer.
Extensible Functions
  • Pillar height extension and telescopic arm lengthening; alternative materials available.
  • Infrared reset function and infrared induction clamp function.
  • Sound and light alarm prompt functions.
  • Normally open or normally closed modes adjustable to meet the requirements of different locations.
