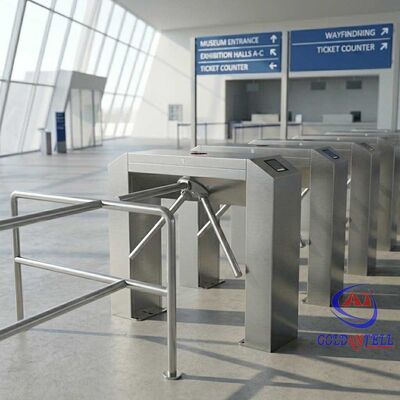

High-Cycle 3-Bar Turnstile Rapid Transit Rotating Barrier for Commuter Hub Identity Verification Motor-driven SUS304 CE
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/SGS/IS9001 |
| Model Number | GAT-305 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Product Details
| Material | 304 Stainless Steel/316 Stainless Steel | Type | Three Arm / Rail Turnstile |
|---|---|---|---|
| Size Of Product | 1200*280*1000mm | Package Size | 1280*370*1080mm |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Communication Port | RS485 ,TCP/IP |
| Application | Pulic Toilelt, Park, Office Building, Club, Etc. | Net Weight | 65KG |
| Gross Weight | 70KG | Product Name | 304 SUS Automatic Tripiod Turnstile |
| Highlight | 3-bar turnstile rapid transit barrier,motor-driven turnstile identity verification,SUS304 tripod turnstile gate |
||
Product Description
High-Cycle 3-Bar Turnstile Rapid Transit Rotating Barrier
Motor-driven SUS304 CE certified rapid transit barrier designed for high-traffic commuter hubs and identity verification applications.
Applications
- Public Places: Subway stations, airports, libraries, parks, exhibition halls, stadiums, museums, residential areas, offices, and commercial buildings
- Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, clubs, swimming halls, and gyms
- Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrance/exit attendance systems
Technical Specifications
| Item Number | GAT-305 |
| Operation Modes | Full automatic, Semi-automatic, Manual |
| Housing Material | Domestic standard 304# stainless steel |
| Dimensions | 1200mm (L) × 280mm (W) × 1000mm (H) |
| Working Voltage | AC220±10%V 50±10%HZ |
| Working Movement | DC24V solenoid valve |
| Arm Width | 510mm |
| Arm Support Force | 60kg |
| Passage Width | ≤600mm |
| Opening Time | 0.2 seconds |
| Passage Speed | 30 persons/minute |
| Emergency Feature | Automatic arm opening during power failure |
| Normal Service Life | 3 million cycles |
| LED Indicator | Direction arrow lighting |
| Direction | Single or bi-directional (optional) |
| Operating Environment | Indoor/outdoor (with shelter) -10℃ to 70℃ |
| Relative Humidity | ≤90% (non-condensing) |
| Communication Interface | Standard RS485 interface, distance ≤1200m |
| Input Interface | +12V level signal or pulse width >100ms 12V pulse, drive current >10mA |
Product Features
- Constructed from 304/316 stainless steel with elegant, durable, rust-resistant design
- Rectangular box and brake lever configuration for organized pedestrian flow control
- Prevents unauthorized access while allowing emergency arm release
- Integrated mechanical, electrical, and micro-controller systems
- Compatible with IC/ID cards, barcode scanners, fingerprint readers, and other identification technologies
- Available in full automatic, semi-automatic, and manual operation modes
Operation Mode Comparison
| Function & Features | Fully Automatic | Semi-Automatic | Manual Operation |
|---|---|---|---|
| Forced Entry Alarm | ✓ | × | × |
| Control Board Settings | ✓ | ✓ | × |
| Power Restoration Response | Auto-lift-arm | Manual-lift-arm | No action |
| Power Failure Response | Auto-drop-arm | Auto-drop-arm | No action |
| Automatic Reset Function | ✓ | ✓ | × |
| System Integration | ✓ | ✓ | × |
| Signal-activated Rotation | ✓ | ✓ | × |
| LED Indicator | ✓ | ✓ | × |
| Passage Method | Automatic rotation | Manual push | Manual push |
| Bi-directional Operation | ✓ | ✓ | × |
| Remote Computer Control | ✓ | ✓ | × |
| LED Counting Function | ✓ | ✓ | × |
Construction & Customization
- Appearance: Customized according to customer requirements
- Cabinet Material: 304/316 grade stainless steel
- Stainless Steel Thickness: Customized within 1.2-2.0mm range
- Surface Finish: Satin finish, polishing, anti-fingerprint, frosted finish, electroplating, or baking finish
Competitive Advantages
- 10+ years ODM/OEM experience with custom product design, logos, and packaging
- Professional customer service available within 16 hours
- Complete product and system software management solutions
- Advanced repair service: Video-based technical support with free spare parts replacement within 1 year
System Integration Capabilities
- Access control systems: Fingerprint recognition, card readers, QR code, barcode ticket systems
- Special functions: Counter systems, coin-operated operation
- ESD tester systems and functionality
