900mm Wide Passage Pedestal Turnstile Relocatable Sensor-driven Swing Gate High Endurance RFID QR for Transit Lobby CE

  • 900mm Wide Passage Pedestal Turnstile Relocatable Sensor-driven Swing Gate High Endurance RFID QR for Transit Lobby CE
  • 900mm Wide Passage Pedestal Turnstile Relocatable Sensor-driven Swing Gate High Endurance RFID QR for Transit Lobby CE
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-611 SERIES
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month
Product Details
Passing Speed 30-35 Persons/min Dimension 168mm Diameter, 1050mm High
Power Supply AC100V-240V Mechanism Brushless Motor/Servo Motor
Pole Material Stainless Steel 304 Lane Width 450mm-900mm(single Side)
Switching Power Supply AC220±10%V 50Hz Or AC110±10%V 60Hz Opening/closing Time 0.2s
Highlight

900mm wide swing barrier gate

,

sensor-driven pedestal turnstile

,

RFID QR transit lobby gate
Leave a Message
Product Description
900mm Wide Passage Pedestal Turnstile

Relocatable sensor-driven swing gate with high endurance RFID/QR capabilities, designed for transit lobbies and CE certified applications.

Product Overview
  • Silk printing logo available
  • Modern, elegant design providing contactless access control solution
  • Panel swing material options: Stainless steel, acrylic plate, or tempered glass
  • Built-in mechanical lock to prevent forced opening
  • Bi-directional or single-way operation available
  • Ideal for commercial buildings, airports, metro stations, libraries, factories, exhibition centers, gyms, and government institutions
Technical Specifications
Specification Details
Cabinet Dimension Diameter of pillar: 168mm, Height: 1050mm
Cabinet Material 304 stainless steel (316 stainless steel available as custom option)
Power Supply AC220±10%V 50Hz or AC110±10%V 60Hz
Opening/Closing Time 0.2s
Arm Material 10mm thick acrylic, tempered glass, or steel (customizable)
Access Mode Single in/out or bidirectional
Passage Width 550mm - 1800mm for pair, 60-90mm for single unit
Swing Arm Angle 180 degrees
Communication Interface RS485, TCP/IP
Optimal Flow Rate 40 persons/min (open), 35 persons/min (closed)
Reset Time After Breakdown Default 10s (adjustable to meet specific requirements)
MCBF 5,000,000 cycles
Working Humidity 30% - 95%
Security Features
  • Problem self-checking function
  • Automatic arm opening during power failure with automatic holding when power returns
  • Anti-tailgating feature to prevent unauthorized entry
  • Fast opening and closing times
  • Safety function with anti-pinching: automatic reverse when IR sensor detects obstacles
  • Optional green/red/blue light lining effect for enhanced visibility
  • Long service life with low operational costs
Application Areas

Entertainment Places:

  • Movie theaters
  • Fitness halls
  • Country clubs
  • Fairgrounds
  • Swimming halls
  • Fitness gyms

Public Places:

  • Stadiums
  • Libraries
  • Museums
  • Parks
  • Offices
  • Exhibition halls
  • Commercial buildings

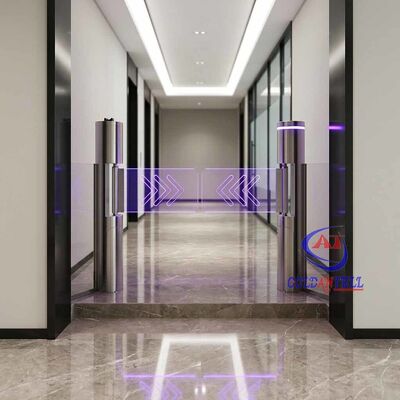

900mm Wide Passage Pedestal Turnstile installation example
Our Advantages
  • Over 13 years of specialized turnstile manufacturing experience
  • Customization services available including OEM and ODM
  • Cost optimization through removal of unnecessary features and mold design
  • Timely customer response with 3-minute response time and ongoing project support
Frequently Asked Questions

How long is your warranty period?

Vivian: One-year guarantee & Lifetime technology support.

How does your factory control the quality?

Vivian: Quality controlling from the beginning to the ending.

Can your machines be used outside?

Vivian: With waterproof function, could be used outside.

How about the payment method?

Vivian: If order amount ≤5000USD, 100%T/T in advance. If order amount >5000USD, 50%T/T in advance and 50%T/T before shipment (negotiable for optimal cooperation).

Which payment terms do you accept?

Vivian: T/T, Western Union, LC, PayPal, etc.
