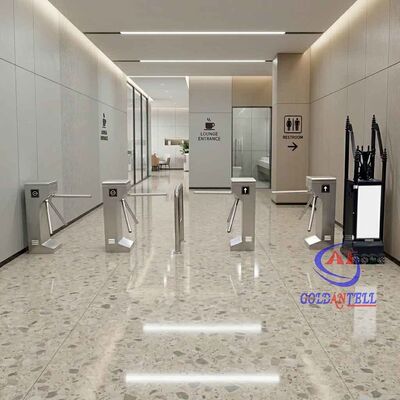

Coin Operated Paid Access Tripod Turnstile with Remote Push Button and QR Reader for Public Toilet and Restroom CE
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE certificate |
| Model Number | GAT-306 series |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | closed wooden case |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Product Details
| Power Supply | 110~240 V(AC) | Direction | In Or Out, Or Two Ways |
|---|---|---|---|
| Communication | RS485 Communication | Material | 304 Stainless Steel |
| Passage Width | 600mm | Working Voltage | AC110/220±10%V, 50±10%HZ |
| Working Movement | DC24V Solenoid Valve | Arm Width | 510 Mm |
Product Description
Coin Operated Paid Access Tripod Turnstile with Remote Push Button and QR Reader for Public Toilet and Restroom CE
Advanced coin-operated access control system designed for public facilities with remote push button and QR code reader capabilities.
Key Features
- Supports global coins & tokens for entry
- Remote push button for simplified access control
- QR reader for secure digital scanning entry
- Compact, space-saving design for public areas
Technical Specifications
| Size | 420mm (L) × 330mm (W) × 1000mm (H) |
| Working Voltage | AC110/220±10%V, 50±10%HZ |
| Working Movement | DC24V solenoid valve |
| Arm Width | 510 mm |
| Support Force of Arm | 40kg |
| Passage Width | ≤600 mm |
| Opening Time | 0.2 second |
| Pass Speed | 30 persons/min |
| Emergency Feature | Arms open automatically when power fails |
| Normal Running Life | 3 million cycles |
| LED Light | Direction arrow indicator |
| Direction | Single or bi-directional (optional) |
| Working Environment | Indoor/outdoor (with cover) -10℃~70℃ |
| Relative Humidity | ≤90% (non-condensing) |
| Communication Interface | Standard RS485 interface, distance ≤1200m |
| Housing Material | 304# stainless steel |
| Input Interface | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Advanced Functions
- Standard electronic interface with internet remote control capability
- Compatible with various card readers
- Open signal with optional memory function configuration
- Anti-passback mechanism prevents reverse rotation
- Hydraulic shock absorption for quiet operation
- Multiple control modes with easy management options
- Automatic repositioning after passage
Application Locations
- Exhibition halls
- Stadiums
- Museums
- Apartments
- Residential areas
- Movie theaters
- Fitness gyms
- Factories
- Hospitals
Product Design
Frequently Asked Questions
How about your package?
Seaworthy wooden case with foam protection.
Can your machines be used outside?
With waterproof function, suitable for outdoor use.
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days.
What is your MOQ?
Any quantity is acceptable.
How about the payment method?
Standard products: 50% deposit, 50% balance before shipment.
