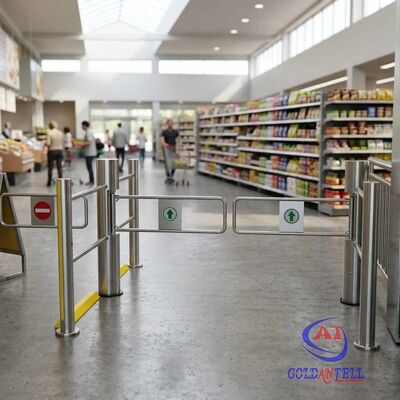

ADA Compliant Automatic Retail Swing Gate SUS304 Barrier for Supermarket Wheelchair and Shopping Trolley Access CE
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-614 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 5-7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 2,000pcs per month |
Product Details
| Material | 304 Stainless Steel | Net Weight | 40KG/set |
|---|---|---|---|
| Gross Weight | 45KG/set | Product Size | Diameter: Main Pole: Φ168mm Height: 1000mm |
| Working Voltage | AC220±10%V 50±10%HZ | Passage Width | 600-1100mm |
| Swing Arm Angle | 180 Degrees | Operation Speed | 1 Second Opening/closing Time |
Product Description
ADA Compliant Automatic Retail Swing Gate
Product Overview
SUS304 Barrier designed for supermarket wheelchair and shopping trolley access with CE certification. Features automatic opening for accessible passage and one-way operation control.
- Automatic Opening: Instantly opens for wheelchair and shopping trolley access
- One-Way Operation: Ensures smooth flow in one direction
- Quick Response: Opens within 0.6 seconds for efficient passage
- CE Certified: Meets European safety standards
- Brushless Motor: Reliable and energy-efficient design
Technical Specifications
| Control Methods | Push button, RFID card, fingerprint recognition |
| Working Voltage | AC220±10%V 50±10%HZ |
| Dimensions | Diameter: Φ168mm, Height: 1000mm |
| Passage Width | 450-850mm |
| Swing Arm Angle | 180 degrees |
| Direction | Single or bi-directional (optional) |
| Operation Speed | 1 second opening/closing time |
| Capacity | 40 persons/min (open), 25-30 persons/min (closed) |
| Durability | 3 million cycle lifespan |
| Operating Environment | Indoor/outdoor (with cover) -10℃～70℃ |
| Motor | DC24V brush motor |
Advanced Features
- Adjustable pillar height and telescopic arm length with material options
- Infrared reset and anti-pinch functions with sound/light alarms
- Configurable as normally open or closed for different environments
- Bidirectional operation with infrared sensing for entry/exit control
- Programmable via main control board buttons
- Mechanical and infrared anti-pinch protection with automatic reset
- Automatic locking for unauthorized access attempts
- Collision avoidance protection for swing arms
- Adjustable automatic reset timing (1-60 seconds)
- Compatibility with access control, biometric, and ESD systems
- Remote management capability via computer
- Meets all fire safety requirements
Applications
Public Spaces
- Supermarkets & Retail Stores
- Transportation Hubs (Subway, Airports, Stations)
- Cultural Venues (Libraries, Museums, Exhibition Halls)
- Recreational Areas (Parks, Stadiums)
- Residential & Office Buildings
Commercial & Institutional
- Hotels & Hospitality
- Factories & Industrial Facilities
- Financial Institutions (Banks)
- Healthcare Facilities (Hospitals)
- Educational Institutions
- Correctional Facilities
Installation Examples
Customization Options
- Custom appearance design available
- Stainless steel thickness options: 1.2-2.0mm
- Material grades: 304 or 316 stainless steel
- Surface finishes: satin, polished, anti-fingerprint, frosted, electroplated, or baked
