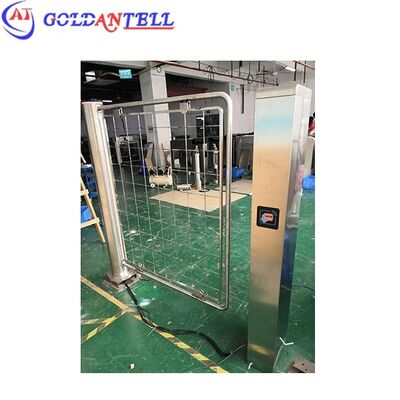

304 Standard Stainless Steel Customized OEM High Security security pass gate single gate for people
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Access Control Type | RFID Card | Barrier Open/close Time | 0.2 S |
|---|---|---|---|
| Communication Interface | TCP/IP | Operation Direction | 2-Way |
| Barrier Motor | Servo Motor | Protection Level | IP54 |
| Passing Width | 1190mm (550~1300mm Customizable) | Height | 1628mm |
| Bollard Diameter | 168mm | Power Supply | AC 110~240V ±10% 50/60Hz |
| Arm Material | 10mm Acrylic, Tempered Glass, Or Steel | Swing Arm Angle | 180 Degree |
| Optimal Flow Rate | 40 Persons/min (open), 35 Persons/min (closed) | MCBF | 5,000,000 Cycles |
| Working Humidity | 30%~95% | ||
| Highlight | 304 stainless steel security pass gate,OEM swing barrier gate,customized high security single gate |
||
Product Description
304 Stainless Steel Security Turnstile Gate
High-security single gate turnstile for pedestrian access control, featuring customizable OEM options and premium 304 stainless steel construction.
Product Overview
This modern security turnstile gate provides an elegant contactless access control solution for high-traffic environments with stringent security and aesthetic requirements.
- Custom logo silk printing available
- Bi-directional or single-way operation options
- Built-in mechanical lock prevents forced opening
- Panel materials: Stainless steel, acrylic plate, or tempered glass
- Ideal for commercial buildings, airports, metro stations, libraries, factories, and government institutions
Technical Specifications
| Specification | Details |
|---|---|
| Cabinet Dimension | 168mm diameter pillar, 1050mm height |
| Cabinet Material | 304 stainless steel (316 stainless steel available as custom option) |
| Power Supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/Closing Time | 0.2 seconds |
| Arm Material | 10mm thick acrylic, tempered glass, or steel |
| Access Mode | Single in/out or bidirectional |
| Passthrough Width | 550mm - 1800mm for pair or 60-90mm per unit |
| Swing Arm Angle | 180 degrees |
| Communication Interface | RS485, TCP/IP |
| Optimal Flow Rate | 40 persons/minute (open), 35 persons/minute (closed) |
| Reset Time After Breakdown | Default 10 seconds (customizable) |
| MCBF | 5,000,000 cycles |
| Working Humidity | 30% - 95% |
Product Display
Custom Design Options
We can customize the height and width of passageway according to your specific requirements.
Security Features
- Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
- Bi-directional or single-way operation options
- Automatic gate opening during power failure for fire safety compliance
- Anti-tailgating feature prevents unauthorized entry
- Wings open automatically during power interruption
- Fast opening and closing response time
- Built-in mechanical lock for forced opening prevention
Application Sites
Exhibition halls, commercial buildings, parks, offices, public places, stadiums, libraries, museums
Frequently Asked Questions
Which payment terms do you accept?
T/T, Western Union, LC, PayPal, etc.
How does your factory control quality?
Comprehensive quality control from beginning to end of production process.
Can your machines be used outdoors?
Yes, with waterproof function for outdoor installation.
How long is your warranty period?
One-year guarantee with lifetime technical support.
What are your payment methods?
Orders ≤ $5,000 USD: 100% T/T in advance. Orders > $5,000 USD: 50% T/T in advance, 50% before shipment (negotiable).
Packaging Details
- Export products: Wooden case packaging with pearl wool and plastic wrap
- Domestic: Bubble wrap with carton or pearl wool with wooden packaging
- Professional, environmentally friendly, and efficient packaging services
Why Choose Our Security Turnstiles
Our Pre-sale & After-sale Service
- Pre-sale: Comprehensive communication and product information
- On-purchase: Regular production updates with photos and testing videos
- After-sale: Installation guides, manuals, and detailed instructional videos
- OEM/ODM Service: Over 10 years of customization experience for logos, sizes, and colors
- Professional Support: 16-hour response time for all inquiries
