Stainless Steel Automatic Door Bidirectional Remote Control Security Turnstile Access Price Entrance Gate Pedestrian
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Access Control Type | IC Card, RFID Card | Barrier Open Time | 0.2 S |
|---|---|---|---|
| Communication Interface | Rs485, RS-232 | Operation Direction | 2-Way |
| Barrier Motor | Brushless Motor | Passage Width | 600mm-1100mm |
| Pass Speed | 30-40 Persons/min | Power Supply | 110~240 V(AC) |
| Max Power Consumption | 60w | Frequency | 50~60 Hz |
| IP Protection | IP54 | Working Temperature | -15~75 °C |
| Dimension Excluding Bars | 1600x120x1000 Mm | Net Weight | 150 Kg |
| Noise Level | ≤65dB | ||
| Highlight | stainless steel automatic turnstile gate,bidirectional remote control security gate,pedestrian entrance swing barrier gate |
||
Product Description
Stainless Steel Automatic Door Bidirectional Security Turnstile
High-performance bidirectional security turnstile with remote control access for pedestrian entrance gate management.
Technical Specifications
| Material | 304 stainless steel or Cold-rolled steel plate |
| Drive Mode | 16 Bit Microprocessor, customizable processing |
| Signal Interface | Passive node, TTL Russia, RS485 interface, TCP/IP interface (optional) |
| Width of Passage | 600mm |
| Throughput Speed | ≥35 people/minute |
| Noise Level | ≤65dB |
| Working State | Single or bi-directional operation |
| Status Indication | Allow passing through / Forbidden |
| Close and Open Time | 1 Second |
| Power Supply | Input AC220V (adjustable) Optional: DC24V±10% 3A; DC12V±10% 3A |
| Communication Interface | Two card reader signals |
| Working Environment | Indoor, outdoor |
| Working Temperature | -15° to +75° |
| Humidity | 5%-95% |
| Maintenance Port | 1 unit |
| Service Life | Three million contiguous opening and closing cycles |
Key Features & Advantages
- Cold-rolled steel plate or 304 stainless steel casing options
- Directional LED Optical Signals: Green Arrow or RED Cross signage
- Specialized mechanical processing for enhanced durability
- Ensures rapid, efficient & safe access control
- Individual installation interface for easy integration with Magnetic card, Barcode card, ID card, IC card systems
- Standard PhotoElectric Beams installed on all models

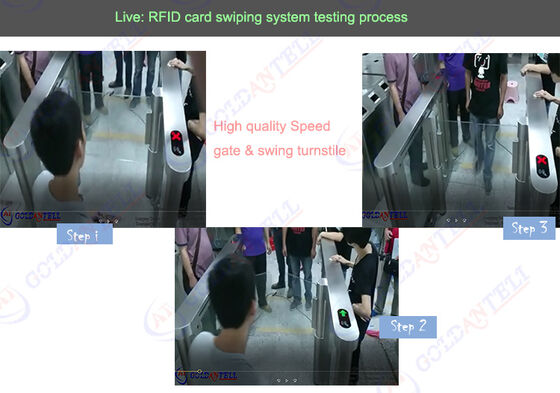

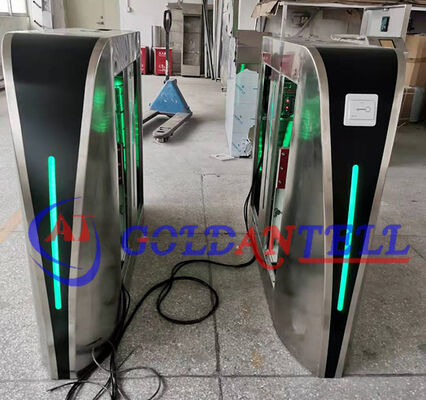

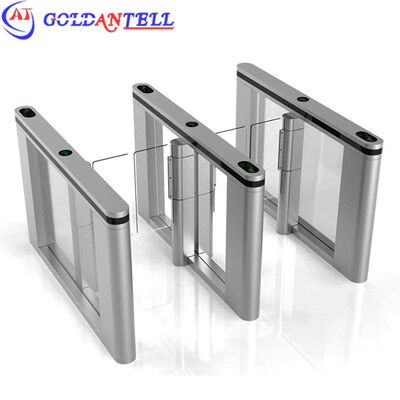

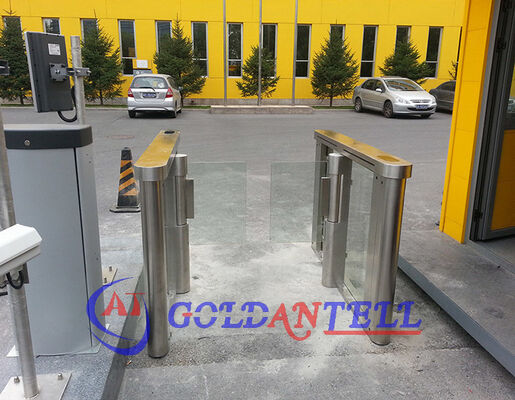

Product Images
Advanced Functions & Features
- Unique incomplete wheel transmission for precise and reliable flap barrier positioning
- Stable operation with minimal noise and no mechanical impact
- Self-checking power-on function with automatic barrier positioning
- Automatic alarm activation for unauthorized access attempts
- Multiple working modes configurable via control panel
- Automatic barrier opening during power failure with reset upon restoration
- RS485 connection for remote control to meet fire safety requirements
- Standard electrical interface for easy integration with various reader systems
- LED direction indicators for clear passage guidance
- Re-position function with configurable time limits
About Goldantell Technologies
Shenzhen Goldantell Technologies Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with over 8 years of experience.
Our product portfolio includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and comprehensive security access control systems. We have successfully exported to more than 50 countries worldwide.
Frequently Asked Questions
Can you install RFID card reader on the turnstile?
Yes, in addition to RFID card reader systems, we can also install fingerprint reader systems, token systems, ESD systems, and more.
How about the guarantee and after sale service?
We provide 12-month quality guarantee and maintain a team of well-trained, passionate sales and after-sales service professionals fluent in English.
How long is the lead time?
Standard items: 10-50 sets: 5 working days; 50-100 sets: 7-10 working days; 200-500 sets: 10-15 working days. Custom designs require 3-10 additional working days.
How about the payment terms?
We accept TT, Western Union, L/C, and our company participates in trade assurance programs to protect your order security.
What are the packaging options?
Carton package internally with two external options: crate package or closed wooden package.
Can you do OEM service?
We offer comprehensive OEM services including custom turnstile design, logo printing, and retail box customization.
Trade & Delivery Information
Offer valid for 30 days. Delivery within 7 days after payment confirmation. Multiple shipping options available including sea freight (15-60 days), express delivery (3-5 days), and air cargo (2-7 days).
Our Services
- 24-hour response time for all inquiries
- English-speaking sales and after-sales support team
- OEM services with custom branding and packaging
- Expert engineering support for optimal system integration
Goldantell turnstiles - factory direct pricing, superior quality. Contact us today for your security access control needs!
