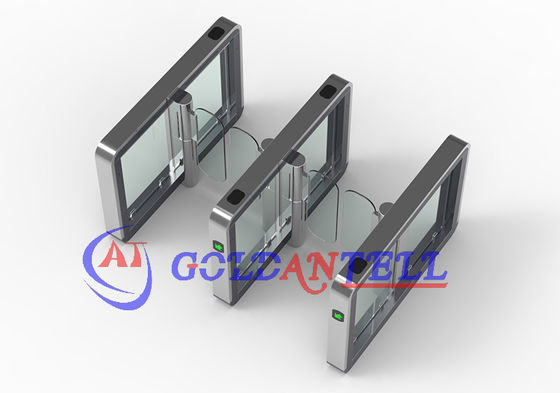

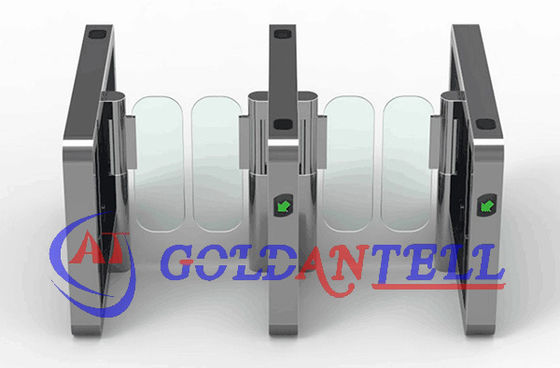

Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Goldantell/OEM |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-custom series |
| Minimum Order Quantity | 1 |
| Price | $728-1,633 |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-10 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 7-9 working days after received your payment |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Access Control | QR Code, IC Card | Open/close Time | 0.2 S |
|---|---|---|---|
| Communication Interface | RS-232, RS485, TCP/IP | Operation Direction | 2-Way |
| Motor Type | Brushless Motor | Dimension | 1400x180x1000 Mm |
| Display Type | LCD Screen | Lane Width | 55-130 Cm |
| Power Supply | AC 110~240V 50/60Hz | Arm Material | 10mm Acrylic |
| Passthrough Width | 900 Mm | Infrared Sensors | 6-10 Pairs |
| Flow Rate | 40 Persons/min (open), 35 Persons/min (closed) | MCBF | 5,000,000 Cycles |
| Working Humidity | 30%~95% | ||
| Highlight | 0.2s Open/Close Time Swing Barrier Gate,304 Stainless Steel Speed Gate,RS485 Communication Security Turnstile Gate |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Smallest Quick Pass Gate CE Certification DC Brushless Motor Swing Barrier Gate Speed Gate
Brief Description Of Barrier Gate
- Application: outdoor or indoor
- LED indicator light: green and red indicate the passing information
- Glass panel slides open horizontally to provide an unobstructed passageway
- Safety: Gate auto opens when power is off to meet fire protection requirements
- Custom: Visible high glass panel prevents climbing over the gate for unauthorized access
- Standard external electrical interface compatible with various reading/writing devices for easy system integration
Specification Of Barrier Gate
| 1 | Cabinet dimension | 1400 (L) x 180 (W) x 1000 (H) mm |
|---|---|---|
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | Opening/closing time | 0.2s |
| 5 | Arm material | Thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | Single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | Default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Security Features Of Barrier Gate
- Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
- Bi-directional or single way optional
- Gate auto-open when power is off to meet fire protection requirements
- Anti-Tail gaiting feature built in to prevent unauthorized access
- The wings open automatically during power interruption, and recover N/C mode after power on (optional)
- Fast opening and closing time
- Built-in mechanical lock to prevent forced opening of swing flaps
- Pairs of IR sensors
Classification Of Barrier Gate
Vertical shape
Bridge shape: this model

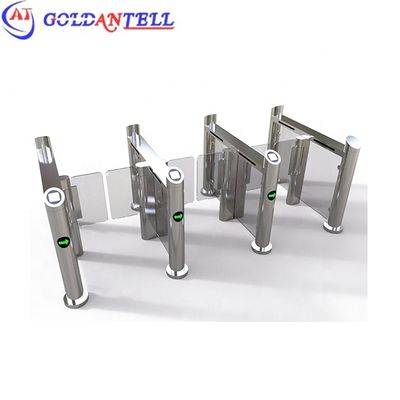

Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways).
Bridge shape: this model
Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways).
Product Display

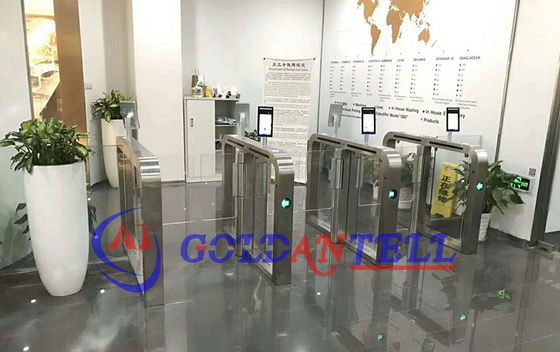

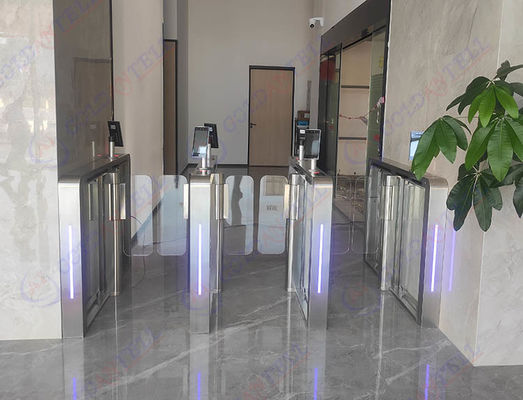

Project Sites
Bank, Fitness Gym, Factory, Hotel, Movie theaters, Office buildings
FAQ Of Barrier Gate
1. Can I have a system that only supports ESD test without software?
Vivian: sure, there are more options. Our catalog can provide to help you make a choice.
2. What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
3. Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
4. Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
5. What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
6. What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Packing Details Of Barrier Gate
1. Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
2. Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
3. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
2. Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
3. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
