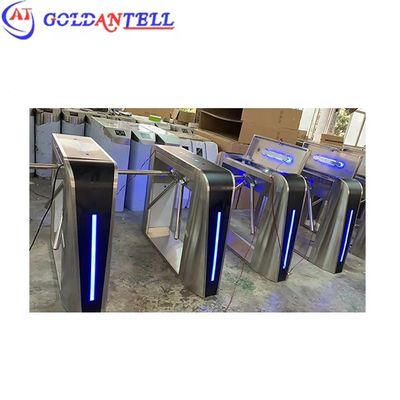

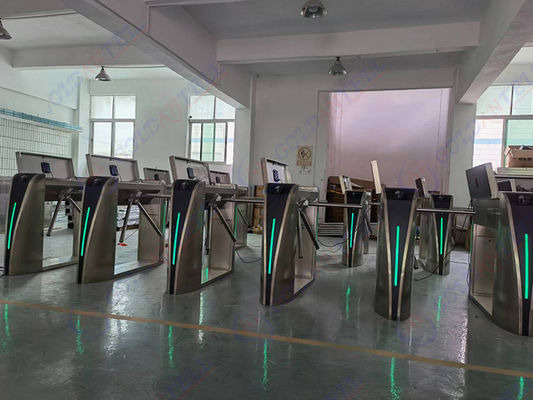

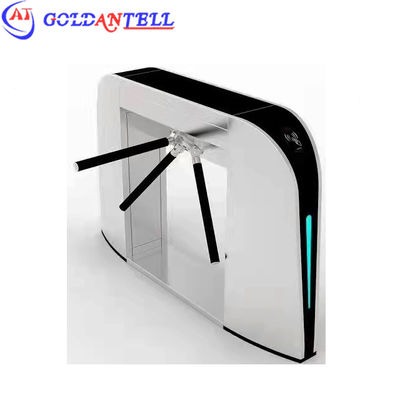

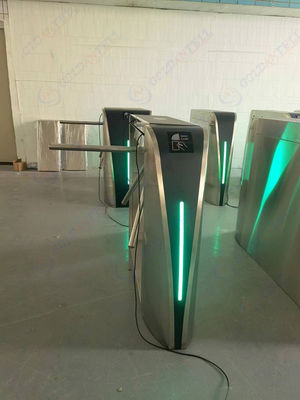

Automatic Half Height Turnstile Gate with Stainless Steel 304 IP54 Protection and 0.4s Barrier Open/Close Time
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-330 series |
| Minimum Order Quantity | 1 |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1,000pcs per month |
Product Details
| Barrier Open Time | 0.4 S | Communication Interface | RS-232, RS485 |
|---|---|---|---|
| Operation Direction | 2-Way | Barrier Motor | Brushed Motor |
| Protection Level | IP54 | Turnstile Function | Collision Avoidance |
| Working Environment | Indoor, Outdoor | Communication Protocol | RS485 TCP/IP |
| Passage Width | 110cm, 90cm, 60cm | Power Supply | AC220V/110V |
| Material | Stainless Steel 304 | Pass Speed | 35 Persons/min |
| Cabinet Dimension | 1200 X 280 X 1000H (mm) | Channel Width | 60cm |
| Access Mode | Single In/out Or Bidirectional | ||
| Highlight | Stainless Steel 304 Turnstile Gate,IP54 Protection Turnstile Gate,0.4s Barrier Open/Close Time Turnstile Gate |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Automatic Half Height Turnstile Gate with QR Code & RFID Card Reader
Product Description
This professional security turnstile features:
- Brushed stainless steel construction for durability and elegant appearance
- Three-arm rotating mechanism with controlled drive (one or two directions)
- Emergency unlocking capability (manual or automatic)

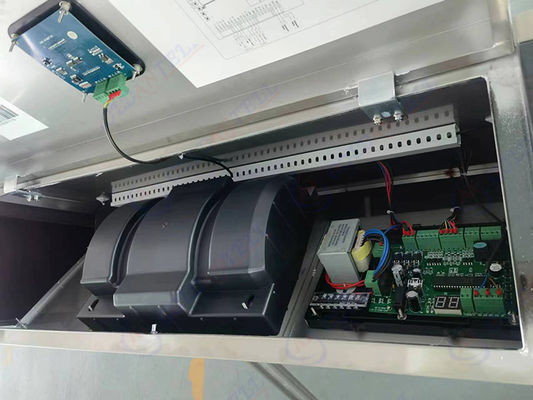

- Intelligent control unit for reliable operation
- Compatible with multiple access control systems: RFID, fingerprint, QR code, barcode, ticket, ESD testing, and facial recognition
Technical Specifications
| Cabinet dimension | 1200 x 280 x 1000H (mm) - Custom sizes available |
|---|---|
| Cabinet material | 304 stainless steel (SUS316 available as custom option) |
| Channel Width | 60cm |
| Access mode | Single in/out or bidirectional |
| Access method | Fingerprint, face recognition, barcode scanner or dual RFID cards |
Key Features
Security:
- Dropping arm mechanism for emergency clearance
- Tamper-resistant design requiring special tools for arm removal
- Forced entry prevention mechanism
Ergonomics:
- Non-obstructive inactive arms
- Simple installation process
Flexibility:
- Removable end covers for easy access control integration
- Multiple configuration options for various pedestrian control scenarios
Product Images
Applications
Ideal for high-traffic security control at:
- Subway stations and transportation hubs
- Tourist attractions and sports venues
- Exhibition centers and swimming facilities
- Residential complexes and corporate entrances
- Attendance tracking and access management systems
Company Profile
Shenzhen Goldantell Technology Co., Ltd specializes in intelligent turnstiles, access control systems, and parking management solutions since 2007. We offer:
- Customized products and OEM services
- Continuous product innovation and new designs annually
Our Advantages
- Professional OEM/ODM design capabilities
- CE certified with European government project experience
- Experienced sales team with 4+ years in turnstile industry
- Competitive pricing with high-quality standards
- Custom solutions tailored to client requirements
Service Commitment
Pre-sale:
- Detailed product consultation and requirements analysis
During purchase:
- Regular production updates with photos and testing videos
After-sale:
- Comprehensive installation and usage guidance
- 16-hour response time for inquiries
Shipping Information
- Standard products: 7 working days (<10pcs) or 10-15 working days (>50pcs)
- Custom products: Additional 2-3 working days
