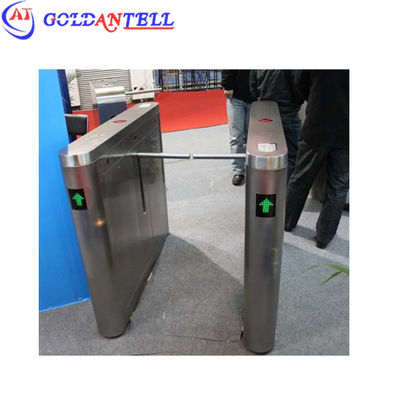

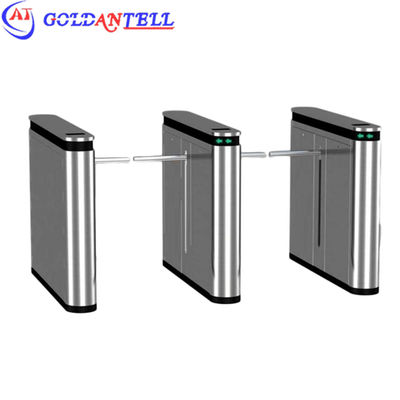

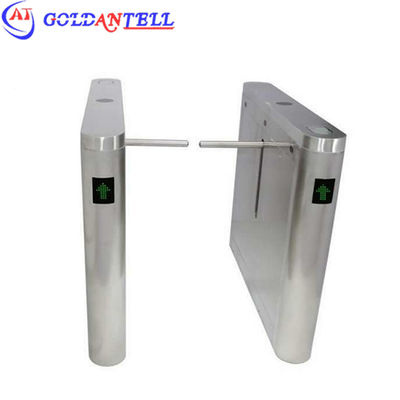

Automatic 2-Way High-Speed Flap Barrier Turnstile with 0.2s Open/Close Time and RS-232 RS485 Communication
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-187 |
| Minimum Order Quantity | 1 |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Barrier Open Time | 0.2 S | Communication Interface | RS-232, RS485 |
|---|---|---|---|
| Operation Direction | 2-Way | Barrier Motor | Brushless Motor |
| Protection Level | IP54 | Power Supply | AC220±10%V 50Hz Or AC110±10%V 60Hz |
| Material | 304 Stainless Steel | Size | 1200 * 280 * 1000mm |
| Working Temperature | -15°C To 75°C | Input Signal | DC12V/dry/contact/RS485/RS232/Remote |
| Channel Width | Single Wing 600mm; Double Wing 900mm | Flow Rate | 30-35 Persons/min (open), 25-30 Persons/min (closed) |
| Reset Time | Default 10s | Running Life | 3 Million Cycles |
| Drive Motor | DC Brushless Motor | ||
| Highlight | 2-Way Flap Barrier Turnstile,0.2s Open/Close Time Security Turnstile Gate,RS-232 RS485 Communication Automatic Turnstile |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Automatic Electrical Dropbox Turnstile Flap Barrier High-Speed 2-Way Exterior Door for Amusement Park
High-speed automatic electrical dropbox turnstile designed for amusement parks and exterior door applications with 2-way access control.
Working Performance
- Heavy-duty, high-size design prevents climbing over the gate for unauthorized access
- Anti-crash function maintains smooth operation even with forceful impacts
- Auto-close timer protection prevents unauthorized entry after delay period
- Emergency evacuation feature automatically opens arms during power failure
- Easy integration with RFID wristband/token/card readers, barcode scanners, or fingerprint readers
- Self-examination and alarm functions for convenient maintenance
- Programmable running status via main board keyboard
Technical Specifications
| Optimal flow rate | 30-35 persons/min (open), 25-30 persons/min (closed) |
|---|---|
| Cabinet dimension | 1200(L)*280(W)*1000(H)mm |
| Open type | Push button/access control |
| Passing direction | Single in/out or bidirectional |
| Working temperature | -15°C to +75°C |
| Communication | Standard RS485, TCP/IP |
| Reset time after breakdown | Default 10s (adjustable) |
| Wing material | Stainless steel |
| Access readers | RFID cards, fingerprint, barcode, ticket scanners |
| Input connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms |
| Optional functions | Coin controller, counter, sound alarm, speakers |
| Running life | 3 million continuous operations |
| Protection grade | IP54 |

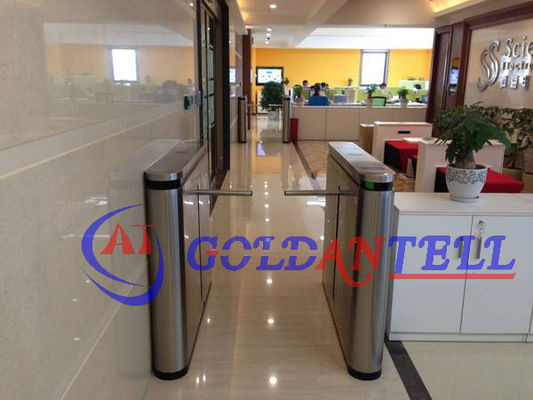

Project Sites
Public Places: Lobby entry, subway, airports, stations, libraries, bookstores, parks, exhibition halls, stadiums, museums, apartments, residence areas, offices, commercial buildings.
Entertainment Places: Movie theaters, fitness halls, country clubs, fairgrounds, clubs, swimming halls, fitness gyms.
Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, enterprise entrances and exits.
Access Control System Integration
Manufacturing Process
Security Packaging
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Details
- Sea shipping: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Why Choose Us
Our Pre-sale & After-sale Service
- Pre-sale: Detailed product information and consultation
- On-purchase: Production updates with photos and testing videos
- After-sale: Installation guides and product manuals
- OEM/ODM: Customization of logo, size, color, etc.
- Professional support: 16-hour response to inquiries
