High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Access Control | RFID Card, QR Code | Barrier Speed | 0.2 S |
|---|---|---|---|
| Communication Interface | RS-232, RS485, TCP/IP | Operation Direction | 2-Way |
| Motor Type | Brushless Motor | Protection Level | IP54 |
| Dimensions | 1400*120*1000mm (L*W*H) | Display Type | LCD Screen |
| Lane Width | 55-130CM | Power Supply | AC 110~240V 10% 50/60HZ |
| Housing Material | 304 Stainless Steel | Optimal Flow Rate | 40 Persons/min (open), 35 Persons/min (closed) |
| Working Humidity | 30%~95% | MCBF | 5,000,000 Cycles |
| Infrared Sensors | 6~10 Pairs | ||
| Highlight | 0.2s Barrier Open/Close Time Vertical Sliding Gate,IP54 Protection Vertical Sliding Gate,304 Stainless Steel Vertical Sliding Gate |
||
You can tick the products you need and communicate with us in the message board.
Product Description
High-Speed Half Height Vertical Sliding Gate Turnstile Portable Entry with QR Code/RFID Access Controller
High Speed Sliding Gate Half height Vertical portable entry turnstile with QR Code/RFID Access Controller
Key Features
- Application: outdoor or indoor
- LED indicator light: green and red indicate the passing information
- Glass panel slides open horizontally to provide an unobstructed passageway
- Safety: Gate auto opens when power is off to meet fire protection requirements
- Customizable: visible high glass panel prevents climbing over the gate for unauthorized access
- Standard external electrical interface compatible with various reading/writing devices for easy system integration
Technical Specifications
| No. | Parameter | Specification |
|---|---|---|
| 1 | Cabinet dimension | 1400 (L) x 180 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | Opening/closing time | 0.2s |
| 5 | Arm material | Thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | Single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | Default 10s (adjustable) |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Advanced Security Features
- Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
- Bi-directional or single way operation
- Gate auto-open during power failure for fire safety compliance
- Anti-Tail gaiting feature prevents unauthorized entry
- Wings open automatically during power interruption
- Fast opening and closing time (0.2s)
- Built-in mechanical lock prevents forced opening
- Multiple pairs of IR sensors for enhanced security
Product Classification
- Vertical shape
- Bridge shape (this model)
- Pillar shape (or tube type)
- Single motor (suitable for single/multiple passageways)
- Double motors (suitable for multiple passageways)

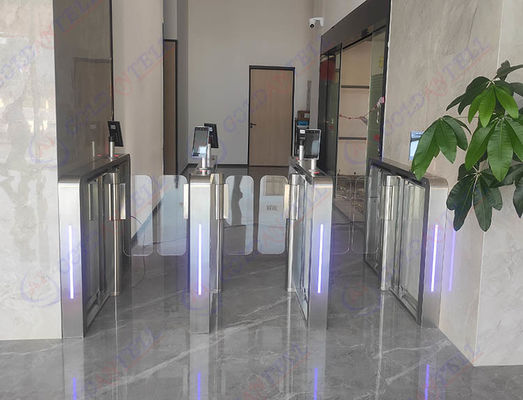

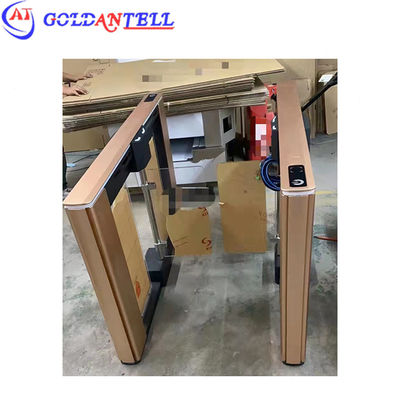

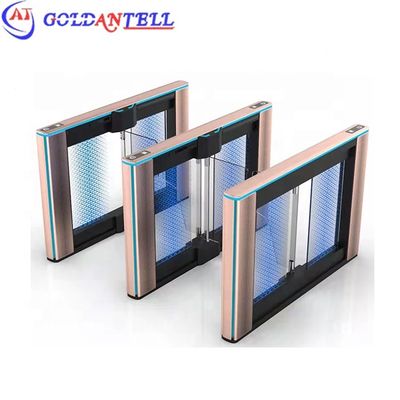

Product Images
Typical Applications
- Bank
- Fitness Gym
- Factory
- Hotel
- Movie theaters
- Office buildings
Frequently Asked Questions
Can I have a system that only supports ESD test without software?
Vivian: sure, there are more options. Our catalog can help you make a choice.
What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available.
Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer with rich OEM/ODM experience for government projects.
What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you photos/videos of products and packages before final payment.
What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Packing Details
- Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
- Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging
- Professional, environmentally friendly packaging to ensure goods safety
Our Pre-sale & After-sale Service
- Pre-sale: Detailed product information and consultation
- On-purchase: Production updates with photos and testing videos
- After-sale: Installation guides, manuals, and support videos
- OEM/ODM: Custom logo, size, color options
- Professional support: 16-hour response time
