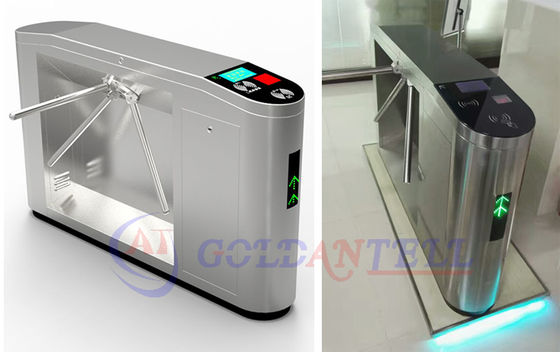

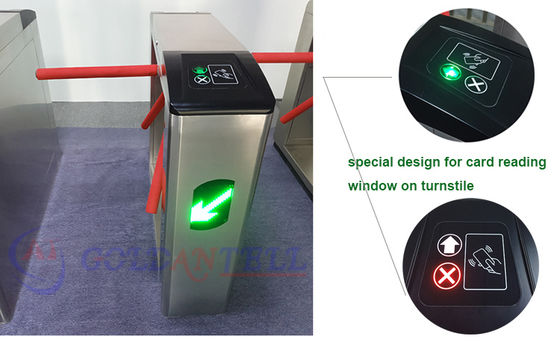

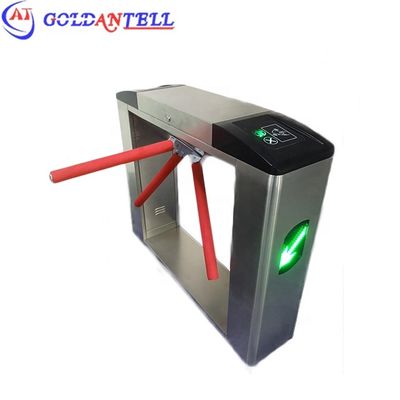

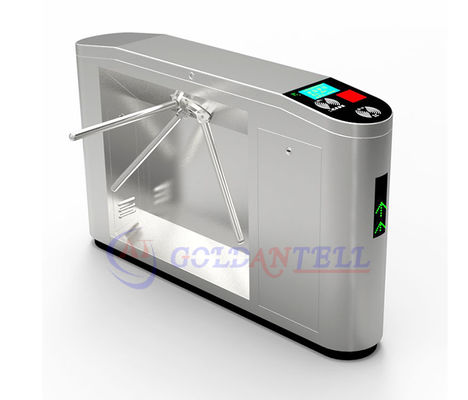

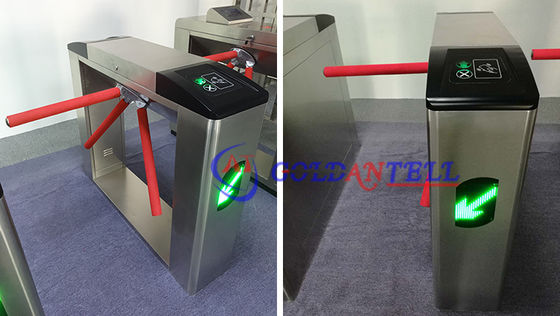

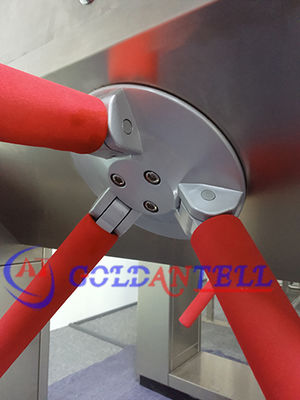

Half Height Security Turnstile Gate with IP54 Protection 30-40 Persons/Min and 550mm-600mm Passage Width
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Goldantell/OEM |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-312 series |
| Minimum Order Quantity | 1 |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Passage Width | 550mm-600mm | Pass Speed | 30-40 Persons/min |
|---|---|---|---|
| Power Supply | 220/110+ 10%V (AC) | Max Power Consumption | 60w |
| Frequency | 50~60 MHz | IP Protection | IP54 |
| Working Temperature | -15~75 °C | Communication Socket | RS232 Standard Socket/LAN Socket |
| Relative Humidity | Less Than 95% Not Dew | Input Voltages | 220/50 Or 110V AC/50 To 60Hz |
| Embedded Fingerprint Resolution | 500DPI | Embedded RFID Frequency | 125kHz |
| Arm Length | 500mm (maximum 900mm) | Material | 1.5mm 304# Stainless Steel |
| Dimensions | 1,200 X 990 X 280mm | Weight | 70kg |
| Highlight | IP54 Protection Turnstile Gate,30-40 Persons/Min Security Turnstile,550mm-600mm Passage Width Access Control Turnstile |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Prestige Half Height Turnstile with Automatic Swing Opening Smart Card Door Access Control System
This premium half-height turnstile features an automatic swing opening mechanism with smart card door access control, designed for secure entrance and gate management.
Technical Specifications
| Input Voltage | 220/50 or 110V AC/50 to 60Hz |
|---|---|
| Access Methods | Fingerprint, card, or card+fingerprint combination |
| Fingerprint Reader | 15 x 16mm scan area, 500DPI resolution |
| Fingerprint Module | FRR ≤1%, FAR ≤0.001% |
| Identification Time | ≤1 second, supports 3000 fingerprints (1:N) |
| RFID Reader Frequency | 125kHz |
| Arm Length | Standard 500mm (extendable to 900mm) |
| Material | 1.5mm 304# stainless steel with brushed or polished finish |
| Gate Operation | Automatic rotation |
| Rod Operation | Automatically lifts when powered |
| Operating Temperature | -15 to 75°C |
| Operating Humidity | 5 to 95% RH |
| Dimensions | 1,200 x 990 x 280mm |
| Weight | 70kg |
Key Features
- Quiet, stable operation with no mechanical impact
- Configurable passage count settings
- Multiple operation modes including bi-directional control
- Remote beam control for fire safety compliance
- Direction indicator lights for clear user guidance
- Standard electrical interfaces for various reader devices
- Centralized computer management capability
- Automatic passage counting with LED display
- Fail-safe beam operation during power outages
- Configurable card-reading memory function
- Self-diagnostic and alarm system
Special Features: Maintenance-free DC brushless motor with torque drive, attrition-free operation, low noise, and intelligent control.
Project Images
Manufacturer Information
Shenzhen Goldantell Technologies Co., Ltd is a leading exporter of intelligent turnstile and parking management systems with over 8 years of industry experience.
Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems. We've successfully exported to more than 50 countries worldwide.
Your satisfaction is our priority. We're committed to building long-term business relationships and providing exceptional service.
Global Reach
Our turnstiles have been installed in over 50 countries including:
- Americas: USA, Canada, Brazil, Chile, Peru, Colombia, Paraguay
- Asia-Pacific: Australia, New Zealand, Philippines, Vietnam, Singapore, Malaysia, Nepal, Myanmar
- Europe: Netherlands, Switzerland, Sweden, Germany, Portugal
- Middle East/Africa: Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana
Ordering Information
Trade Terms
- 30-day valid quotation
- 7-day delivery after payment confirmation
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box with wooden case/crate
Delivery Options
- Sea freight: 15-60 days (varies by destination)
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Our Services
- 24-hour response to all inquiries
- English-speaking sales and support team
- OEM services including custom branding
- Expert engineering support
Comprehensive Service Package
- Pre-sale: Detailed product consultation
- Purchase: Regular production updates with photos/videos
- After-sale: Installation guides and manuals
- OEM/ODM: Custom solutions including branding
- 16-hour response window for all inquiries
Contact Information
Contact: Vivian Zhou
WhatsApp: +86 13699796334
WeChat: junziyouxin
Skype: goldantell02
Goldantell turnstiles - factory direct pricing, premium quality. Contact us today for your access control needs!
