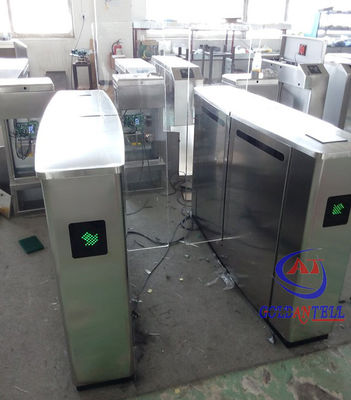

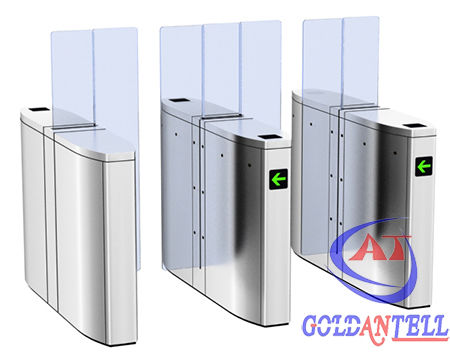

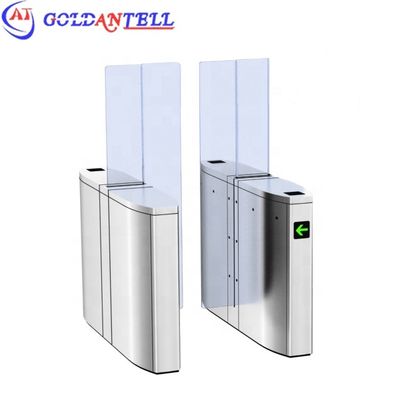

1.8M Full High Turnstile with 304 Stainless Steel Construction and IP54 Protection for Secure Dual Lane Entry

Place of Origin	Guangdong, China
Brand Name	Goldantell/OEM
Model Number	GAT-619 series
Minimum Order Quantity	2
Price	$1,106-1,855

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Access Control	RFID Card, QR Code	Barrier Speed	0.2 S
Communication Interface	RS-232, RS485, TCP/IP	Operation Direction	2-Way
Barrier Motor	Brushless Motor	Protection Level	IP54
Turnstile Function	Anti-Pinch, Collision Avoidance, Anti-Tailgating	Dimension	14003101000mm (LWH)
Display Type	LCD Screen	Lane Width	55-130CM
Power Supply	AC 110~240V 10% 50/60HZ	Housing Material	304 Stainless Steel
Arm Material	10mm Acrylic, Tempered Glass Or Steel	Infrared Sensors	6~10 Pairs
Flow Rate	40 Persons/min (open), 35 Persons/min (closed)
Highlight	1.8M Full High Turnstile , 304 Stainless Steel Turnstile , IP54 Protection Turnstile

Leave a Message

Product Description

Dual Lane Entry Staff Time Attendance System with 1.8M Full High Turnstile NFC Reader Turnstiles

Staff Time Attendance 1.8meter Full High Turnstile NFC Reader Double Lane Entry System

Full High Turnstile Features

Goldantell intelligent series turnstile gates with excellent design and performance, utilizing innovative technology and high-quality materials
Electric control with DC motor for stable, reliable operation and low failure rate
Ultra-high light traffic indicator with directional instructions using bright LED lights
Compatible with Face, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems
Custom OEM/ODM services available for size, shape, and other specifications
Constructed with 304 stainless steel, IP54 waterproof rating, elegant anti-rust design

Full High Turnstile Specifications

Specification	Details
Cabinet dimension	1400 (L) x 310 (W) x 1000 (H) mm
Cabinet material	304 stainless steel (316 ss can be custom-made)
Switching power supply	AC220±10%V 50Hz or AC110±10%V 60Hz
Opening/closing time	0.2s

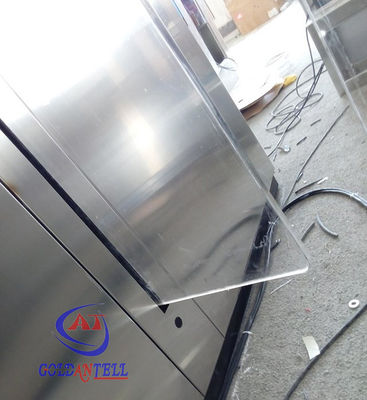

Arm material	Thickness 10mm Acrylic, or tempered glass or steel (custom)
Access mode	Single in/out or Bidirectional
Passthrough Width	900mm (or custom)
Mechanism	DC Brushed motor+Clutch (or Servo motor)
Communication interface	RS485, TCP/IP
Infrared sensor	6~10 pairs
Optimal flow rate	40 persons/min (open), 35 persons/min (closed)
Reset time after break down	Default 10s (adjustable)
MCBF	5,000,000 Cycles
Working humidity	30%~95%

Security Features

Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
Bi-directional or single way operation options
Auto-open gate during power failure to meet fire protection requirements
Anti-Tail gaiting feature to prevent unauthorized entry
Wings open automatically during power interruption
Fast opening and closing time
Built-in mechanical lock to prevent forced opening
Multiple pairs of IR sensors

Ideal for:

Banks
Fitness Gyms
Factories
Hotels
Movie theaters
Office buildings

Frequently Asked Questions

Can I have a system that only supports ESD test without software?

Yes, there are more options available. Our catalog can help you make a choice.

What language versions are available for the software system?

English and Chinese versions are available.

Can I get a software manual or installation instructions?

Yes, English version manuals are available.

Can I customize the system?

Yes, we offer OEM/ODM services with extensive experience in government projects.

What are your payment terms?

100% payment before shipment. We provide photos/videos of products before final payment.

What are your delivery terms?

EXW, FOB, CFR, CIF, DDU available.

Packing Details

Exported product: Wooden case package with pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging
Professional, environmentally friendly packaging services provided
