Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Access Control | RFID Card, IC, ID Card, Barcode | Barrier Open Time | 0.2 S |
|---|---|---|---|
| Communication Interface | RS-232, RS485 | Operation Direction | 2-Way |
| Barrier Motor | Brushless Motor | Protection Level | IP54 |
| Housing Size | 1200*280*1000mm | Net Weight | 150KG |
| Material | 1.5-2mm, 304# Stainless Steel | Passing Speed | 30-40 Persons/min |
| Humidity | < 95%, Without Concretion | Temperature | -15 To 75 Degrees |
| Power Consumption | AC220V, 50Hz Or AC110V, 60Hz | Channel Width | 500-600mm |
| MCBF | 2,500,000 Cycle | ||
| Highlight | 0.2s Barrier Open/Close Time Security Turnstile Gate,RS-232 and RS485 Communication Interface Flap Barrier,2-Way Operation Direction Automatic Turnstile |
||
Product Description

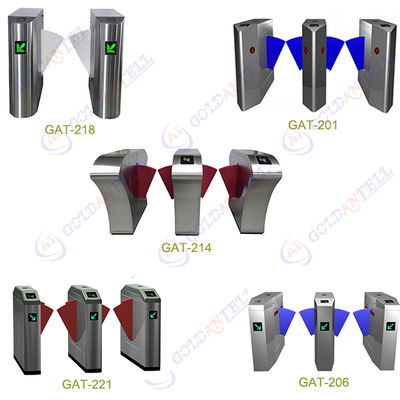

Security Passage Supermarket Entrance Intelligent Automatic Turnstile Electronic Gate Flap Barrier
Technology Specifications
| Power consumption | AC220V, 50Hz or AC110V, 60Hz (optional) |
| Housing Size | 1200*280*1000mm |
| Housing material | 1.5-2mm, 304# stainless steel, corrosion resistant |
| N.W. | 150KG |
| Drive motor | DC brushless motor |
| Channel width | 500--600mm |
| Pass speed | 30-40 persons/min |
| IP protection | IP54 |
| Input signal optional | DC12V/dry/contact/RS485/RS232/Remote |
| Railing-off against power off | Yes |
| Working environment temperature | -15°C to 75 °C |
| Working environments | indoor, outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2,500,000 cycle |
Flap Barrier Functions and Features
- Problem-self-checking function
- Multiple working modes including bi-directional card reading and photocell controlled passing
- Automatic arm opening during power failure and automatic holding when power returns
- Adjustable arm closing delay from 1-60 seconds
- Auto-reposition function cancels passing rights after timeout
- Alarm system for unauthorized passage attempts
- 485 interfaces for long-distance control
- Anti-rush function maintains arm position without open signal
- Dual anti-clipping protection (photocell and mechanical)
- Standard electrical interface for reader/writer integration
- Passenger counting with LED display
- Direction display for passenger guidance
- Card-reading with optional memory function
- Population control via software
- Quiet, stable operation
About Shenzhen Goldantell Technologies Co., Ltd
We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems.
We have exported to more than 50 countries and established long-term partnerships with clients worldwide.
Global Customer Base

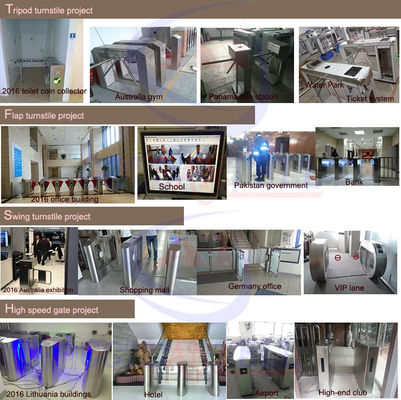

Our turnstiles have been sold to over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, and throughout Europe, Asia, Africa, and the Middle East.
Trade Terms
- 30-day valid offer
- Delivery within 7 days after payment
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Options
- Sea freight: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Our Services
- 24-hour response to inquiries
- English-speaking sales and support team
- OEM services including custom branding and packaging
- Expert engineering support
Pre-sale & After-sale Service
- Pre-sale consultation to understand your requirements
- Production updates with photos and testing videos
- Comprehensive installation and usage guidance
- Custom OEM/ODM solutions
- 16-hour response time for support
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin
Skype: goldantell02
Goldantell turnstiles - factory price, high quality, welcome your inquiry!
