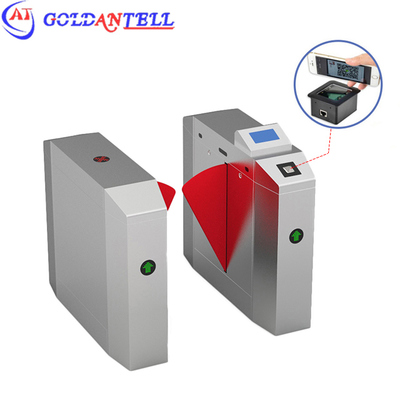

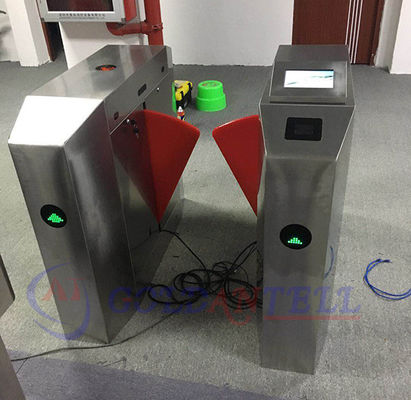

304 Stainless Steel Flap Turnstile with Brushed Motor and LED Light Color Optional for Attendance Record
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Barrier Open Time | 0.2 S | Communication Interface | RS-232, Rs485 |
|---|---|---|---|
| Operation Direction | 2-Way | Barrier Motor | Brushed Motor |
| Protection Level | IP54 | Power Supply | 110~240 Volt, 50/60 Hz |
| Working Temperature | -25℃ ~ +70℃ | Pass Speed | 40 Persons/min |
| Material | 304 Stainless Steel | Size | 1200*280*1000 Mm |
| Gross Weight | 65KG | Flap Opening Time | Within 1 Second |
| Drive Motor | DC 24v Bruch Motor | Passage Width | 60cm |
| Reset Time | Default 10s | ||
| Highlight | Brushed Motor Flap Turnstile,LED Light Color Optional Security Turnstile Gate,Attendance Record Access Control Turnstile |
||
Product Description
RFID Card Barcode Ticket or Wristband Control Attendance Record Turnstile with Software System SDK
Attendance Record Turnstile with Software System SDK or Barcode Ticket or RFID Card or Wristband Control
| Item NO. | GAT-206 |
|---|---|
| Cabinet dimension | 1200 (L) x 280 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap opening/closing time | within 1 second |
| Drive Motor | DC 24v bruch motor |
| Passage width | 60cm |
| Movement type | Single motor or dual-motor according to actual situation |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s, can be changed to fit different demands |
| Working environment | indoor/outdoor (with a tent over) -10℃~70℃ |
Flap Barrier Gate Features
1. LED Directional Sign
| Option | Description |
|---|---|
| a. without | b. with |
2. Top LCD Display Screen
| Option | Description |
|---|---|
| a. without | b. with |
3. Flap Wing Color Options
Packing & Shipping
Functions & Features
- Unique two-way anti-reverse function
- Programmable operating status via control board's built-in press plate
- Anti-rushing function - channel automatically locks without gate signal
- Power failure safety - channel automatically unlocks for fire safety compliance
- Automatic reset function (1-60S adjustable, default 10S)
- Compatible with access control, biometric, ticketing, and ESD test systems
- Supports unidirectional or bidirectional personnel control
- Remote management capability via computer
- LED indicator lights
- Customizable box length and design
- Adjustable normally open/closed settings
Hot-selling Models
Company Information
Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience.
Our main products include intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps and related security access control systems. We have exported to more than 50 countries and built long-term partnerships with clients worldwide.
FAQ
1. Can you do OEM service?
We offer comprehensive OEM services including custom designs for size, material, LED indicators, and retail packaging. We can create designs based on your specific requirements.
2. Is your turnstile compatible with different access control systems?
Yes, our turnstiles work with RFID cards, fingerprint scanners, QR/barcode systems, and ESD test control systems. We can also provide compatible access control software.
3. What is your warranty and after-sales service?
We provide 12-month quality guarantee with professional English-speaking support for sales and after-sales service.
4. What is your lead time?
Standard items: 5-15 working days depending on quantity. Custom items require 3-10 additional working days.
5. What payment terms do you accept?
We accept TT, Western Union, L/C, and participate in Trade Assurance for order security.
6. How do you ship products?
Samples ship by air (3-5 days). Bulk orders ship by sea (7-60 days depending on destination).
Why Choose Us
Our Pre-sale & After-sale Service
- Pre-sale: Detailed product consultation and requirements analysis
- On-purchase: Production updates with photos and testing videos
- After-sale: Installation guides, manuals, and instructional videos
- OEM/ODM: Custom logo, size, color, and design services
- Professional support: 16-hour response to inquiries
