Stainless Steel 304 ESD Turnstile Gate with 24 Months Warranty and 12002801000 mm Dimensions

Large Image : Stainless Steel 304 ESD Turnstile Gate with 24 Months Warranty and 1200*280*1000 mm Dimensions

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goldantell/OEM
Model Number:	GAT-303

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$239

Contact Now

Detailed Product Description

Material:	Stainless Steel 304	Dimension:	12002801000 Mm
Working Temperature:	-10℃~70℃	Type:	Three Arm Rotary Turnstile
Power Supply:	AC220/110±10%V; 50±10%HZ	Access Direction:	Single Or Bi-directional
Product Model:	GAT-303	Opening Time:	1-2 Second
Access Control:	ESD System, RFID +Fingerprint+password Or QR Code Or Coin Control	Output Signal:	Standard Relay Signal
Instrument Size:	166mmx96mmx40mm	Pedal Size:	400mmx450mmx20mm
Adjust Distance:	>120mm	Total Weight:	6.5kg
Test Accuracy:	±10-20%
Highlight:	Stainless Steel 304 ESD Turnstile Gate , 24 Months Warranty ESD Turnstile Gate , 12002801000 mm ESD Turnstile Gate

Factory ESD Turnstile Door and Bidirectional Access Control Tripod Barrier Gate

Standard Features

Quick ESD testing for three separate devices (left footwear, right footwear, and anti-static wrist strap)
Auto-open function when power is off (meets fire protection requirements)
Customizable working conditions via main control board
Configurable for single or bi-directional access

Turnstile Specifications

Product Model	GAT-303
Type	Three arm semi-auto
Product Size	1200(L)280(W)1000(H)mm (customizable)
Opening Time	1-2 seconds
Access Control System	ESD system, RFID + Fingerprint + Password or QR code or coin control, or manual
Material	304 stainless steel
Output Signal	Standard relay signal
Passing Direction	Bi-directional or single (adjustable)

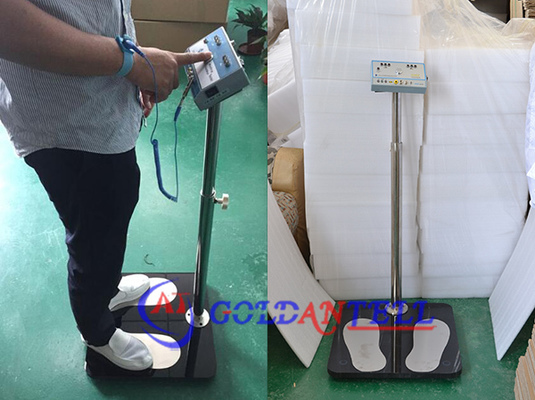

ESD Tester Specifications

Instrument Size	166mm(W) × 96mm(L) × 40mm(H)
Left Footwear Limit	750kΩ-100MΩ
Pedal Size	400mm(W) × 450mm(L) × 20mm(H)
Right Footwear Limit	750kΩ-100MΩ
Wrist Limit	750kΩ-10MΩ
Test Accuracy	±10-20%
Total Weight	6.5kg

ESD Turnstile Options

Option 1: With LCD Screen and Access Control Software

Option 2: Without LCD Screen and Software

Key Features & Functions

LCD display shows resistance ranges (footwear: 0.75MΩ-35.00MΩ, wrist band: 0.75MΩ-9.999MΩ)
Voice announcement and door opening signal when tests pass
Employee mode (with EM card) and guest mode options
Four ESD testing modes with different access requirements
Combined attendance, access control and ESD testing functionality

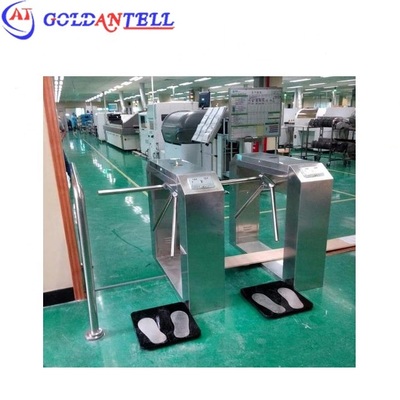

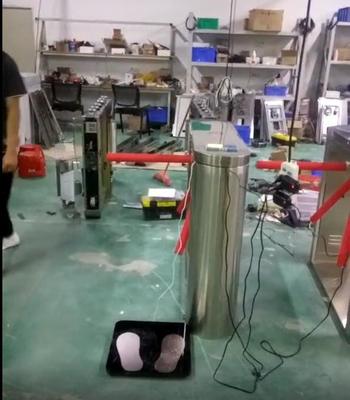

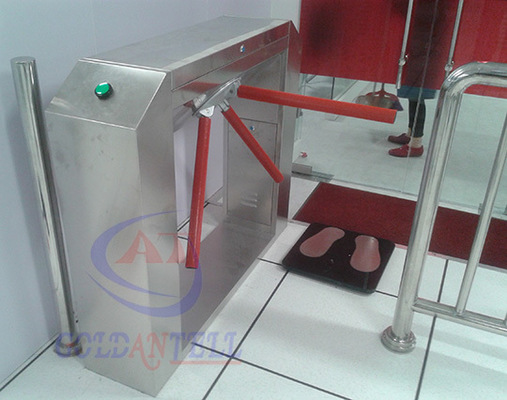

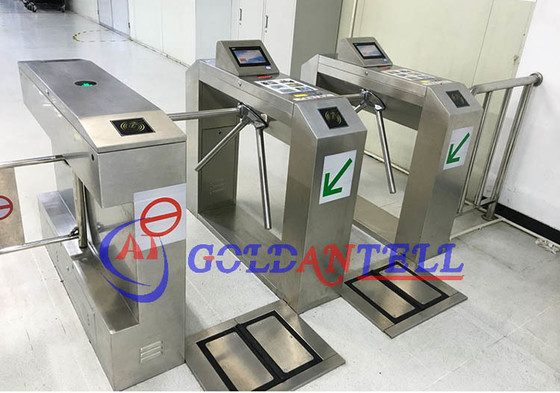

Application Projects

Our Services

Pre-sale: Product consultation, documentation, and customized solutions
On-purchase: Production updates with photos/videos for confirmation
After-sale: Installation support, warranty coverage, and technical assistance
OEM/ODM: Custom designs, logos, sizes, and packaging
Professional Support: 16-hour response time and complete system solutions
