IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate

Large Image : IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goldantell
Model Number:	GAT-660

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	$855-1,205

Contact Now

Detailed Product Description

Flow Rates:	35 Or 40 Persons Per Minute	Sliding Speed:	0.6 Second
Power Supply:	AC 100-240Volt	IP Rating:	IP54
Lane Width:	600mm (Max:900mm)	Dimension:	1200 300 1000 (mm)
Material:	304, 316 Stainless Steel	Wing Material:	Acrylic
Communication:	TCP/IP, RS485	Product Size:	14002001000mm
Direction:	Single Or Bi-directional (optional)	Reset Time:	10 Seconds
Running Life:	3 Million	Working Environment:	-10℃~70℃
Drive Motor:	DC24V Brush Motor
Highlight:	IP54 Rated Swing Barrier Gate , 0.6 Second Sliding Speed Swing Barrier Gate , 35-40 Persons/Minute Swing Barrier Gate

Fast Speed Lane Crowd Control Sliding Swing Turnstiles Gate

High-performance sliding swing turnstiles designed for efficient crowd control in various public and commercial spaces. Features rapid operation, durable construction, and flexible configuration options.

Applications

Public Spaces:

Lobby entries, Subways, Airports, Stations
Libraries, Bookstores, Parks, Exhibition halls
Stadiums, Museums, Apartments, Residential Areas
Offices, Commercial buildings

Entertainment Venues:

Movie theaters, Fitness centers, Country clubs
Fairgrounds, Clubs, Swimming pools, Gyms

Business Organizations:

Hotels, Factories, Banks, Prisons
Hospitals, Schools, Enterprise entrances

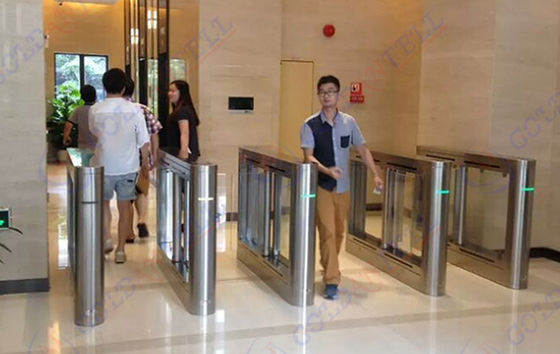

Application Examples

Single Lane Configuration

Multiple Lane Configuration (2, 3, 4 or more channels)

Technical Specifications

Product Model	GAT-660
Product Size	14002001000mm
Path Width	600mm or 900mm (per pair)
Direction	Single or bi-directional (optional)
Operation Speed	0.6 second opening/closing time
Passage Rate	40 persons/min (open), 25-30 persons/min (closed)
Reset Time	10 seconds after breakdown
Service Life	3 million cycles
Operating Environment	Indoor/outdoor (with cover) -10℃~70℃
Drive Motor	DC24V brush motor

Key Features

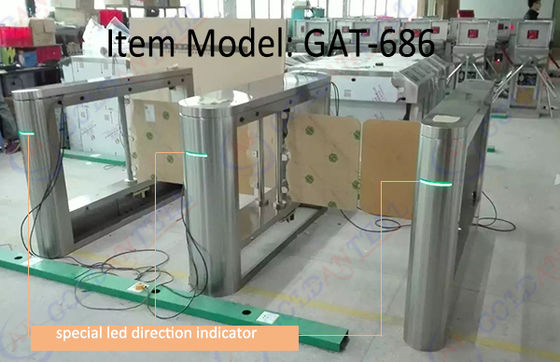

Directional LED optical signals (Green Arrow/RED Cross indicators)
Fault self-check and alarm functions for easy maintenance
Specially processed mechanism for enhanced durability
Always open or close modes with automatic retraction during fire alarms
Ensures rapid, efficient and safe access control
Compatible with various access systems (Magnetic card, Barcode, ID card, IC card)
Standard photo-electric beams for all models

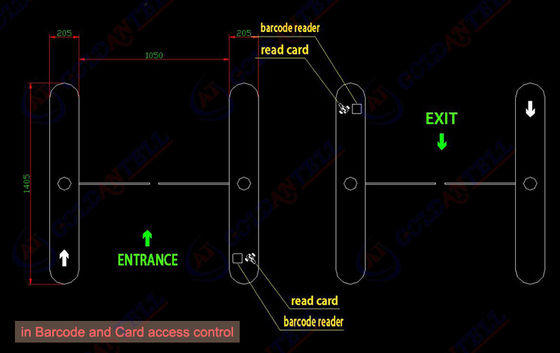

Product Dimensions

Product Classification

Vertical shape
Bridge shape (this model)
Pillar shape (tube type)
Single motor (for single/multiple passageways) or Double motors (for multiple passageways)

Professional Packaging
