High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Access Control Type | RFID Card, QR Code | Barrier Open Time | 0.2 S |
|---|---|---|---|
| Communication Interface | RS-232, TCP/IP, RS485 | Operation Direction | 2-Way |
| Barrier Motor | Brushless Motor | Material | Stainless Steel, 304, 316 Stainless Steel |
| Protection Level | IP54 | Sliding Speed | 0.6 Second |
| Power Supply | AC 100-240Volt | Lane Width | 60cm, 90cm (custom 90~120cm) |
| Flow Rate | 35-40 Persons Per Minute | Dimension | 1400 * 200 * 1000 Mm |
| Wing Material | Acrylic | Reset Time | 10 Seconds |
| Working Temperature | -10℃ ~ 70℃ | ||
| Highlight | 0.6s Sliding Speed Swing Turnstile Gate,IP54 Protection Access Control Turnstile,35-40 Persons/Minute Security Turnstile |
||
Product Description
2D Barcode Ticket System Gate with RFID Card Swipe Turnstile
Product Description
High-performance swing access control turnstile for marine parks and secure facilities, compatible with 2D barcode tickets, QR codes, and RFID card systems.
Applications
Access Width: Within 900mm space for comfortable pedestrian passage
- Public Places: Lobby entries, subways, airports, stations, libraries, parks, exhibition halls, stadiums, museums, apartments, offices, and commercial buildings
- Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, clubs, swimming pools, and gyms
- Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrance/exit attendance systems
Technical Specifications
| Type | High speed gate & full automatic Swing Turnstile |
|---|---|
| Product Model | GAT-686 |
| Product Size | 1400×200×1000mm |
| Path width | Within 900mm (for one pair) |
| Direction | Single or bi-directional (optional) |
| Time of opening/closing | 0.6 second |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | 10 seconds |
| Normal running life | 3 million cycles |
| Working environment | Indoor/outdoor (with shelter) -10℃~70℃ |
| Drive motor | DC24V brush motor |
Key Features
- Self-diagnostic and alarm functions for easy maintenance
- Programmable operation status via control board
- Anti-pinch safety protection
- Visual and audible alarms for unauthorized access
- Automatic locking until receiving opening signal
- Adjustable door synchronization
- Automatic reset function with adjustable timing
- Optional LCD information display
- Audible operation prompts
Construction & Materials
- 304 stainless steel construction
- IP54 waterproof rating
- Elegant, anti-rust design
- CE Certified
- Fail-safe operation (opens when power is off)
- Compatible with multiple access control systems (RFID, fingerprint, QR/barcode, ESD)
Customization Options

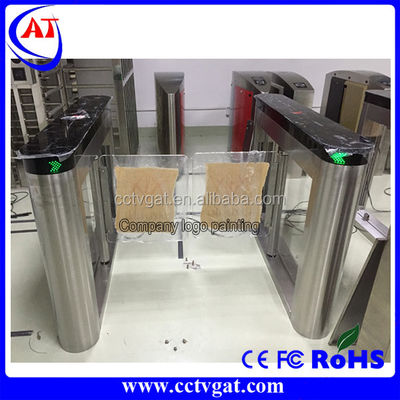

- Company logo printing
- Custom dimensions and shapes
- Optional LED indicators and LCD displays
- Special color configurations
Company Information
Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer of intelligent turnstiles and parking management systems with over 8 years of industry experience. Our products are exported to more than 50 countries worldwide.
